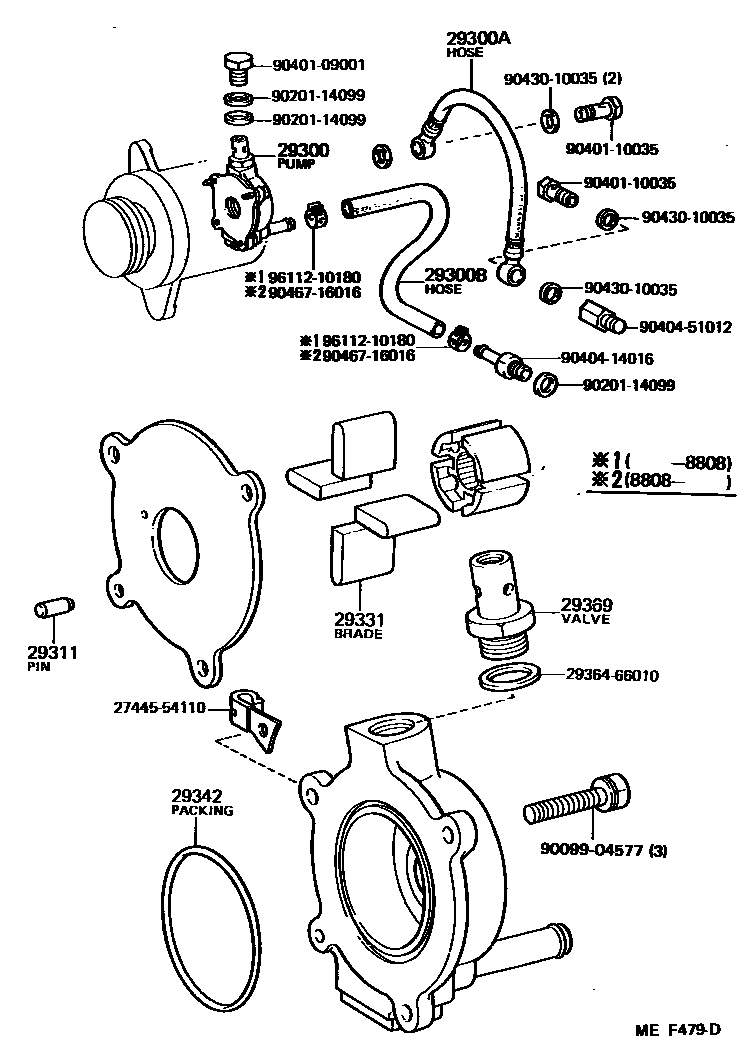

VACUUM PUMP

0001 1 0002 1 0004 1

29300PUMP ASSY, VACUUM

main29300-54050i2L#..LJ7#198411-199001

main29300-56070i13BT,3B..BJ7#198411-199001

main29300-58050i3B..BJ70,73,75198808-199001

sub29300-58060

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072i13BT..BJ71198411-199001

main90923-02077i2L..LJ70198411-198510

main90923-02096i2LT..LJ7#198510-199001

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2LT..LJ7#198808-199001

main90923-02073i3B..BJ70,73,75198411-198808

sub90923-02068

main90923-02076i2L#..LJ7#198411-198808

main90923-02081i13BT..BJ71198510-199001

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i13BT,3B,2L#..BJ7#,LJ7#198411-198708

main90099-08082i13BT,3B,2LT..BJ7#,LJ7#198708-199001

sub29311-76010

29331BLADE, VACUUM PUMP, A

main29331-56070i13BT,2LT..BJ71,LJ7#198411-199001

main29331-58050i3B..BJ70,73,75198808-199001

29342PACKING, VACUUM PUMP

main29342-58010i3B..BJ70,73,75198808-199001

NO.1

main29342-58020i3B..BJ70,73,75198808-199001

NO.2

main29342-58050i3B..BJ70,73,75198808-199001

NO.3

main96740-02063i2LT..LJ7#198411-199001

29369VALVE SUB-ASSY, CHECK

main29369-56070i13BT,3B,2L#..BJ7#,LJ7#198411-199001

main29369-64030i3B..BJ70,73,75198808-199001

2744554110

main27445-54110

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110035

main90401-10035

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9611210180

main96112-10180

18 parts on this diagram · 3 diagrams in section
