ALTERNATOR

0001 1 0002 1 0003 112V 60A 0004 1 0005 1 0007 1 0008 112V 45A 0009 124V 30A 0010 1

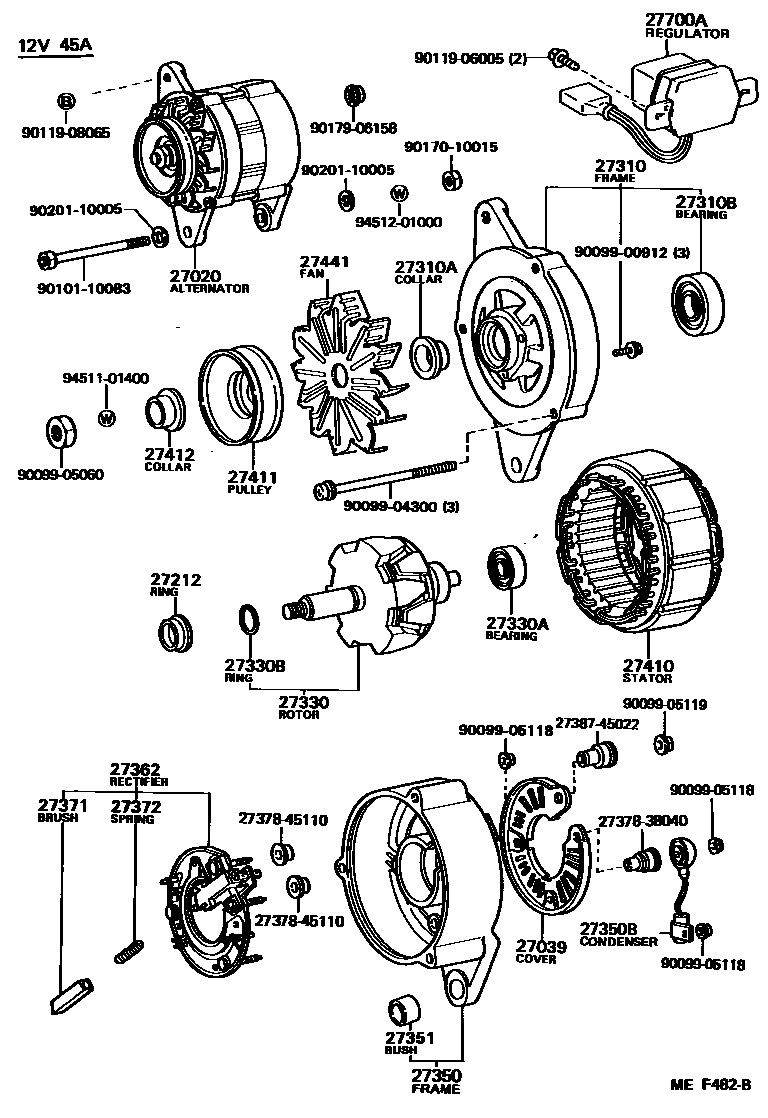

27020ALTERNATOR ASSY

main27020-34051i22R..RJ70198608-199001

12V 50A,12V 50A

sub27020-34021

main27020-38120i22R..RJ7#198411-198608

12V 45A,12V 45A

main27020-54190i2L..LJ70198411-198510

12V 40A,12V 40A

sub27020-54200

main27020-54210i2L..LJ70..HT198411-199001

12V 50A,12V 50A

sub27020-54160

main27020-56110i3B..BJ70,73,75..LX,STD198411-198808

24V 25A,24V 25A

sub27020-56230

main27020-56180i3B..BJ70,73,75..LX,STD198411-198808

24V 25A,24V 25A,W/PS

sub27020-56320

main27020-56240i3B..BJ73..VM198510-199001

12V 55A,12V 55A

main27020-56270i3B..BJ73..STD198411-198608

12V 45A

main27020-56280i3B..BJ73..LX,STD198411-198808

12V 45A,12V 45A,W/PS

main27020-56310i13BT..BJ71198510-199001

24V 30A,24V 30A

main27020-56320i13BT..BJ71198510-199001

24V 30A,24V 30A,W/PS

main27060-35110i22RE..RJ7#198812-199001

12V 60A,12V 60A

main27060-58070i3B..BJ73..LX,STD198808-199001

12V 45A,12V 45A

main27060-58090i3B..BJ70,73,75..LX,STD198808-199001

24V 30A,24V 30A

sub27060-58020

27039COVER, ALTERNATOR REAR END

main27039-18011i22R..RJ7#198411-198608

12V 45A

main27039-45110i22R..RJ70198608-199001

12V 50A

sub27039-34022

main27039-72010i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

sub27039-15170

main27039-72010i22RE..RJ7#198812-199001

12V 60A

sub27039-15170

main27039-72150i3B..BJ73..LX,STD198808-199001

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i22R..RJ7#198411-198608

12V 45A

main27333-57060i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

main27333-57060i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

main27412-15150i22R..RJ70198608-199001

12V 50A

main27412-35100i22RE..RJ7#198812-199001

12V 60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i22R..RJ7#198411-198608

12V 45A

main27310-34050i22R..RJ70198608-199001

12V 50A

main27310-35061i22RE..RJ7#198812-198906

12V 60A

sub27310-35120

main27310-35120i22RE..RJ7#198906-199001

12V 60A

main27310-54110i2L..LJ70198411-198510

12V 40A

sub27310-54111

main27310-54130i2L#..LJ7#198411-199001

12V 50A

sub27310-54131

main27310-56110i13BT,3B..BJ7#..LX,STD198411-198808

24V 25A,30A

main27310-56110i13BT..BJ71198808-199001

24V 30A

main27310-56140i3B..BJ73..STD198411-198608

12V 45A

main27310-56160i3B..BJ73..LX,STD198411-198808

12V 45A,W/PS

main27310-56180i13BT..BJ71198808-199001

12V 55A

main27310-56180i13BT,3B..BJ7#198411-198808

12V 55A,24V 25A,30A,W/PS

main27310-56180i3B..BJ73..VM198808-199001

24V 30A,W/PS

main27310-58040i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

main27310-72150i3B..BJ73..LX,STD198808-199001

12V 45A

sub27310-72151

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i22R..RJ7#198411-199001

12V 45A,50A

main27412-57060i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

main27412-57060i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i22R..RJ70198608-199001

12V 50A

main90099-10126i22R..RJ7#198411-198608

12V 45A

sub90099-10125

main90099-10137i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

main90099-10137i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

main90099-10159i22RE..RJ7#198812-199001

12V 60A

sub90099-10199

main90099-10170i3B..BJ73..LX,STD198808-199001

12V 45A

sub90099-10198

main90099-10178i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

27330ROTOR ASSY, ALTERNATOR

main27330-16030i22R..RJ70198608-199001

12V 50A

main27330-45020i22R..RJ7#198411-198608

12V 45A

main27330-54200i3B..BJ73..LX,STD198411-198808

12V 45A

main27330-56110i13BT,3B..BJ7#..LX,STD198411-198808

24V 25A,30A

main27330-56110i13BT..BJ71198808-199001

24V 30A

main27330-56140i2L..LJ70198411-198510

12V 40A

sub27330-54200

main27330-58040i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

main27330-64010i2L..LJ70..HT198411-199001

12V 50A

main27330-64030i3B..BJ73..VM198510-199001

12V 55A

sub27330-54180

main27330-72101i22RE..RJ7#198812-199001

12V 60A

main27330-72150i3B..BJ73..LX,STD198808-199001

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i22R..RJ7#198411-198608

12V 45A

sub90099-10116

main90099-10116i22R..RJ70198608-199001

12V 50A

main90099-10140i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

main90099-10140i22RE..RJ7#198812-199001

12V 60A

main90099-10154i3B..BJ73..LX,STD198808-199001

12V 45A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i22R..RJ7#198411-198608

12V 45A

main90099-07103i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

main90099-07103i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L#..LJ7#198411-199001

12V 50A

main27350-54190i2L..LJ70198411-198510

12V 40A

main27350-56110i13BT..BJ71198808-199001

24V 30A

main27350-56110i13BT,3B..BJ7#198411-198808

12V 55A,24V 25A,30A

main27350-56140i3B..BJ73..LX,STD198411-198808

12V 45A

main27359-13050i22R..RJ7#198411-198608

12V 45A

main27359-24100i22R..RJ70198608-199001

12V 50A

27350BCONDENSER, ALTERNATOR

main90099-52065i22R..RJ7#198411-199001

12V 45A,50A

sub90099-52034

main90099-52066i13BT,3B..BJ7#198411-198804

12V 55A,24V 25A,30A

sub90099-52035

main90099-52066i3B..BJ73..VM198804-199001

12V 55A

sub90099-52035

main90099-52082i3B..BJ73..LX,STD198709-198804

12V 45A

main90099-52082i3B,2L#..BJ73,LJ7#..LX,STD198411-198709

12V 40A,45A,50A

main90099-52099i3B..BJ70,73,75..LX,STD198808-199001

12V 45A,24V 30A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i22R..RJ7#198411-199001

12V 45A,50A

main27351-56013i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

main27351-56013i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i22R..RJ70198608-199001

12V 50A

sub27362-63011

main27362-18011i22R..RJ7#198411-198608

12V 45A

27371BRUSH, ALTERNATOR

main27371-31011i22R..RJ7#198411-199001

12V 45A,50A

main27371-56070i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

sub27371-54412

main27371-56070i3B..BJ73..VM198808-199001

12V 55A

sub27371-54412

main27371-56070i3B..BJ73..VM198808-199001

12V 50A,24V 30A

sub27371-54412

main27371-63020i3B..BJ70,73,75..LX,STD198808-199001

12V 45A,24V 30A

sub27371-70300

main27371-63020i22RE..RJ7#198812-199001

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i22R..RJ7#198411-199001

12V 45A,50A

main27372-56070i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

main27372-56070i3B..BJ73..VM198808-199001

12V 55A

main27372-56070i3B..BJ73..VM198808-199001

12V 50A,24V 30A

main27372-72100i22RE..RJ7#198812-199001

12V 60A

sub27372-63020

main27372-72100i3B..BJ70,73,75..LX,STD198808-199001

12V 45A,24V 30A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-38120i22R..RJ7#198411-198608

12V 45A

main27410-41080i22R..RJ70198411-199001

12V 50A

main27410-54190i2L..LJ70198411-198510

12V 40A

sub27410-54340

main27410-56110i3B..BJ70,73,75..LX,STD198411-198808

24V 25A

main27410-56310i13BT..BJ71198510-199001

12V 30A

main27410-57070i3B..BJ73..VM198510-199001

12V 55A

main27410-64090i3B..BJ73..LX,STD198411-198808

12V 45A

sub27410-54380

27411PULLEY, ALTERNATOR

main27411-31042i22R..RJ7#198411-199001

12V 45A,50A

main27411-35062i22RE..RJ7#198812-199001

12V 60A

main27411-54170i2L#..LJ7#198411-199001

12V 40A,50A

sub27411-54171

main27411-57060i13BT..BJ71198808-199001

12V 55A

main27411-57060i13BT,3B..BJ7#198411-198808

12V 45A,55A,24V 25A,30A

main27411-57060i3B..BJ73..VM198808-199001

12V 30A

main27411-58040i3B..BJ70,73,75..LX,STD198808-199001

24V 30A

main27411-58060i3B..BJ73..LX,STD198808-199001

12V 45A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i22R..RJ7#198411-199001

12V 45A,50A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i22R..RJ7#198411-199001

12V 45A,50A

main27441-56090i13BT,2LT..BJ71,LJ7#198808-199001

12V 50A,24V 30A

main27441-56090i13BT,3B,2L#..BJ7#,LJ7#198411-198808

12V40A,45A,50A,55A,24V25A,30A

27700AREGULATOR ASSY, GENERATOR

main27700-15030i22R,3B,2L#..BJ73,LJ7#,RJ7#..LX,STD,VX198411-199001

12V

sub27700-15040

main27700-57060i3B..BJ73..VM198510-198708

sub27700-64030

sub90099-05118

main27700-57080i13BT,3B..BJ7#..LX,STD198411-199001

24V

main27700-58020i3B..BJ70,73,75..LX,STD198808-199001

24V

main27700-58030i3B..BJ73..LX,STD198808-199001

12V

sub27700-66010

main27700-63021i22RE..RJ7#198812-198901

12V 60A

sub27700-70030

main27700-64030i3B..BJ73..VM198708-199001

main27700-70030i22RE..RJ7#198901-199001

12V 60A

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845110INSULATOR, ALTERNATOR, NO.1

main27378-45110

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9011906005

main90119-06005

9011908065

main90119-08065

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9451101400

main94511-01400

9451201000

main94512-01000
