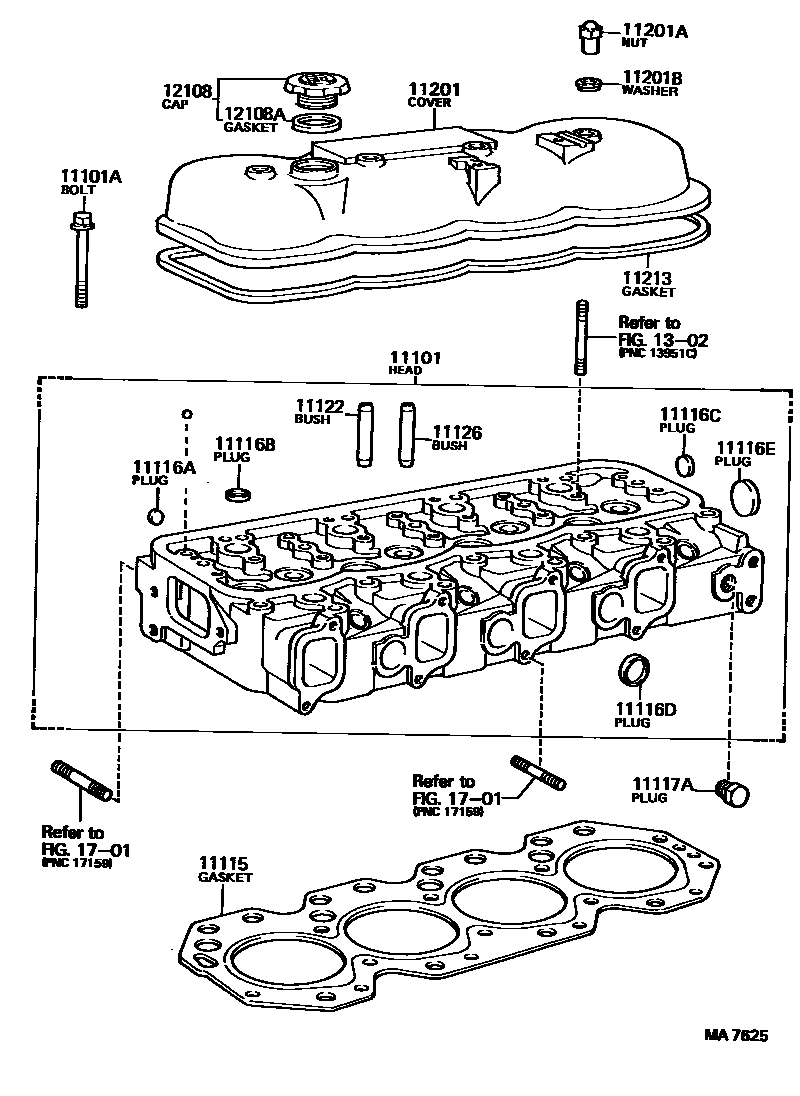

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX119-25
*12-1.25PX119-25
*12-1.25PX122.5-60
*12-1.25PX112-24
11116APLUG, TIGHT, NO.1
OD=12
OD=25
11116BPLUG, TIGHT, NO.2
OD=12
OD=25
11116CPLUG, TIGHT, NO.3
OD=21
OD=50
11116DPLUG, TIGHT, NO.4
OD=28
11116EPLUG, TIGHT, NO.5
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
OD=32
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-35031
sub11201-35032
sub11201-54080
sub11201-56101
sub11201-54090
12108AGASKET(FOR OIL FILLER CAP)
1302
1701
19 parts on this diagram · 5 diagrams in section
