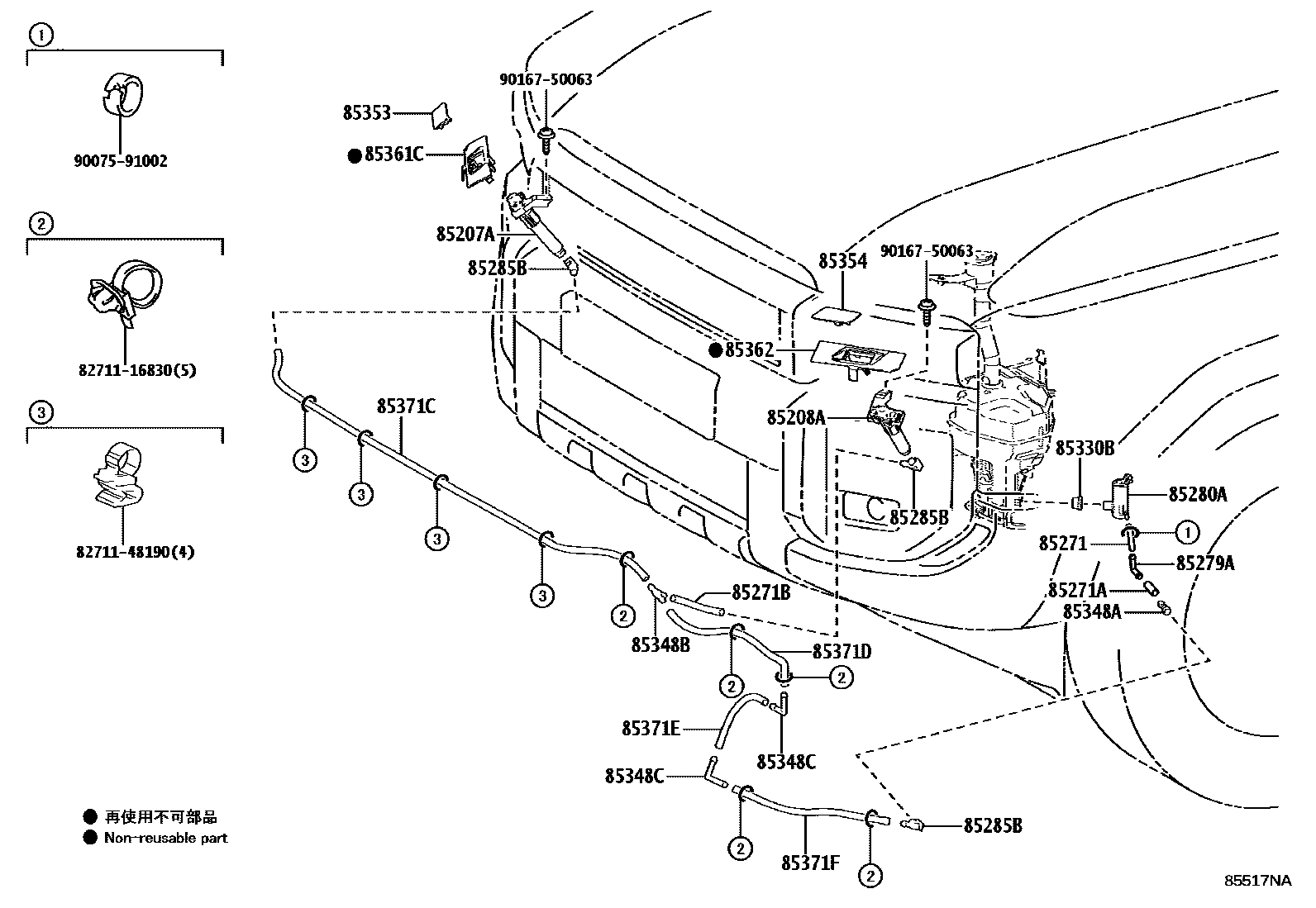

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-60190iGDJ250,TJA250..L..GEN202404

HEADLAMP CLEANER-WITHOUT

main85207-60190iGDJ250..RHD..L..EUR202404-202509

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-60190iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

main85208-60190iGDJ250..RHD..L..EUR202404-202509

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15059iGDJ250..RHD..L..EUR202404-202509

L=80

main90075-15059iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=80,COLD AREA SPEC

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15053iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=35,COLD AREA SPEC

main90075-15053iGDJ250..RHD..L..EUR202404-202509

L=35

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15054iGDJ250..RHD..L..EUR202404-202509

L=120

main90075-15054iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=120,HEADLAMP CLEANER-WITHOUT

85279AJOINT, HEADLAMP CLEANER HOSE

main90075-17021iGDJ250..RHD..L..EUR202404-202509

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010iGDJ250..RHD..L..EUR202404-202509

main85280-47010iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

85285BJOINT, HEADLAMP CLEANER NOZZLE NO.1

main90075-17009iGDJ250..RHD..L..EUR202404-202509

main90075-17009iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGDJ250..RHD..L..EUR202404-202509

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iGDJ250..RHD..L..EUR202404-202509

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17020iGDJ250..RHD..L..EUR202404-202509

main90075-17020iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main90075-17021iGDJ250..RHD..L..EUR202404-202509

main90075-17021iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

85353COVER, HEADLAMP WASHER, RH

main85353-60140iGDJ251..U202408

main85353-60150-A0iGDJ251..A,R202408

SUPER WHITE 2,040

main85353-60150-A1iGDJ250,TJA250..L..GEN202404-202509

PLATINUM WHITE PEARL MC.,089

main85353-60150-A1iGDJ250,TJA250..L..GEN202404

HEADLAMP CLEANER-WITHOUT,PLATINUM WHITE PEARL MC.,089

main85353-60150-B0iGDJ251..A,R202408

DK.GRAY,1L7

main85353-60150-C0iGDJ251..A,R202408

BLACK,202

main85353-60150-C1iGDJ251..A,L,R;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404-202509

ATTITUDE BLACK MC.,218

main85353-60150-C1iGDJ251..A,L,R;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT,ATTITUDE BLACK MC.,218

main85353-60150-E0iGDJ250,TJA250..L..GEN202404

HEADLAMP CLEANER-WITHOUT,AVANT-GARDE BRONZE ME.,4V8

main85353-60150-E0iGDJ250..RHD..L..EUR202404-202509

AVANT-GARDE BRONZE ME.,4V8

main85353-60150-F0iGDJ251..A202408

SAND,2ZC ,5C8

main85353-60150-J0iGDJ251..A202408

SMOKY BLUE,2ZD ,8X0

85354COVER, HEADLAMP WASHER, LH

main85354-60140iGDJ251..U202408

main85354-60150-A0iGDJ251..A,R202408

SUPER WHITE 2,040

main85354-60150-A1iGDJ251..A,L,R;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT,PLATINUM WHITE PEARL MC.,089

main85354-60150-A1iGDJ250,TJA250..L..GEN202404-202509

PLATINUM WHITE PEARL MC.,089

main85354-60150-B0iGDJ251..A,R202408

DK.GRAY,1L7

main85354-60150-C0iGDJ251..A,R202408

BLACK,202

main85354-60150-C1iGDJ250,TJA250..L..GEN202404-202509

ATTITUDE BLACK MC.,218

main85354-60150-C1iGDJ251..A,L,R;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT,ATTITUDE BLACK MC.,218

main85354-60150-E0iGDJ250,TJA250..L..GEN202404

HEADLAMP CLEANER-WITHOUT,AVANT-GARDE BRONZE ME.,4V8

main85354-60150-E0iGDJ250,TJA250..L..GEN202404-202509

AVANT-GARDE BRONZE ME.,4V8

main85354-60150-F0iGDJ251..A202408

SAND,2ZC ,5C8

main85354-60150-J0iGDJ251..A202408

SMOKY BLUE,2ZD ,8X0

85361CBRACKET, WASHER

main85361-60240iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

main85361-60240iGDJ250..RHD..L..EUR202404-202509

85362BRACKET, WASHER, NO.2

main85362-60240iGDJ250..RHD..L..EUR202404-202509

main85362-60240iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

HEADLAMP CLEANER-WITHOUT

85371CHOSE, HEADLAMP CLEANER, NO.1

main90075-15111iGDJ250..RHD..L..EUR202404-202509

L=1200

main90075-15111iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=1200,HEADLAMP CLEANER-WITHOUT

85371DHOSE, HEADLAMP CLEANER, NO.2

main90075-15076iGDJ250..RHD..L..EUR202404-202509

L=260

main90075-15076iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=260,HEADLAMP CLEANER-WITHOUT

85371EHOSE, HEADLAMP CLEANER, NO.3

main90075-15094iGDJ250..RHD..L..EUR202404-202509

L=180

main90075-15094iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=180,HEADLAMP CLEANER-WITHOUT

85371FHOSE, HEADLAMP CLEANER, NO.4

main90075-15098iGDJ250..RHD..L..EUR202404-202509

L=260

main90075-15098iGDJ251;GDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404

L=260,HEADLAMP CLEANER-WITHOUT

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8271148190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48190

9007591002

main90075-91002

9016750063

main90167-50063

24 parts on this diagram · 1 diagram in section
