REAR WASHER
8503
85348SJOINT, REAR WASHER ELBOW, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-PRE-WIRE
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
COLD AREA SPEC&BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PERIPHERAL MONITORCAMERA-PRE-WIRE
COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
BACK DOOR-HATCH DOOR TYPE
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
COLD AREA SPEC
COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
85349KJOINT, REAR WASHER ELBOW, NO.2
85360RBRACKET ASSY, REAR WASHER
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150),COLD AREA SPEC&HEADLAMP CLEANER-WITH
L=1450(*H,L=150)
L=1450(*H,L=150),HEADLAMP CLEANER-WITH
L=1450(*H,L=150),COLD AREA SPEC
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=200)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=716
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=180)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3200(*H,L=2900)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=2000(*H,L=1260),WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW
L=2000(*H,L=1260)
L=430,BACK DOOR-HATCH DOOR TYPE
L=430,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
L=430,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=430,BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
L=430,PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=430,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=430
L=430,COLD AREA SPEC&BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=430,COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=430,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=420
L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
L=630,PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
L=630
L=630,COLD AREA SPEC
L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
L=630,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
L=630,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=630,BACK DOOR-WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
L=630,PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO)
L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)
L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITHOUT
L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
85389CPROTECTOR, WASHER

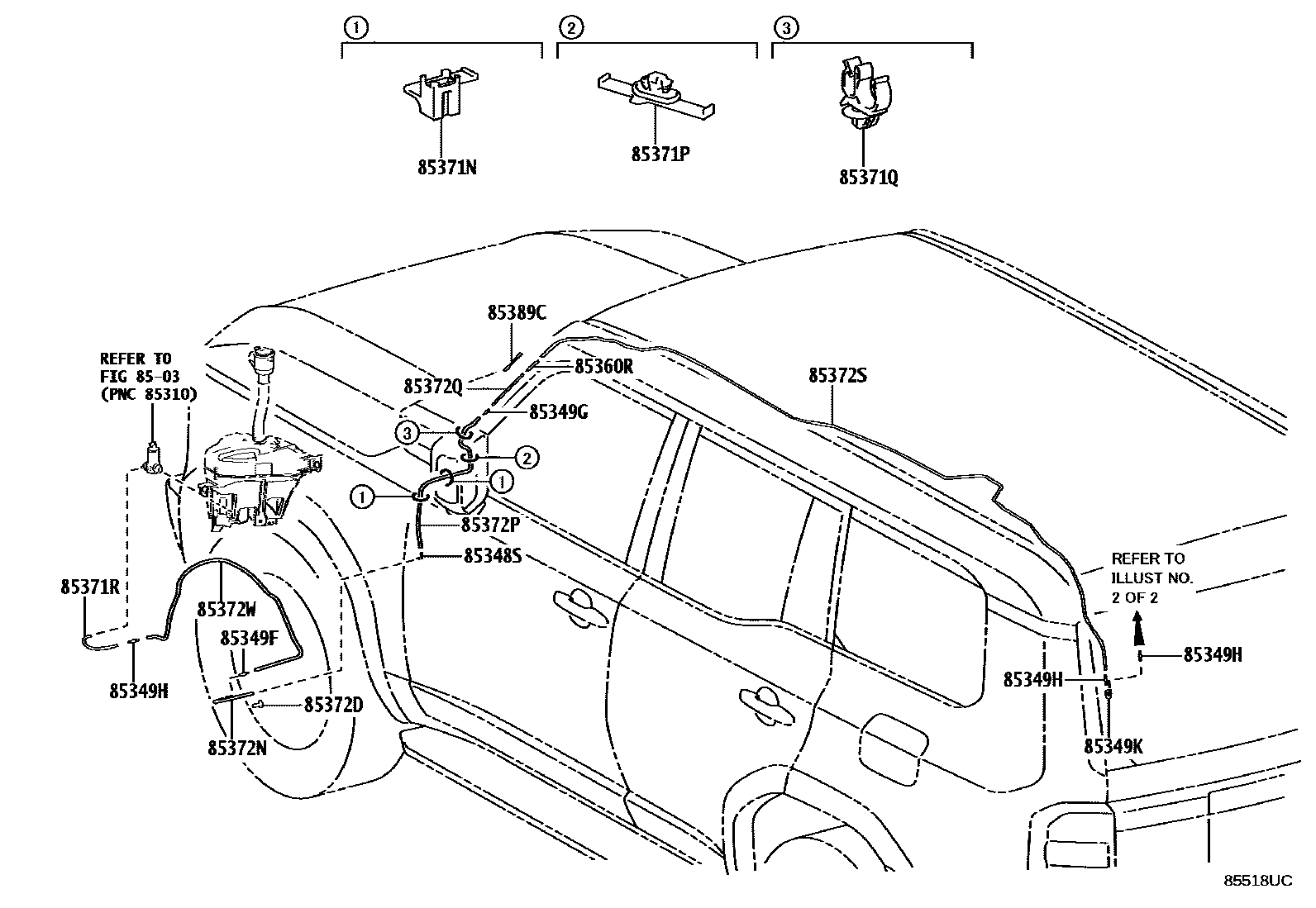

18 parts on this diagram · 3 diagrams in section
