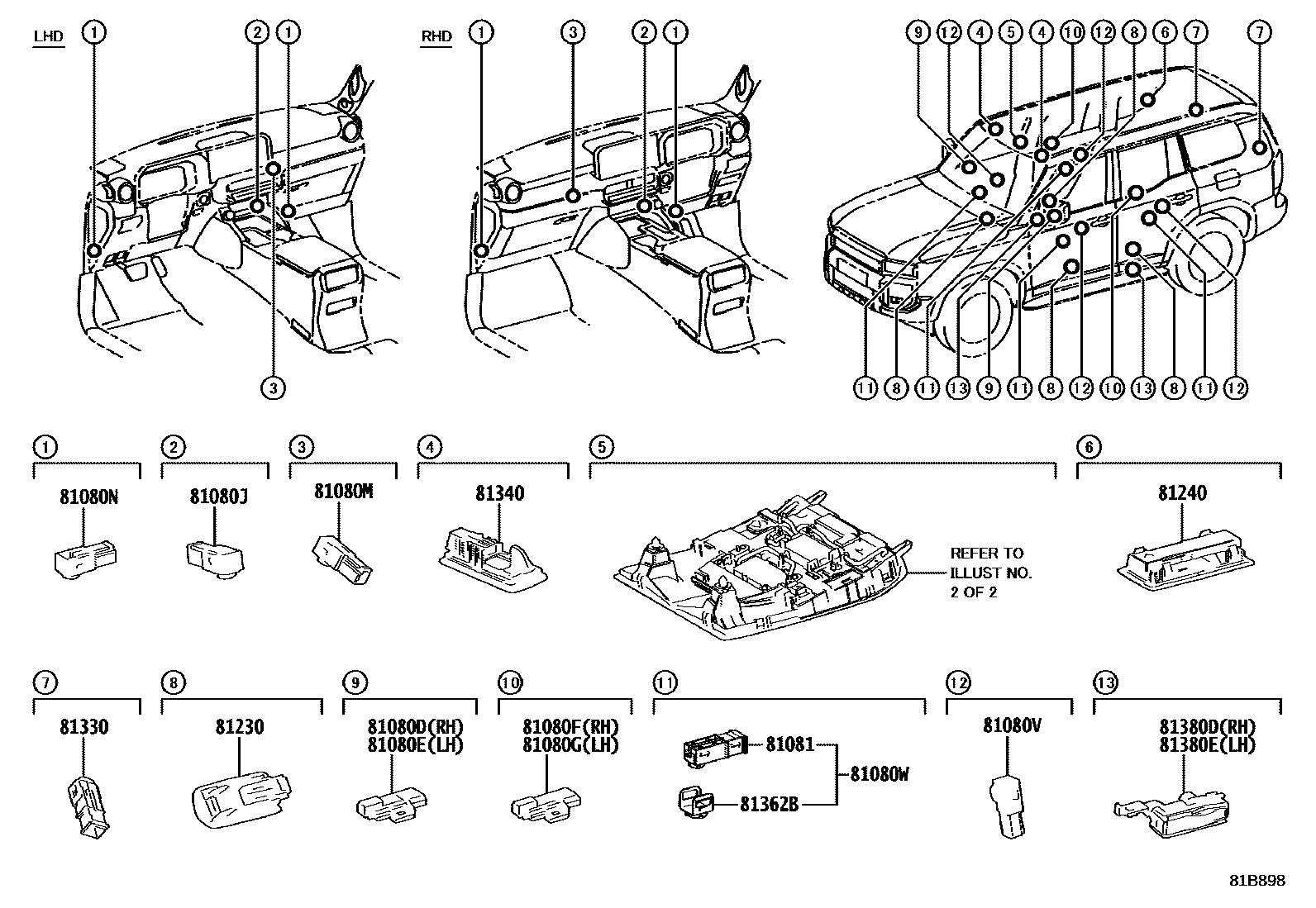

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
MIDDLE GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
HIGH GRADE PACKAGE FOR AR
HIGH GRADE PACKAGE FOR AR&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
HIGH GRADE PACKAGE FOR AR&NAVI READY PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
HIGH GRADE PACKAGE FOR ADV
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
HIGH GRADE PACKAGE FOR ADV&&REAR AIR CONDITIONER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL)
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
HIGH GRADE PACKAGE FOR ADV&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
HIGH GRADE PACKAGE FOR ADV&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL)
main81080-60460iGDJ251;TJA250..(A,L)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA);GDJ250..LHD..A..(EUR,GEN,RUS)¥2,930202401
AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
MIDDLE GRADE PACKAGE FOR AR
HIGH GRADE PACKAGE FOR AR
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81230LAMP ASSY, COURTESY
81240LAMP ASSY, ROOM, NO.1
FROMAGE,TRIM1#,40
main81240-28090-A0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA)202401-202509
FROMAGE,TRIM1#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,41
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81362BLENS, INTERIOR ILLUMINATION LAMP
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
17 parts on this diagram · 2 diagrams in section
