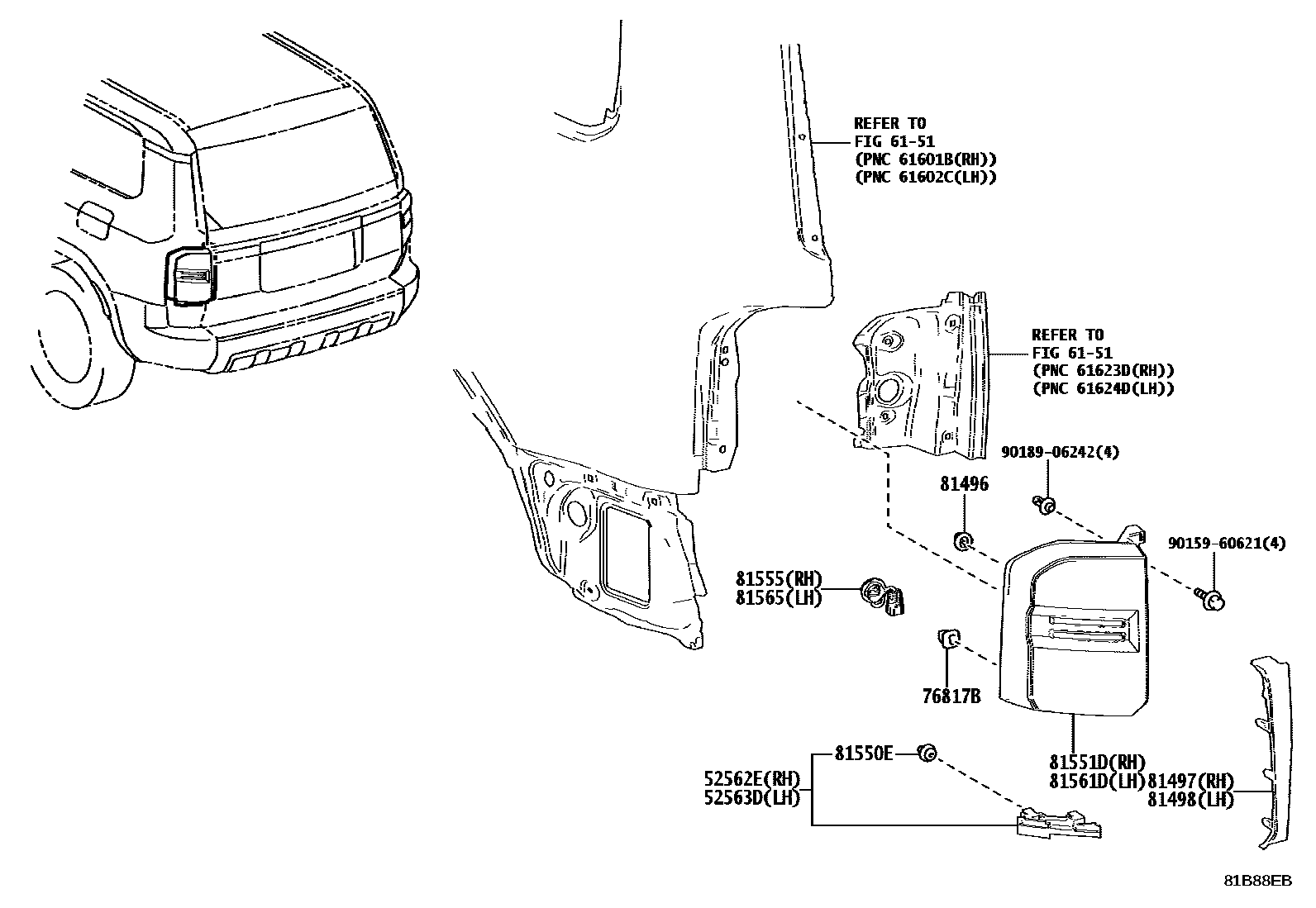

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60140iGDJ250..RHD..EUR202401-202509

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60140iGDJ250..RHD..EUR202401-202509

6151

76817BCLIP, REAR LAMP

main76817-26040iGDJ250..RHD..EUR202401-202509

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGDJ250..RHD..EUR202401-202509

81497COVER, REAR COMBINATION LAMP, RH

main81497-60060iGDJ250..RHD..EUR202401-202509

81498COVER, REAR COMBINATION LAMP, LH

main81498-60060iGDJ250..RHD..EUR202401-202509

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09203iGDJ250..RHD..EUR202401-202509

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60D00iGDJ250..RHD..EUR202401-202509

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60D00iGDJ250..RHD..EUR202401-202509

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60D70iGDJ250..RHD..EUR202401-202509

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60D00iGDJ250..RHD..EUR202401-202509

9015960621

main90159-60621

9018906242

main90189-06242

14 parts on this diagram · 1 diagram in section
