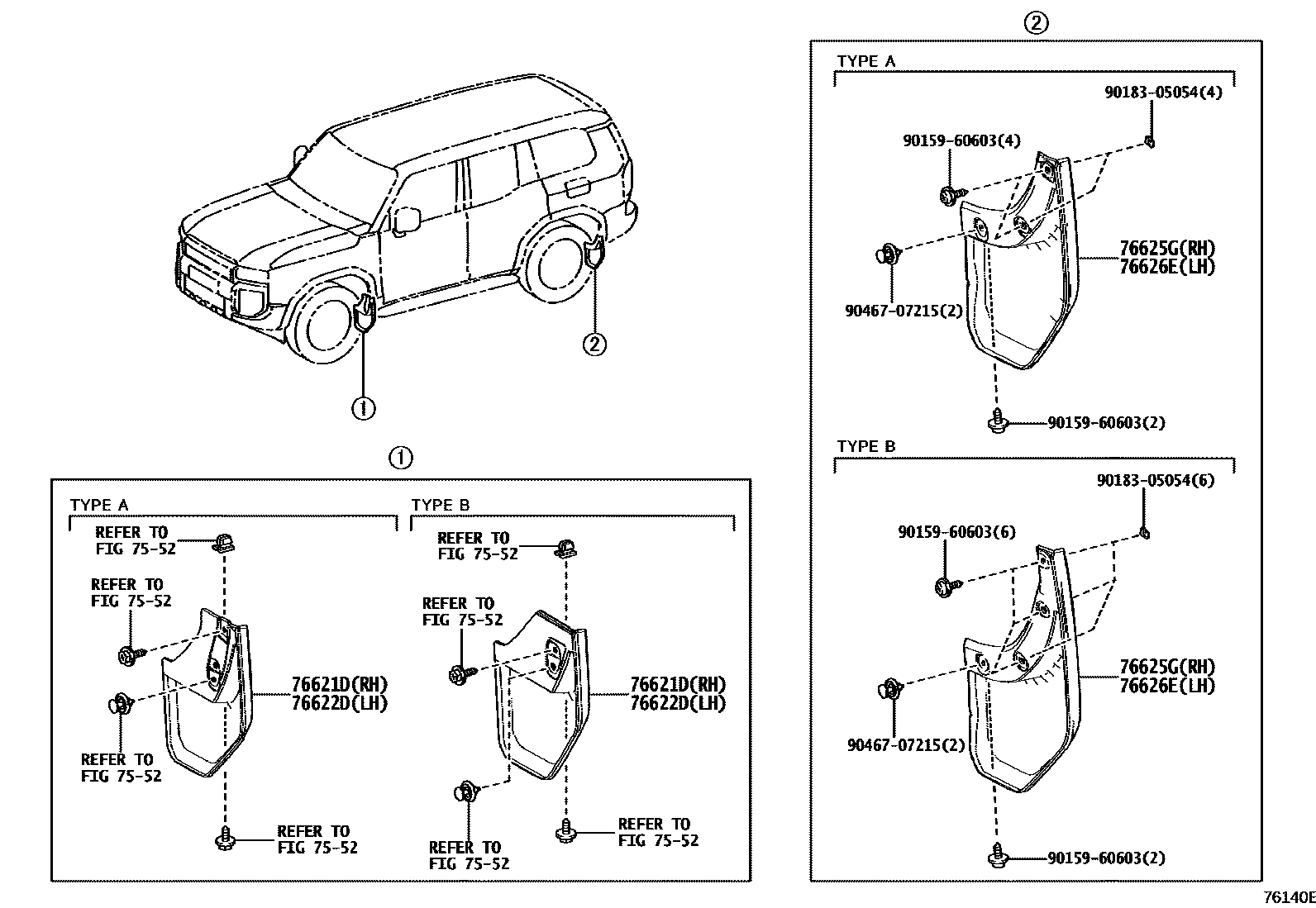

SPOILER & SIDE MUDGUARD
7552
76621DMUDGUARD, FRONT FENDER, RH
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR,TYPE A:REFER ILLUST.
MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR&MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE B:REFER ILLUST.
MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE B:REFER ILLUST.
76622DMUDGUARD, FRONT FENDER, LH
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR,TYPE A:REFER ILLUST.
MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR&MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE B:REFER ILLUST.
MUD GUARD-WITHOUT,ACCESSORY MUD GUARD,TYPE B:REFER ILLUST.
76625GMUDGUARD, QUARTER PANEL, REAR RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR,TYPE B:REFER ILLUST.
76626EMUDGUARD, QUARTER PANEL, REAR LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-265/65R18, 7.5J, ALUMINUM, AR,TYPE B:REFER ILLUST.
9015960603
9018305054
9046707215
8 parts on this diagram · 2 diagrams in section
