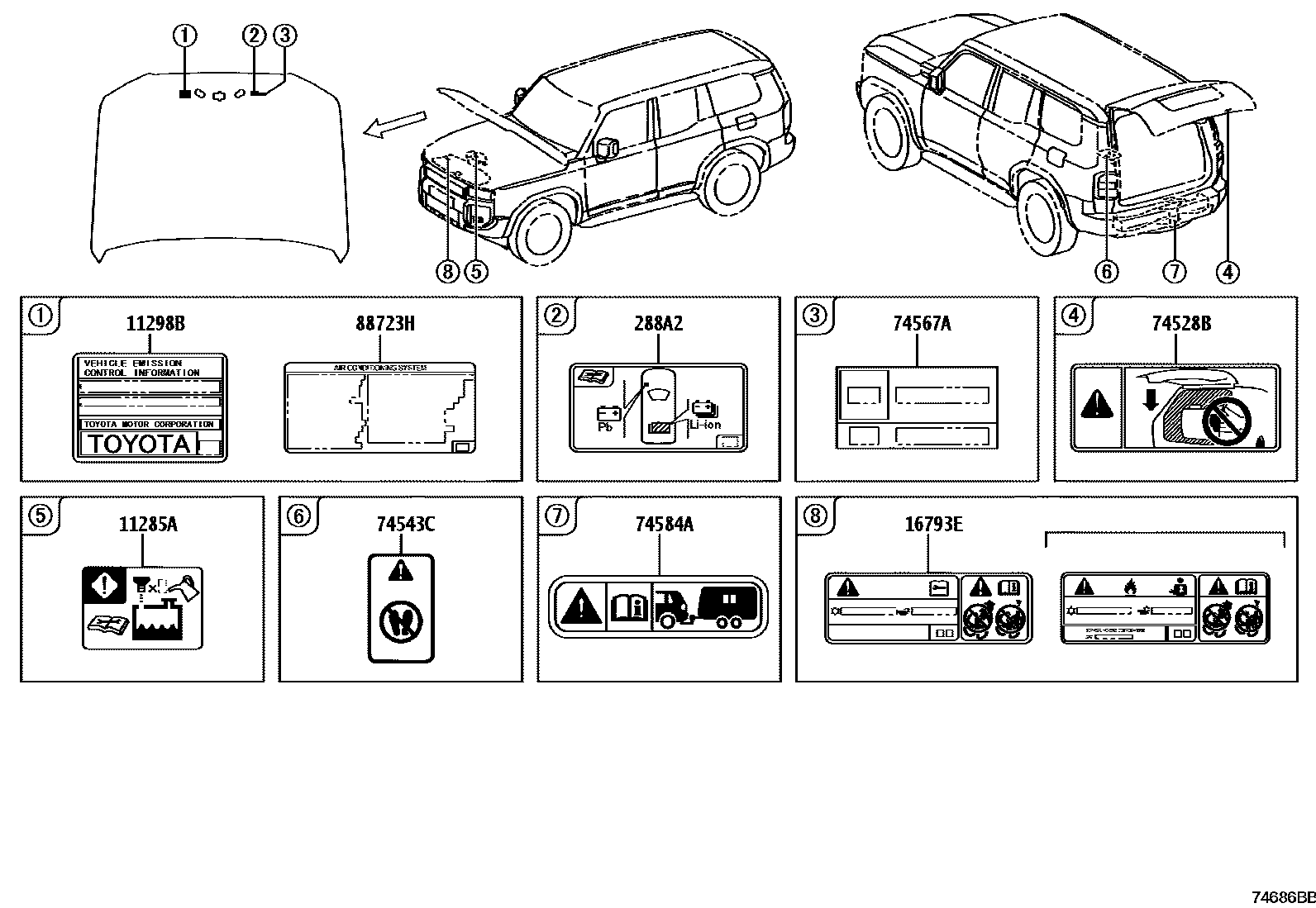

CAUTION PLATE
11285ALABEL, COOLANT SYSTEM NOTICE
11298BLABEL, EMISSION CONTROL INFORMATION
16793ELABEL, COOLING FAN CAUTION
main7454A-60020i1GDFTV..GDJ251..U;T24,1GDFTV,2TRFE..GDJ250,TJA250,TRJ250..(A,R,U)..(GCC,GEN,RUS,SA)202401
REAR AIR CONDITIONER-WITHOUT
REAR AIR CONDITIONER-WITH
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER)
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER)&REAR AIR CONDITIONER-WITH
288A2LABEL, BATTERY LOCATION
74528BLABEL, BACK DOOR CAUTION
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
BACK DOOR-WITH(POWER BACK DOOR)
HIGH GRADE PACKAGE FOR AR
MIDDLE GRADE PACKAGE FOR AR
74543CLABEL, REAR SEAT INFORMATION
74567APLATE, E.C.E APPROVED NUMBER
74584ALABEL, TOWING CAUTION
88723HLABEL, COOLER SERVICE CAUTION
9 parts on this diagram · 2 diagrams in section
