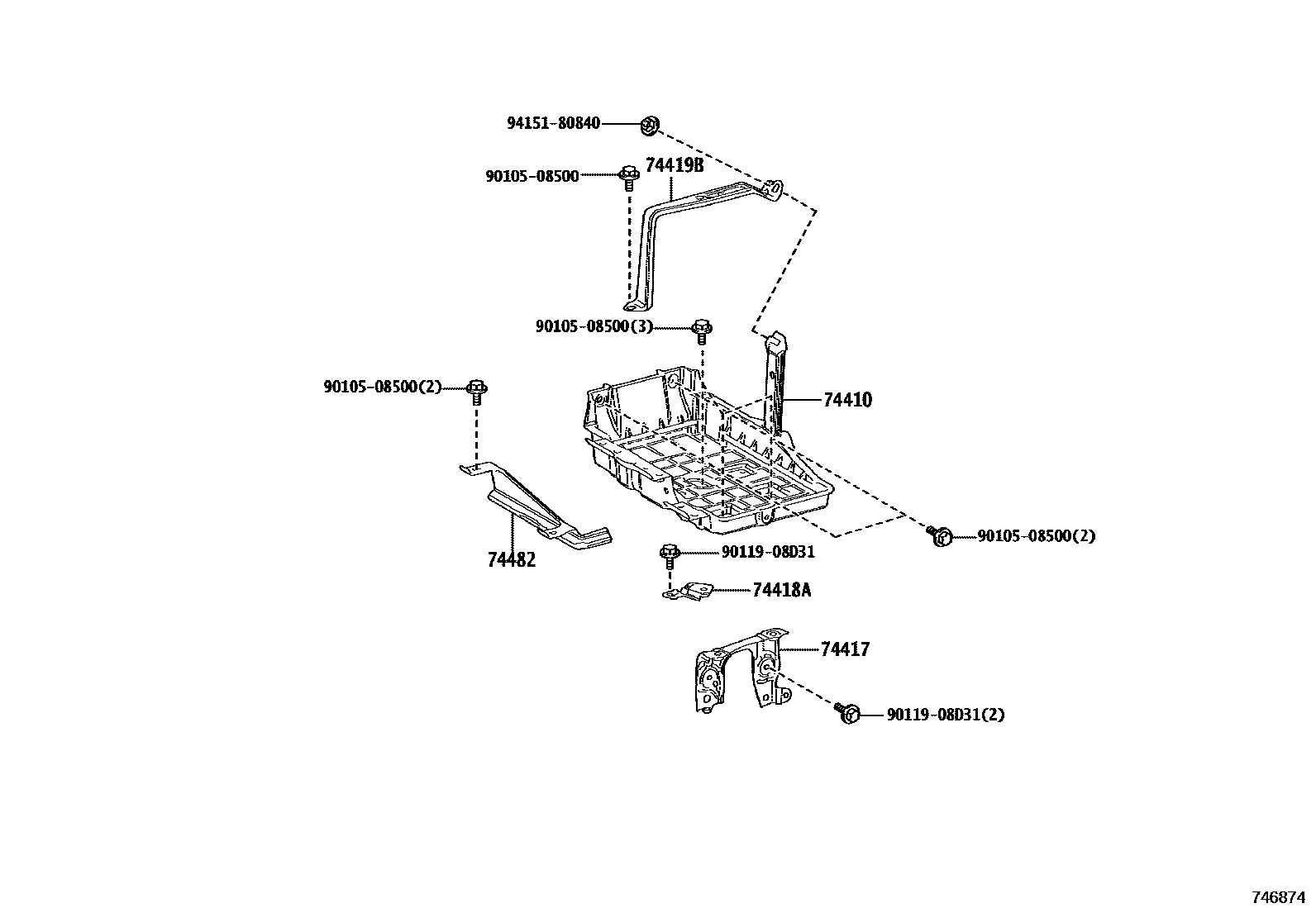

BATTERY CARRIER

0001 1 0002 1 0003 1

74410CARRIER ASSY, BATTERY

main74410-60060iGDJ250,TJA250,TRJ250..LHD202401

main74410-60070iGDJ250..RHD..EUR202401-202509

74417BRACKET, BATTERY CARRIER

main74417-60050iGDJ250,TJA250,TRJ250..LHD202401

main74417-60060iGDJ250..RHD..EUR202401-202509

74418ABRACKET, BATTERY CARRIER, NO.4

main74418-60020iGDJ250,TJA250,TRJ250..LHD202401

main74418-60030iGDJ250..RHD..EUR202401-202509

74419BBRACKET, BATTERY CARRIER, NO.2

main74419-60040iGDJ250,TJA250,TRJ250..LHD202401

main74419-60050iGDJ25#,TRJ250..RHD..(ARL,GEN,SA)202401-202509

74482CLAMP, BATTERY, NO.2

main74482-60080iTRJ250..LHD..GEN202401

COLD AREA SPEC

main74482-60090iGDJ25#..RHD..(ARL,GEN,SA)202401-202509

main74482-60110iTRJ250..LHD..(GCC,GEN)202401

main74482-60120iTRJ250..RHD202401

9010508500

main90105-08500

9011908D31

main90119-08D31

9415180840

main94151-80840

8 parts on this diagram · 3 diagrams in section
