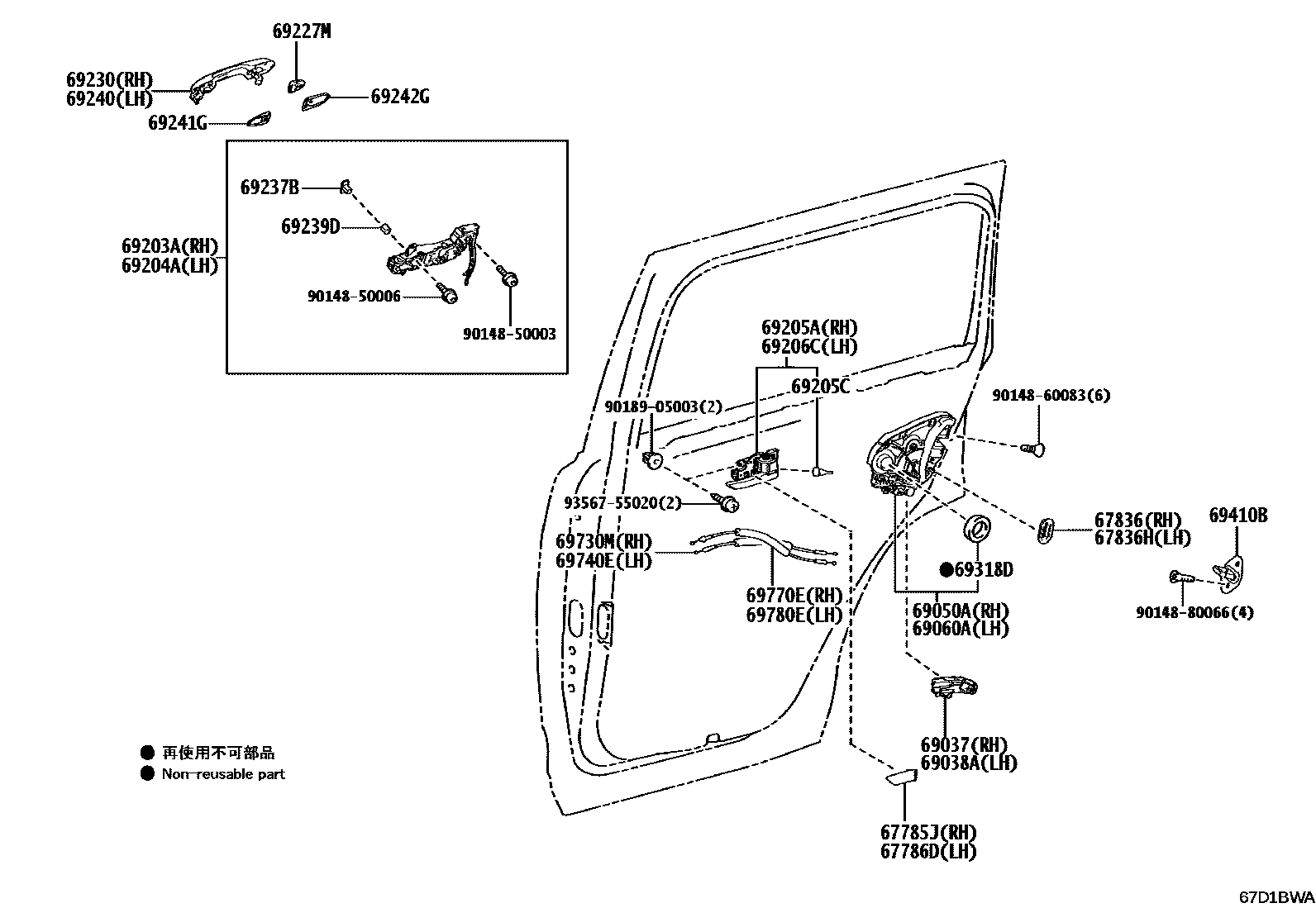

REAR DOOR LOCK & HANDLE

67785JCOVER, REAR DOOR TRIM, UPPER RH

main67785-60070-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,TRIM1#,2#

main67785-60070-C0iGDJ250..RHD..(L,R)..EUR202401-202509

BLACK,TRIM2#

main67785-60070-C0iGDJ250..RHD..(L,R)..EUR202401-202509

BLACK,TRIM2#,4#

main67785-60070-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

67786DCOVER, REAR DOOR TRIM, UPPER LH

main67786-60070-C0iGDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401-202509

BLACK,TRIM2#

main67786-60070-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#,4#

main67786-60070-C0iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#

main67786-60070-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,TRIM1#,2#,4#

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-60010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-60010iGDJ250..RHD..EUR202401-202509

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-42010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-42010iGDJ250..RHD..EUR202401-202509

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-60200iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN202401

main69050-60210iGDJ250..RHD..EUR202401-202509

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-60200iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN202401

main69060-60210iGDJ250..RHD..EUR202401-202509

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-60090iGDJ250..RHD..EUR202401-202509

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-60030iGDJ250..RHD..EUR202401-202509

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-15010-C1iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM1#,2#,4#

main69205-15010-C1iGDJ250..RHD..U..EUR202401-202509

BLACK,TRIM2#

main69205-33140-C0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

main69205-33140-C0iGDJ250..RHD..A..EUR202401-202509

HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69205-33140-C0iGDJ250..RHD..A..EUR202401-202509

MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69205-33140-C0iGDJ250..RHD..L..EUR202404-202509

BLACK,TRIM1#,2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGDJ250..RHD..EUR202401-202509

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-15010-C1iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#

main69206-15010-C1iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..LHD..L..EUR;GDJ25#,TJA250..L..(ARL,GCC,GEN,RUS,SA)202404-202509

BLACK,TRIM1#,2#,4#

main69206-33150-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA)202401-202509

BLACK,TRIM2#,4#

main69206-33150-C0iGDJ250..RHD..A..EUR202401-202509

HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-60190iGDJ250..RHD..EUR202401-202509

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-60150-A0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

SUPER WHITE 2,040

main69211-60150-A1iGDJ250..RHD..(L,R)..EUR202401-202509

PLATINUM WHITE PEARL MC.,089

main69211-60150-B0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

DK.GRAY,1L7

main69211-60150-C0iGDJ250,TRJ250..LHD..U..GEN202401

WIRELESS DOOR LOCK-SMART ENTRY(PANIC),BLACK,040 ,202 ,4V8

main69211-60150-C0iGDJ250..RHD..R..EUR202401-202509

BLACK,202

main69211-60150-C0iGDJ250..RHD..R..EUR202401-202509

BLACK,040 ,202 ,4V8

main69211-60150-C0iGDJ250..RHD..R..EUR202401-202509

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69211-60150-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69211-60150-C0iGDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA)202401

WIRELESS DOOR LOCK-SMART ENTRY,BLACK,040 ,202 ,4V8

main69211-60150-C1iGDJ250..RHD..(A,L,R)..EUR202401-202509

ATTITUDE BLACK MC.,218

main69211-60150-E0iGDJ250..RHD..(L,R)..EUR202401-202509

AVANT-GARDE BRONZE ME.,4V8

main69211-60160iGDJ250,TRJ250..LHD..U..GEN202401

NO PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-60010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69239DBUSH, REAR DOOR HANDLE

main69239-60020iGDJ250..RHD..EUR202401-202509

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-60150-A0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

SUPER WHITE 2,040

main69211-60150-A1iGDJ250..RHD..(L,R)..EUR202401-202509

PLATINUM WHITE PEARL MC.,089

main69211-60150-B0iGDJ250..LHD..R..EUR;GDJ25#,TJA250,TRJ250..R..(ARL,GCC,GEN,RUS,SA)202401-202509

DK.GRAY,1L7

main69211-60150-C0iGDJ250..RHD..A..EUR202401-202509

BLACK,040 ,089 ,1L7 ,202 ,218 ,2ZC ,2ZD ,4V8 ,5C8 ,8X0

main69211-60150-C0iGDJ250..RHD..R..EUR202401-202509

BLACK,040 ,202 ,4V8

main69211-60150-C0iGDJ250..RHD..R..EUR202401-202509

BLACK,202

main69211-60150-C0iGDJ251,TJA250..U;GDJ250..RHD..U..GEN;GDJ250,TRJ250..LHD..U..(EUR,GCC,RUS)202401

WIRELESS DOOR LOCK-SMART ENTRY,BLACK,040 ,202 ,4V8

main69211-60150-C0iGDJ251,TJA250..U;GDJ250..RHD..U..GEN;GDJ250,TRJ250..LHD..U..(EUR,GCC,RUS)202401

WIRELESS DOOR LOCK-SMART ENTRY(PANIC),BLACK,040 ,202 ,4V8

main69211-60150-C0iGDJ250..6FC..R;GDJ251,TRJ250..R;GDJ250,TJA250..R..RUS202401

BLACK,089 ,202 ,4V8 ,5C8 ,8X0

main69211-60150-C1iGDJ250..LHD..(A,L,R)..EUR;GDJ25#,TJA250,TRJ250..(A,L,R)..(ARL,GCC,GEN,RUS,SA)202401-202509

ATTITUDE BLACK MC.,218

main69211-60150-E0iGDJ250..RHD..(L,R)..EUR202401-202509

AVANT-GARDE BRONZE ME.,4V8

main69211-60160iGDJ250,TRJ250..LHD..U..GEN202401

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-60080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60090iGDJ250..RHD..EUR202401-202509

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-60090iGDJ250..RHD..EUR202401-202509

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-60090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-60100iGDJ250..RHD..EUR202401-202509

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-60100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

9014850003

main90148-50003

9014850006

main90148-50006

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

32 parts on this diagram · 1 diagram in section
