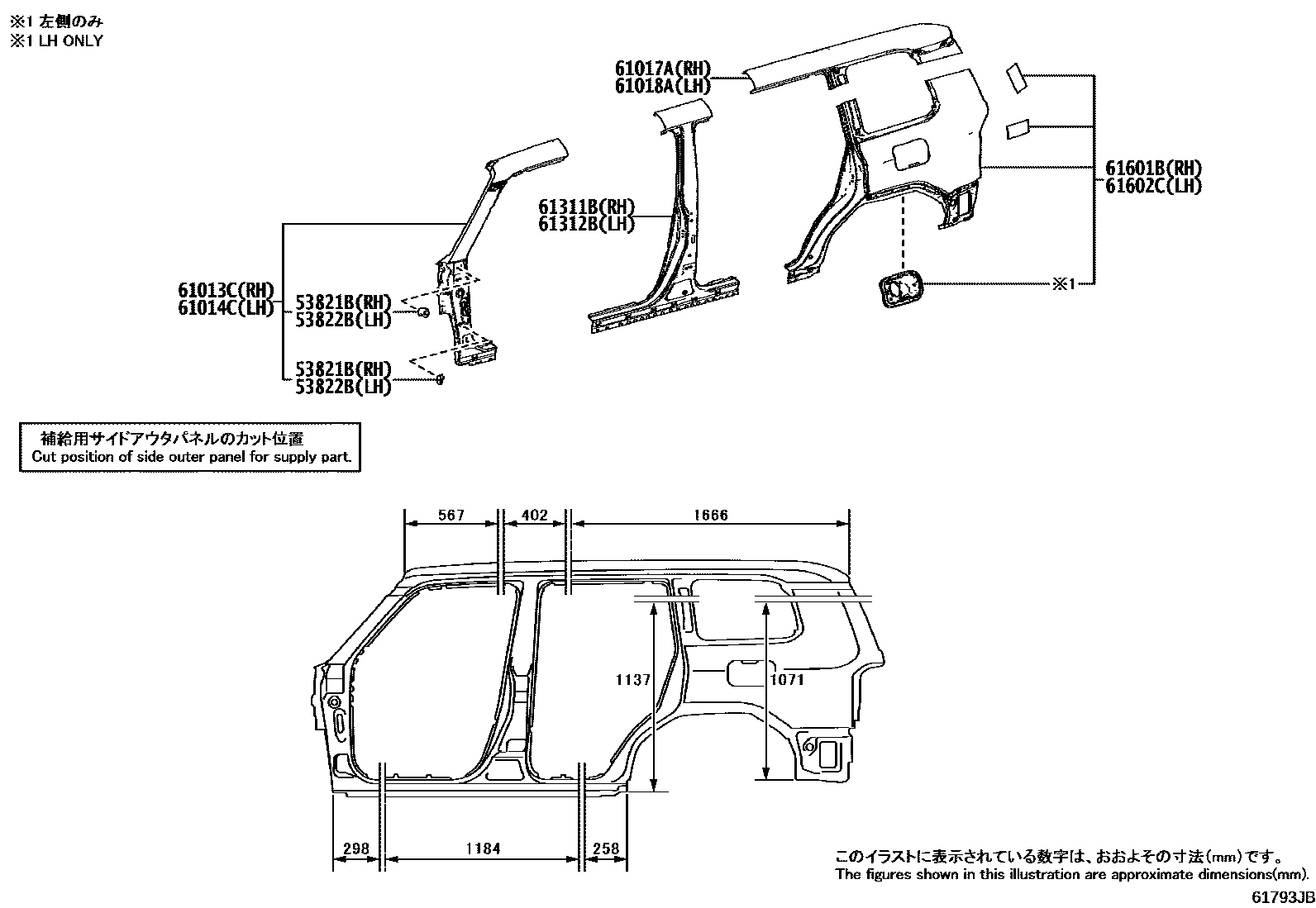

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010×2iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010×2iGDJ250..RHD..EUR202401-202509

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-60060iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-60020iGDJ250..RHD..EUR202401-202509

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-60030iGDJ250..RHD..EUR202401-202509

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60210iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60270iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-60B00iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-60A90iGDJ250..R..GCC202401

EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)

main61602-60B10iGDJ250..LHD..8FC..GEN202401

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

10 parts on this diagram · 3 diagrams in section
