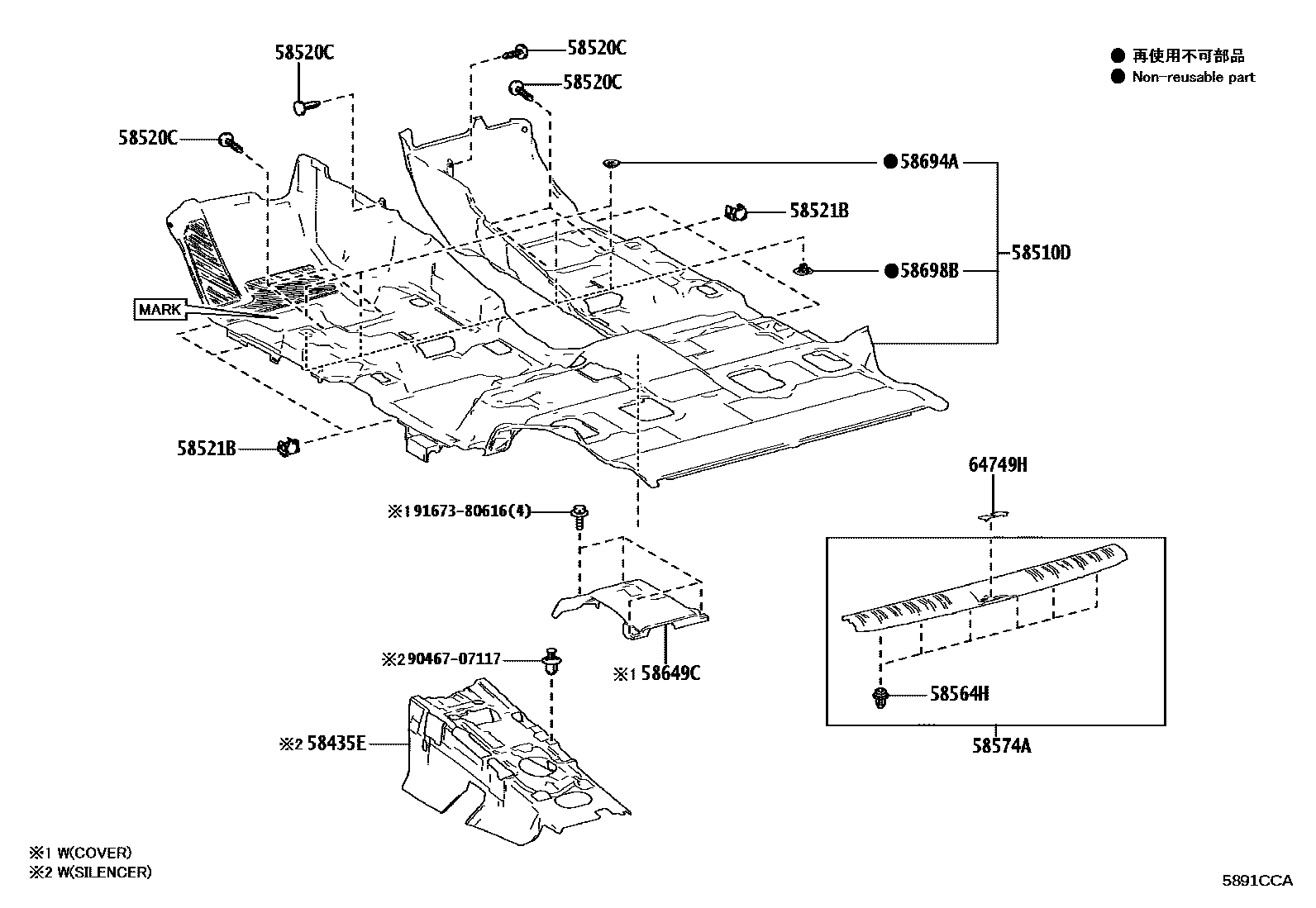

FLOOR MAT & SILENCER PAD
58435ESILENCER, FRONT FLOOR, CENTER
main58435-60050iGDJ250..LHD..R..EUR;GDJ250,TJA250..LHD..(A,L)..(EUR,GCC);GDJ25#,TJA250..(A,L,R)..(ARL,GEN,RUS,SA)202401
HIGH GRADE PACKAGE FOR AR
MIDDLE GRADE PACKAGE FOR AR
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR00
BLACK,TRIM2#,4#,MARK = 58510-6AR10
BLACK,TRIM2#,MARK = 58510-6AR10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR10
BLACK,TRIM2#,4#,MARK = 58510-6AR70
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR70
BLACK,TRIM2#,MARK = 58510-6AR70
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR90
BLACK,TRIM2#,4#,MARK = 58510-6AR90
REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#,4#,MARK = 58510-6AR90
BLACK,TRIM2#,MARK = 58510-6AS80
FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,4#,MARK = 58510-6AS80
BLACK,TRIM1#,2#,4#,MARK = 58510-6AS80
REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK = 58510-6AS80
BLACK,TRIM1#,2#,4#,MARK = 58510-6AT50
BLACK,TRIM1#,2#,4#,MARK = 58510-6AT70
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU00
BLACK,TRIM2#,MARK = 58510-6AU10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU10
BLACK,TRIM2#,4#,MARK = 58510-6AU10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU20
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU90
BLACK,TRIM2#,MARK = 58510-6AU90
BLACK,TRIM2#,4#,MARK = 58510-6AU90
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV00
REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#,4#,MARK = 58510-6AV40
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV40
BLACK,TRIM2#,4#,MARK = 58510-6AV40
FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,4#,MARK = 58510-6AV50
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV50
BLACK,TRIM2#,MARK = 58510-6AV50
REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK = 58510-6AV50
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58564HCLIP(FOR REAR FLOOR CARPET)
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
58649CCOVER, MAT SET PLATE
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
64749HCOVER, BACK DOOR STRIKER
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
9046707117
main90467-07117
9167380616
main91673-80616
12 parts on this diagram · 3 diagrams in section
