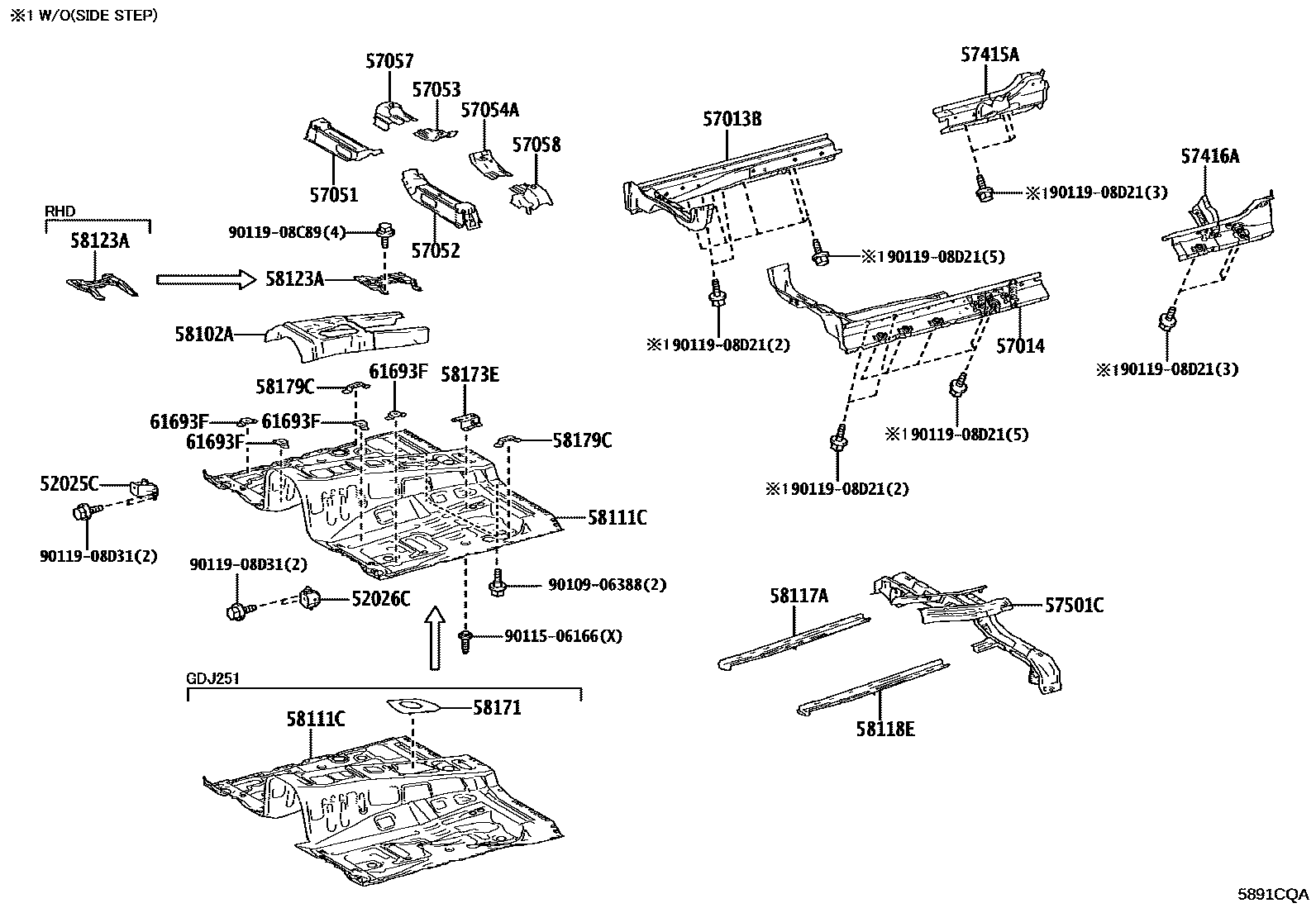

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH
57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH
57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH
57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111CPAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118EBRACKET, JACK SET
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58173EBRACKET, WIRING HARNESS, NO.3
58179CBRACKET, CLAMP FLOOR
61693FBRACKET, FRONT FLOOR
9010906388
9011506166
9011908C89
9011908D21
9011908D31
27 parts on this diagram · 2 diagrams in section
