RADIATOR GRILLE

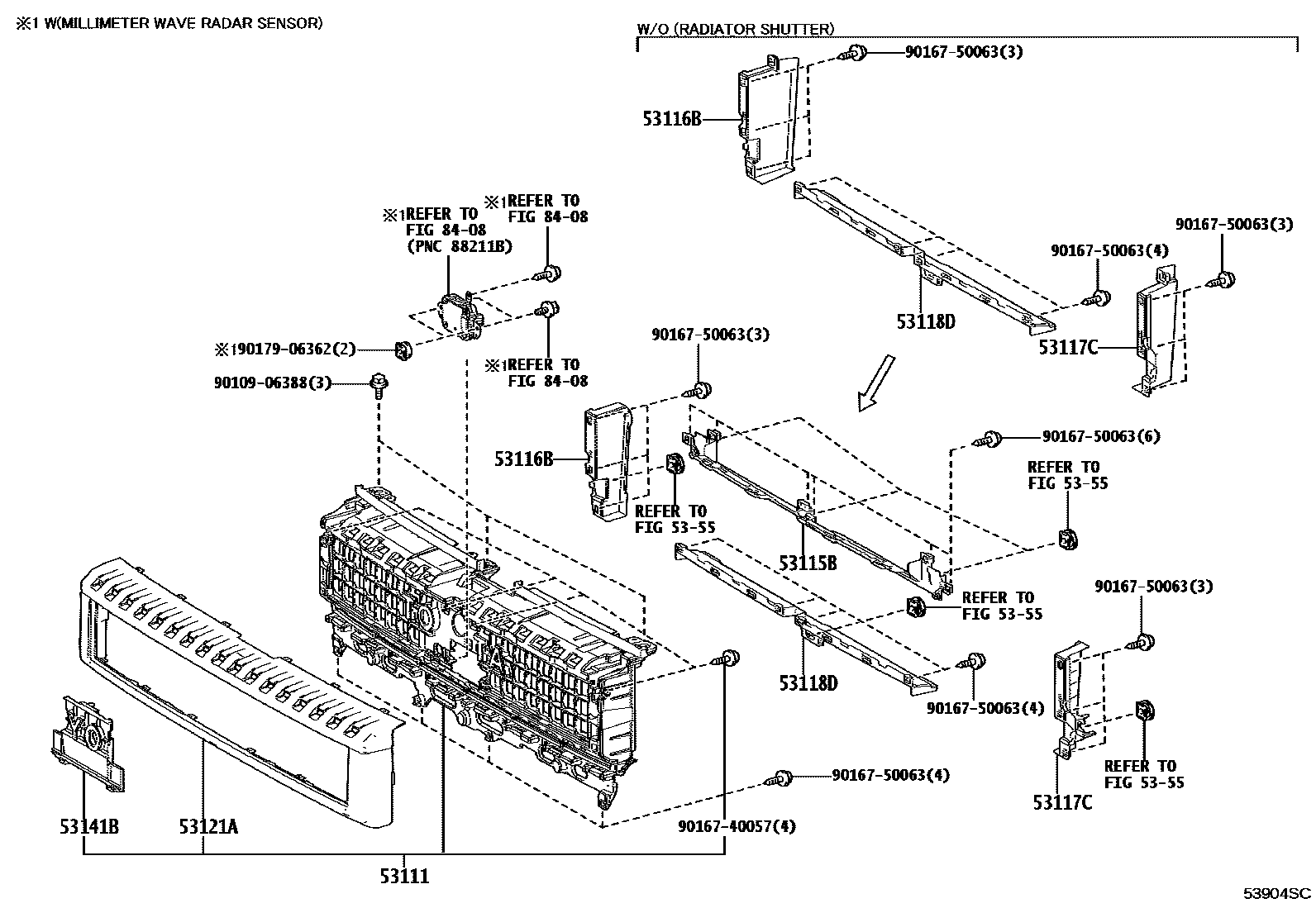

Parts diagram
53111GRILLE, RADIATOR
main53101-60M90i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60M90i202401
NO PAINT REQ.
main53101-60N60i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)
main53101-60N60i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N60i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60N60i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N60i202407-202509
NO PAINT REQ.
main53101-60N60i202404-202509
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N80i202408
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-FIJI SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
main53101-60N80i202401
NO PAINT REQ.
main53101-60N80i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60N90i202407-202509
NO PAINT REQ.
main53101-60N90i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)
main53101-60N90i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N90i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTASAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
main53101-60N90i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N90i202404-202509
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N90i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60N90i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60P10i202404-202509
PLATED
main53101-60P10i202412-202509
PLATED,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53101-60P10i202412-202509
PLATED,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
main53101-60P10i202412
PLATED,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MAR
main53101-60P10i202412
PLATED,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53101-60P10i202412
PLATED,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53101-60P10i202412
PLATED,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
main53101-60P10i202412
PLATED,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53101-60P10i202412
PLATED,BRAND SYMBOL MARK-WITH
main53101-60P30i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60P30i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60P30i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE
main53101-60P30i202404-202509
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE
main53101-60P30i202401
NO PAINT REQ.,FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53101-60P30i202401
NO PAINT REQ.,FIRST EDITION PACKAGE
main53101-60P30i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&TIRE& DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53101-60P30i202401
NO PAINT REQ.
main53101-60P40i202401
NO PAINT REQ.,FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE& DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53101-60P40i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)
main53101-60P40i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53101-60P40i202401
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&ACTIVESAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTASAFETY SENSE
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTASAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTASAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM,
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-EGYPT SPEC&&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT B
main53101-60P40i202401
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVESAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD
main53101-60P40i202401
NO PAINT REQ.,FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOAR
main53101-60P40i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202404
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53101-60P40i202407-202509
NO PAINT REQ.
main53101-60P40i202407
NO PAINT REQ.,FIRST EDITION PACKAGE
main53101-60P40i202404-202509
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53101-60P40i202404-202509
NO PAINT REQ.,DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
53115BBRACKET, RADIATOR GRILLE
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53115-60120i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC
main53115-60120i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE
main53115-60120i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53115-60120i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53115-60120i202401
TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53115-60120i202401
TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53115-60120i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53115-60120i202401
DESTINATION PACKAGE(OTHER-EGYPT SPEC&&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRON
main53115-60120i202401
DESTINATION PACKAGE(OTHER-EGYPT SPEC&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
main53115-60120i202401
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&TIR
main53115-60120i202401
FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53115-60120i202401
FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53115-60120i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53115-60120i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53115-60120i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC
main53115-60120i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE
main53115-60120i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53115-60120i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53115-60160i202404-202509
main53115-60160i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53115-60160i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53115-60160i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
main53115-60160i202412
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53115-60160i202412
BRAND SYMBOL MARK-WITH
main53115-60160i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53115-60160i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53115-60160i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
53116BBRACKET, RADIATOR GRILLE, NO.2
main53116-60100i202401
DESTINATION PACKAGE(OTHER-EGYPT SPEC&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)
main53116-60100i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC
main53116-60100i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE
main53116-60100i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60100i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53116-60100i202401
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53116-60100i202401
DESTINATION PACKAGE(OTHER-EGYPT SPEC&&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRON
main53116-60100i202401
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&TIR
main53116-60100i202401
FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53116-60100i202401
FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53116-60100i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53116-60100i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53116-60100i202401
TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD
main53116-60100i202401
TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53116-60100i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC
main53116-60100i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE
main53116-60100i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60100i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60110i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53116-60110i202401-202509
main53116-60120i202404-202509
DESTINATION PACKAGE(OTHER-ECUADOR SPEC
main53116-60120i202404-202509
DESTINATION PACKAGE(OTHER-ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60120i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
main53116-60120i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53116-60120i202404-202509
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60120i202404-202509
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
main53116-60120i202404-202509
DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC&DESTINATION PACKAGE(OTHER&COLD AREA SPEC
main53116-60120i202404-202509
DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC&DESTINATION PACKAGE(OTHER&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC
main53116-60120i202404
main53116-60120i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53116-60120i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
main53116-60120i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60120i202404-202412
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC
main53116-60120i202404-202412
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53116-60120i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC
main53116-60130i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53116-60130i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53116-60130i202412
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53116-60130i202412
BRAND SYMBOL MARK-WITH
main53116-60130i202404-202509
main53116-60130i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
53117CRETAINER, RADIATOR GRILLE, NO.1
main53117-60080i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60080i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC
main53117-60080i202401
main53117-60080i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC
main53117-60080i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60090i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53117-60090i202401-202509
main53117-60100i202404-202509
DESTINATION PACKAGE(OTHER-ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60100i202404-202509
DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC&DESTINATION PACKAGE(OTHER&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC
main53117-60100i202404-202509
DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC&DESTINATION PACKAGE(OTHER&COLD AREA SPEC
main53117-60100i202404-202509
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
main53117-60100i202404-202509
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60100i202404-202509
DESTINATION PACKAGE(OTHER-ECUADOR SPEC
main53117-60100i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53117-60100i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
main53117-60100i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC
main53117-60100i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60100i202404-202412
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC
main53117-60100i202404-202412
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53117-60100i202404
main53117-60100i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53117-60100i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
main53117-60110i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53117-60110i202404-202509
main53117-60110i202404-202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53117-60110i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53117-60110i202412
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53117-60110i202412
BRAND SYMBOL MARK-WITH
53118DRETAINER, RADIATOR GRILLE, NO.2
main53118-60060i202401-202509
main53118-60060i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53118-60070i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53118-60070i202404-202509
main53118-60070i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53118-60070i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
main53118-60070i202412
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53118-60070i202412
BRAND SYMBOL MARK-WITH
main53118-60070i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53118-60070i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53118-60070i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
53121AMOULDING, RADIATOR GRILLE
main53121-60540i202401-202509
main53121-60550i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53121-60550i202401-202509
main53121-60570i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53121-60570i202412
BRAND SYMBOL MARK-WITH
main53121-60570i202412
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53121-60570i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&BRAND SYMBOL MARK-WITH
main53121-60570i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)&BRAND SYMBOL MARK-WITH
main53121-60570i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53121-60570i202404-202509
main53121-60570i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&BRAND SYMBOL MARK-WITH
main53121-60570i202412-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BRAND SYMBOL MARK-WITH
main53121-60620i202401
DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53121-60620i202401-202509
main53121-60620i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE
main53121-60620i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53121-60620i202401
DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53121-60620i202401
DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53121-60620i202401
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
main53121-60620i202401
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&TIR
main53121-60620i202401
FIRST EDITION PACKAGE
main53121-60620i202401
FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53121-60620i202401
FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
main53121-60620i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE
main53121-60620i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53121-60620i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53121-60620i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&FIRST EDITION PACKAGE&EXHAUST EMISSIONCONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53121-60620i202412
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
53141BGARNISH, RADIATOR GRILLE, NO.1
main53106-60150i202401
main53106-60150i202408
DESTINATION PACKAGE(OTHER-FIJI SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
main53106-60150i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
main53106-60160i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main53106-60160i202404-202509
DESTINATION PACKAGE(OTHER-SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53106-60160i202407-202509
main53106-60160i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main53106-60160i202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE)
main53106-60160i202404
DESTINATION PACKAGE(OTHER-MIDDLE EAST SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
5355
8408
9010906388
main90109-06388
9016740057
main90167-40057
9016750063
main90167-50063
9017906362
main90179-06362

13 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
