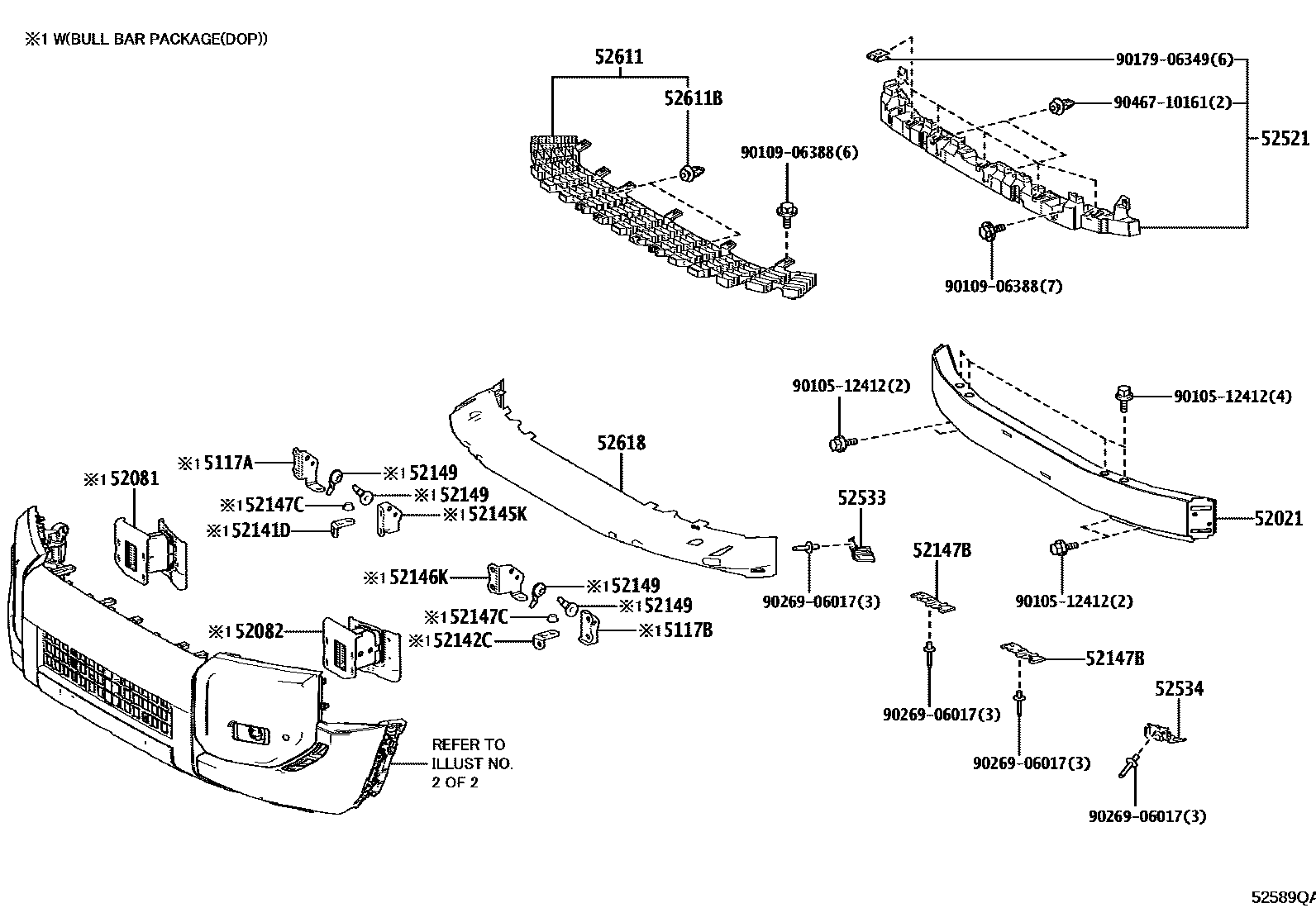

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5117AREINFORCEMENT, EXTENSION WINCH SUPPORT, RH

main5117A-60030

5117BREINFORCEMENT, EXTENSION WINCH SUPPORT, LH

main5117B-60030

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60310iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

52081STAY SUB-ASSY, FRONT BUMPER

main52081-60030

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52082-60030

52141DSTAY, FRONT BUMPER, RH

52142CSTAY, FRONT BUMPER, LH

52145KGUSSET, WINCH SUPPORT, RH

52146KGUSSET, WINCH SUPPORT, LH

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-60140iGDJ250..RHD..EUR202401-202509

52147CBRACKET, BUMPER GUARD BAR, RH

52149BRACKET, FRONT BUMPER, INNER

main52149-60140

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60240iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-60070iGDJ250..RHD..EUR202401-202509

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52534-60070iGDJ250..RHD..EUR202401-202509

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60190iGDJ250..RHD..EUR202401-202509

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232iGDJ250..RHD..EUR202401-202509

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60070iGDJ250..RHD..EUR202401-202509

9010512412

main90105-12412

9010906388

main90109-06388

9017906349

main90179-06349

9026906017

main90269-06017

9046710161

main90467-10161

23 parts on this diagram · 4 diagrams in section
