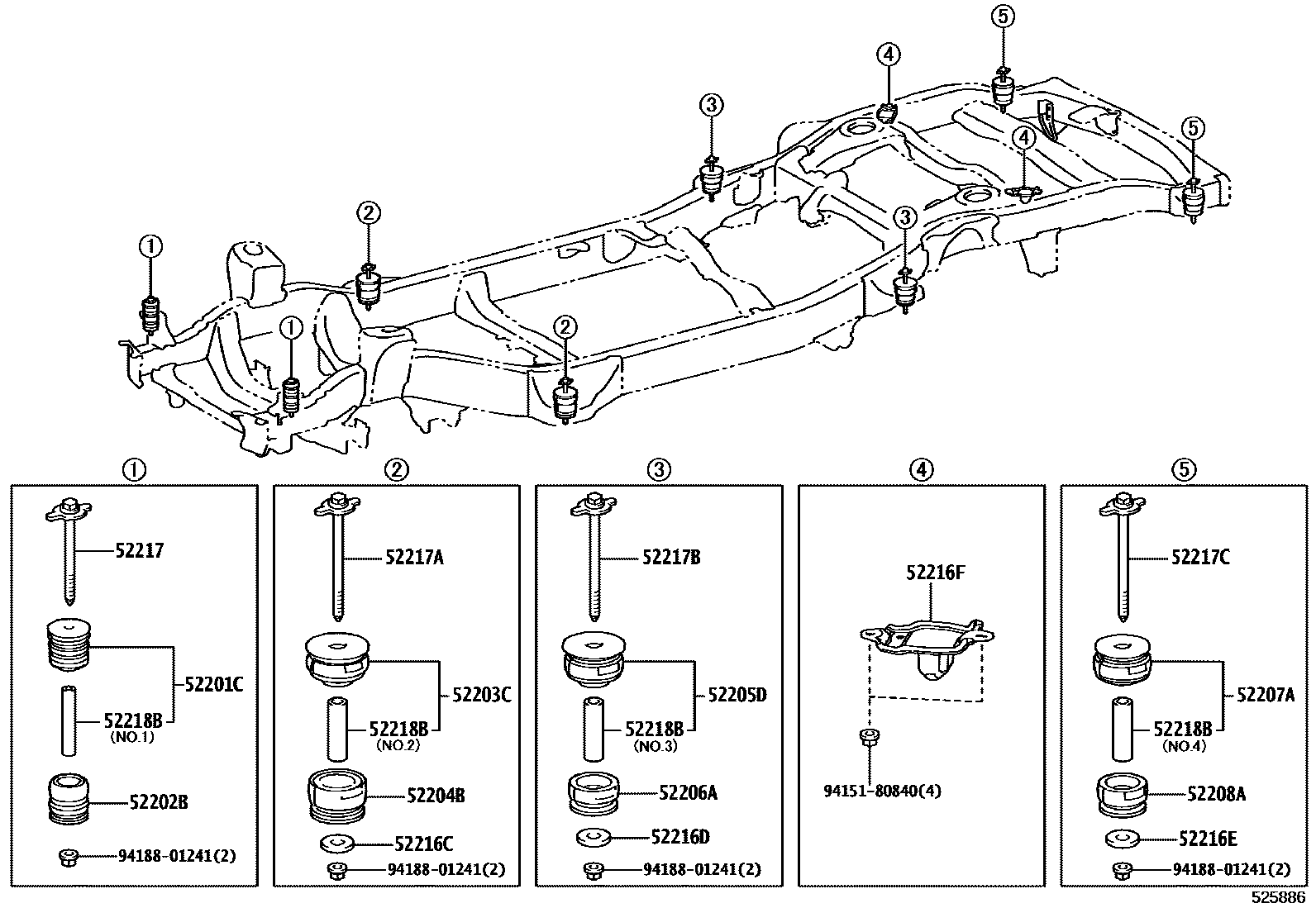

CAB MOUNTING & BODY MOUNTING
52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER
52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER
52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER
52216CSTOPPER, CAB MOUNTING CUSHION
52216DSTOPPER, CAB MOUNTING CUSHION
52216ESTOPPER, CAB MOUNTING CUSHION
52216FSTOPPER, CAB MOUNTING CUSHION
52217BOLT, BODY MOUNTING
52217ABOLT, BODY MOUNTING
52217BBOLT, BODY MOUNTING
52217CBOLT, BODY MOUNTING
52218BHOLDER, CAB MOUNT CUSHION, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.4:REFER ILLUST.
NO.3:REFER ILLUST.
9415180840
main94151-80840
9418801241
main94188-01241
19 parts on this diagram · 1 diagram in section
