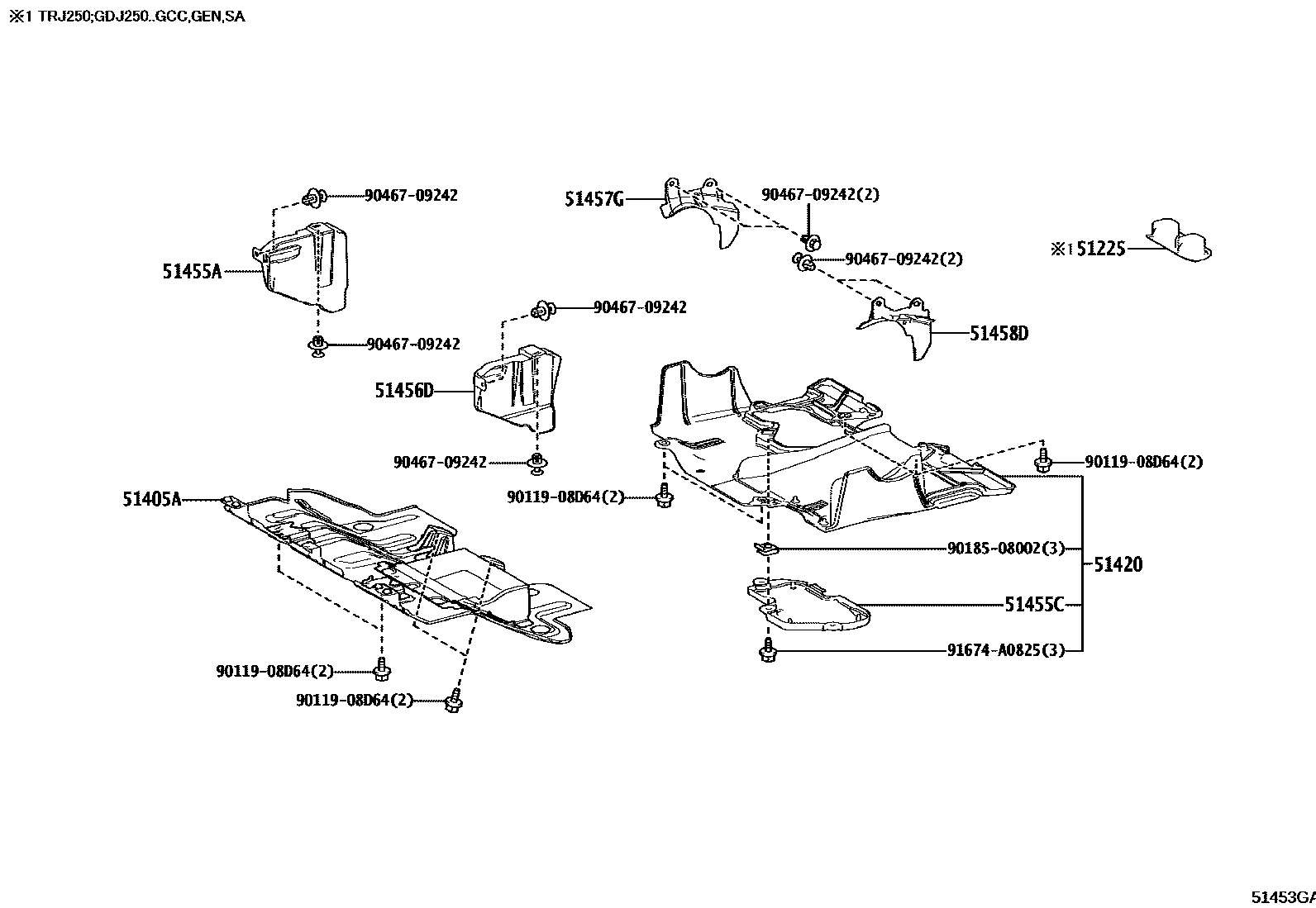

SUSPENSION CROSSMEMBER & UNDER COVER

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-60040iTRJ250;GDJ250..GCC,GEN,SA202401

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60270iGDJ250..RHD..EUR202401-202509

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-60140iTJA250,TRJ250..RUS202401

main51420-60160iGDJ250..RHD..EUR202401-202509

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-60120iGDJ250..RHD..EUR202401-202509

51455CSEAL, ENGINE UNDER COVER, NO.2

main51466-60040iGDJ250..RHD..EUR202401-202509

51456DSEAL, FRAME UNDER, NO.1 LH

main51456-60130iGDJ250..RHD..EUR202401-202509

51457GSEAL, FRAME UNDER, NO.2 RH

main51457-60050iGDJ250..RHD..EUR202401-202509

51458DSEAL, FRAME UNDER, NO.2 LH

main51458-60050iGDJ250..RHD..EUR202401-202509

9011908D64

main90119-08D64

9018508002

main90185-08002

9046709242

main90467-09242

91674A0825

main91674-A0825

12 parts on this diagram · 1 diagram in section
