FRAME
48806CBRACE SUB-ASSY, FRONT STABILIZAR, CENTER
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
5103CPLATE SUB-ASSY, SIDE RAIL EXTENSION, RH
5103DPLATE SUB-ASSY, SIDE RAIL EXTENSION, LH
51100FFRAME SUB-ASSY
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
FUEL TANK-80L
FUEL TANK-110L
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51195PATCH, REAR FRAME RAIL, RH
51196PATCH, REAR FRAME RAIL, LH
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
5159CINSULATOR, FRAME CROSSMEMBER HEAT
FUEL TANK-110L
51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH
51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51705DBRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51729ACOVER, NO.2 CAB MOUNTING, RH
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GEORGIA SPEC
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-ECUADOR SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GHANA SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER
DESTINATION PACKAGE(OTHER&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-ECUADOR SPEC
DESTINATION PACKAGE(OTHER-GHANA SPEC
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ONBOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ONBOARD DIAGNOSIS)&STABILIZER-WITH
5172ACOVER, NO.2 CAB MOUNTING, LH
DESTINATION PACKAGE(OTHER-ECUADOR SPEC
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER
DESTINATION PACKAGE(OTHER&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GHANA SPEC
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ONBOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ONBOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GEORGIA SPEC
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-ECUADOR SPEC&STABILIZER-WITH
DESTINATION PACKAGE(OTHER-GHANA SPEC&STABILIZER-WITH
51980AHOOK ASSY, PINTLE
51985AHOOK, EYELET PINTLE
51987ABRACKET, PINTLE HOOK
9011908D59
main90119-08D59
9017912145
main90179-12145
9167381285
main91673-81285
91674N1025
main91674-N1025
91674N1030
main91674-N1030

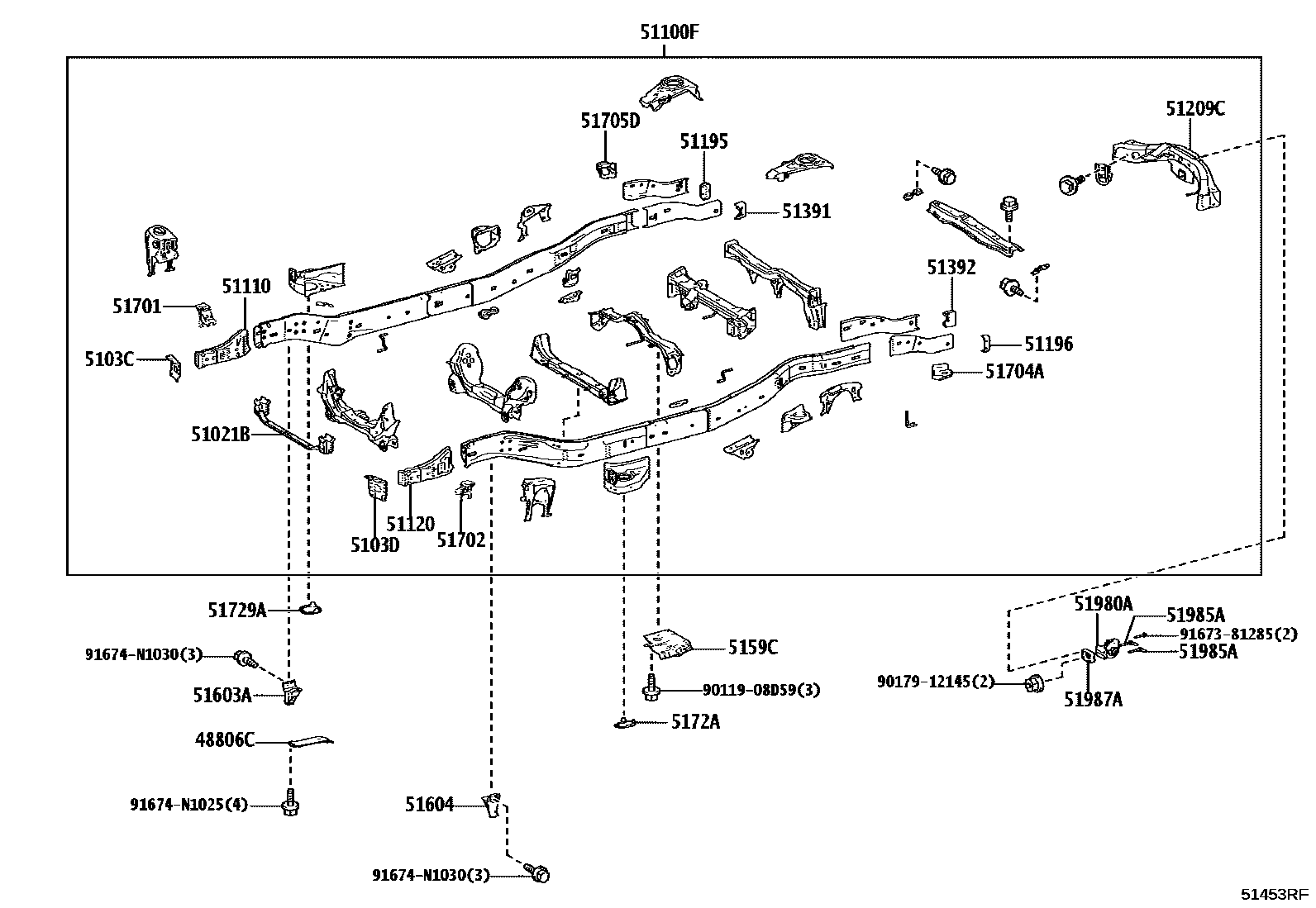

29 parts on this diagram · 5 diagrams in section
