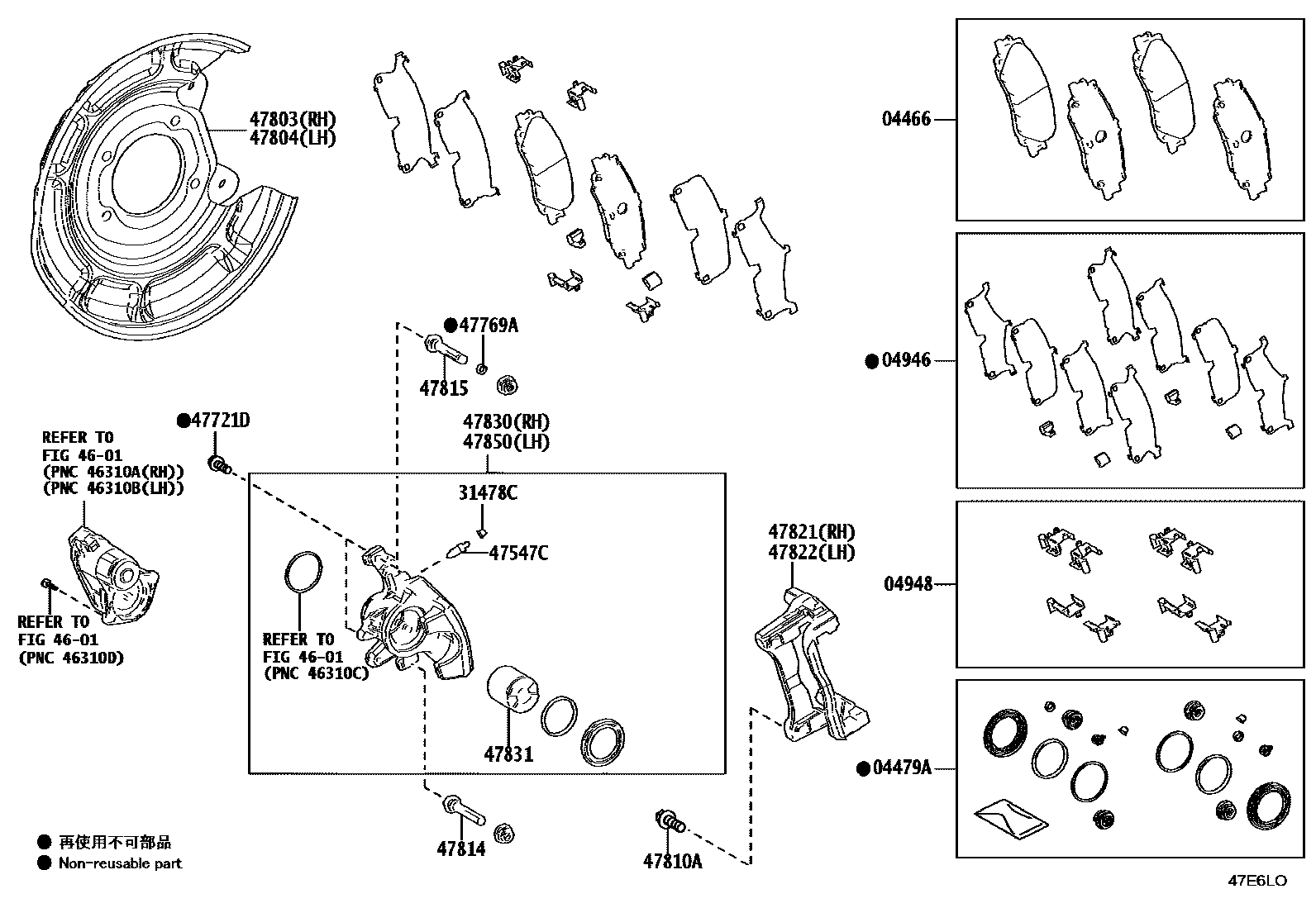

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-57010iGDJ250..RHD..EUR¥8,000202401-202509

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60280iGDJ250..RHD..EUR¥2,130202401-202509

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60150iGDJ250..RHD..EUR¥1,780202401-202509

04948FITTING KIT, DISC BRAKE, REAR

main04948-60050iGDJ250..RHD..EUR¥1,390202401-202509

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGDJ250..RHD..EUR¥160202401-202509

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iGDJ250..RHD..EUR¥180202401-202509

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA606iGDJ250..RHD..EUR¥270202401-202509

*10-1.00PX20-9

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0E070iGDJ250..RHD..EUR¥240202401-202509

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-60012iGDJ250..RHD..EUR¥15,900202401-202509

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-60012iGDJ250..RHD..EUR¥15,900202401-202509

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14169iGDJ250..RHD..EUR¥240202401-202509

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-60130iGDJ250..RHD..EUR¥510202401-202509

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-60130iGDJ250..RHD..EUR¥510202401-202509

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-60130iGDJ250..RHD..EUR¥5,200202401-202509

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-60120iGDJ250..RHD..EUR¥5,200202401-202509

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-60150iGDJ250..RHD..EUR¥26,100202401-202509

47831PISTON, REAR DISC BRAKE

main47831-60130iGDJ250..RHD..EUR¥1,180202401-202509

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-60150iGDJ250..RHD..EUR¥26,100202401-202509

19 parts on this diagram · 1 diagram in section
