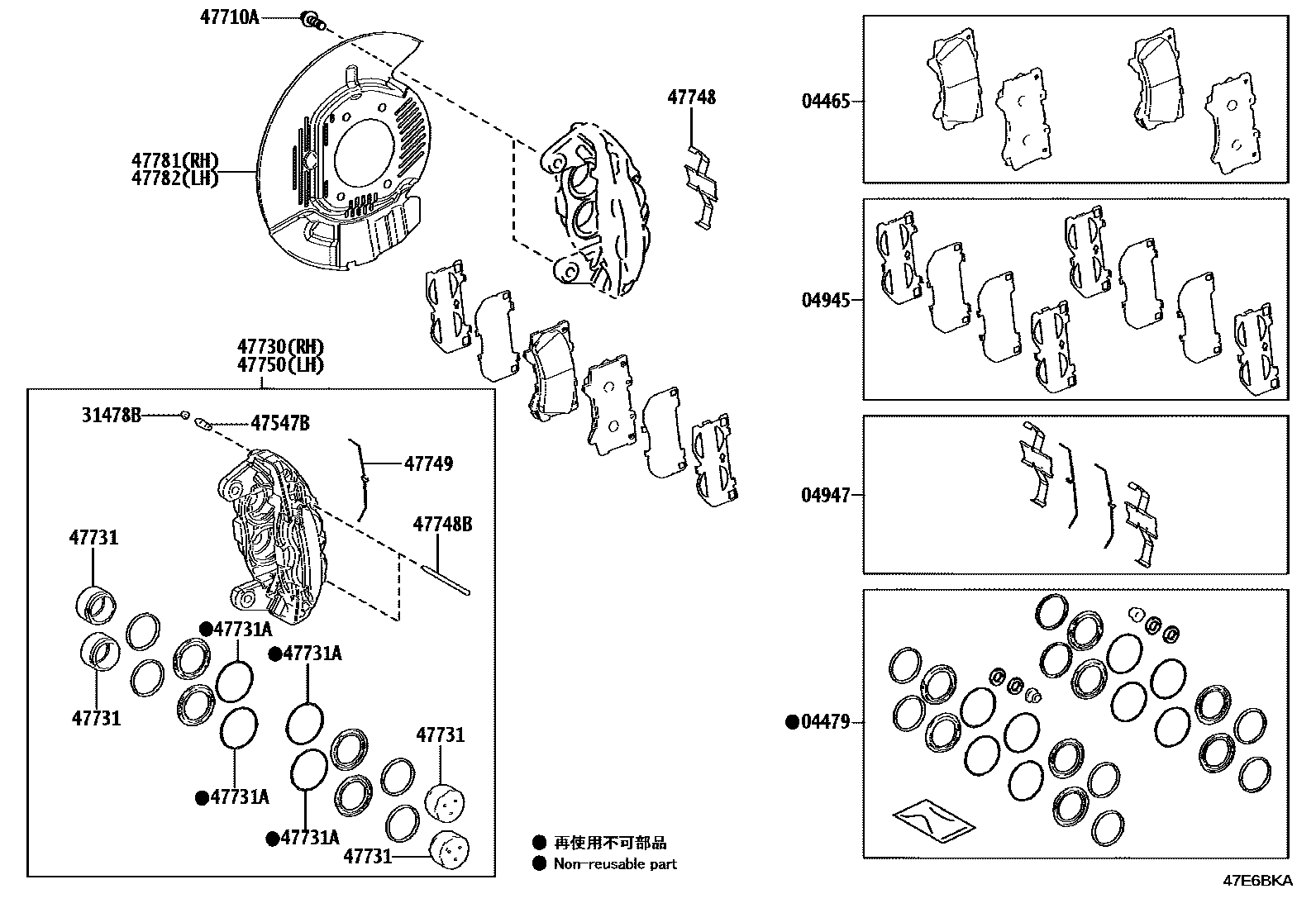

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iGDJ250..RHD..EUR202401-202509

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iGDJ250..RHD..EUR202401-202509

main04478-60100iTJA250,TRJ250202401

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iGDJ250..RHD..EUR202401-202509

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iGDJ250..RHD..EUR202401-202509

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGDJ250..RHD..EUR202401-202509

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

*14-1.5PX40-34

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60470iTJA250,TRJ250202401

main47730-60480iGDJ250..RHD..EUR202401-202509

47731PISTON, FRONT DISC BRAKE

main47731-60430iTJA250,TRJ250202401

main47731-60440iGDJ250..LHD..EUR;GDJ25#..ARL,GCC,GEN,RUS,SA202401-202509

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002iTJA250,TRJ250202401

main90522-56003iGDJ25#202401

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440iGDJ250..RHD..EUR202401-202509

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024iGDJ250..RHD..EUR202401-202509

47749CLIP, PIN HOLD

main47743-60280iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60470iTJA250,TRJ250202401

main47750-60480iGDJ250..RHD..EUR202401-202509

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60190iTJA250,TRJ250202401

main47781-60200iGDJ250..RHD..EUR202401-202509

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60210iTJA250,TRJ250202401

main47782-60220iGDJ250..RHD..EUR202401-202509

16 parts on this diagram · 1 diagram in section
