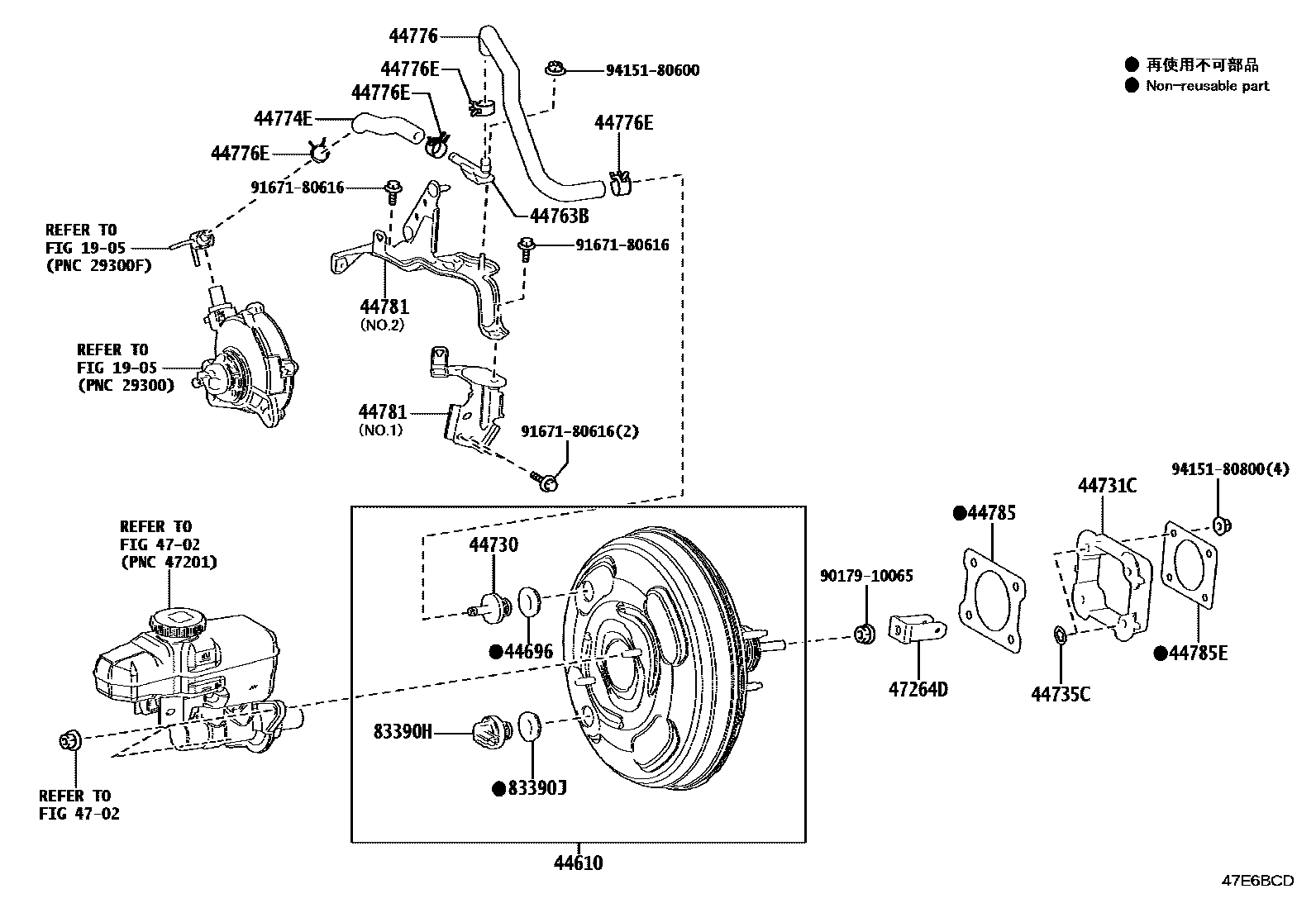

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44731CBRACKET, BRAKE BOOSTER
44735CRING, BOOSTER BRACKET STOPPER
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44776HOSE, BRAKE BOOSTER
44776ECLIP(FOR BRAKE BOOSTER HOSE)
44781BRACKET, HOSE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
44785EGASKET, BRAKE BOOSTER, NO.2
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390HSWITCH ASSY, VACUUM WARNING
83390JGROMMET, VACUUM WARNING SWITCH
9017910065
main90179-10065
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800
21 parts on this diagram · 5 diagrams in section
