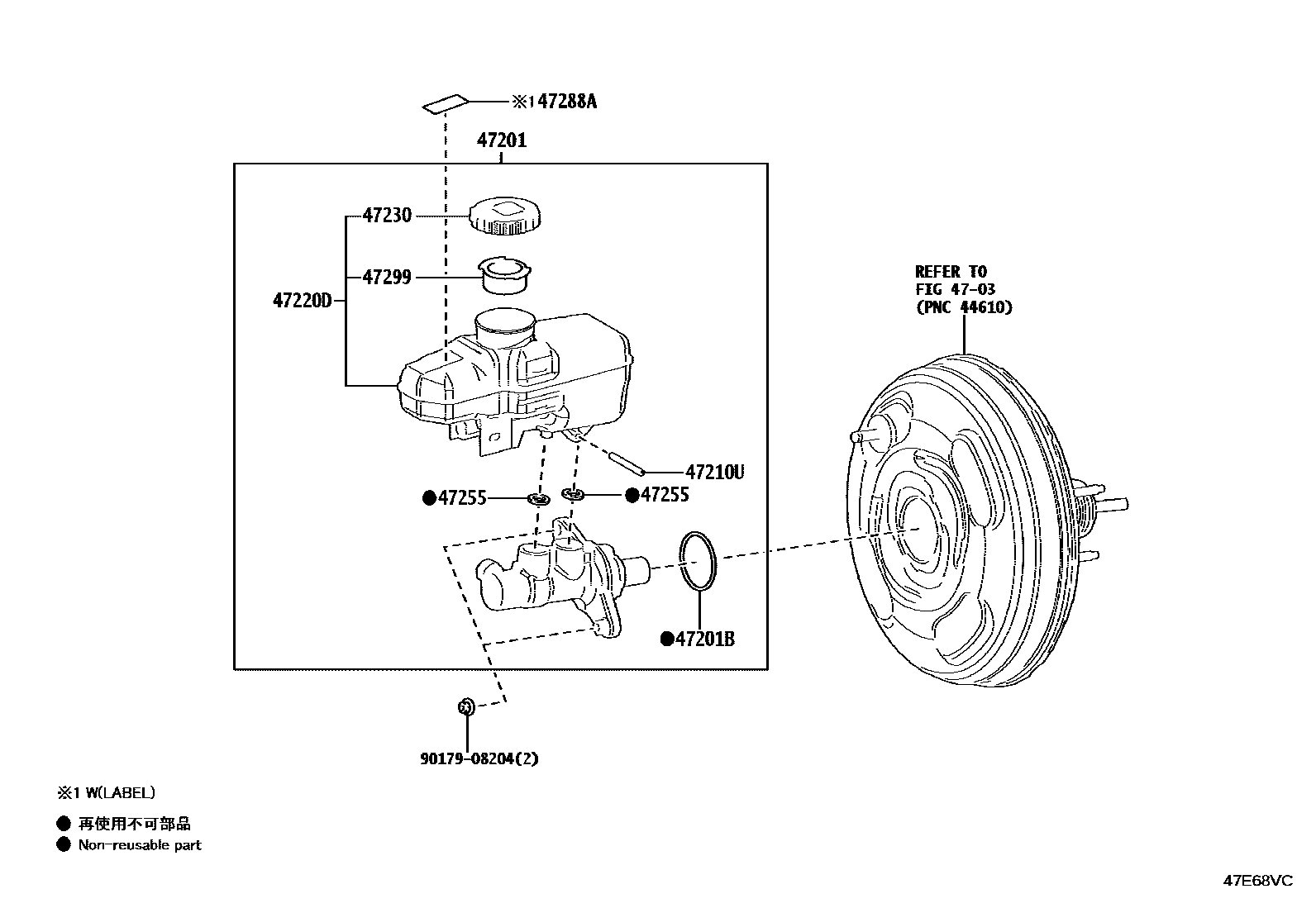

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60A80iTRJ250..RHD202401

main47201-60B10iGDJ250..RHD..EUR202401-202509

main47201-60B20iTRJ250..LHD202401

main47201-60B30iGDJ250,TJA250..LHD202401

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGDJ250..RHD..EUR202401-202509

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGDJ250..RHD..EUR202401-202509

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-60280iGDJ250..RHD..EUR202401-202509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGDJ250..RHD..EUR202401-202509

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGDJ250..LHD..EUR;GDJ250..GCC,GEN,RUS,SA202401-202509

sub90016-AT001

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iGDJ250,TRJ250..RUS;TJA250..(A,L)..RUS202401

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main47288-30010iGDJ250,TRJ250..RUS;TJA250..(A,L)..RUS202401

DESTINATION PACKAGE(ERP)-MOLDOVA SPEC

main47288-71010iGDJ250,TJA250..GCC202401

DESTINATION PACKAGE(OTHER-EGYPT SPEC

main47288-71010iGDJ250,TJA250..GCC202401

DESTINATION PACKAGE(OTHER

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGDJ250..RHD..EUR202401-202509

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
