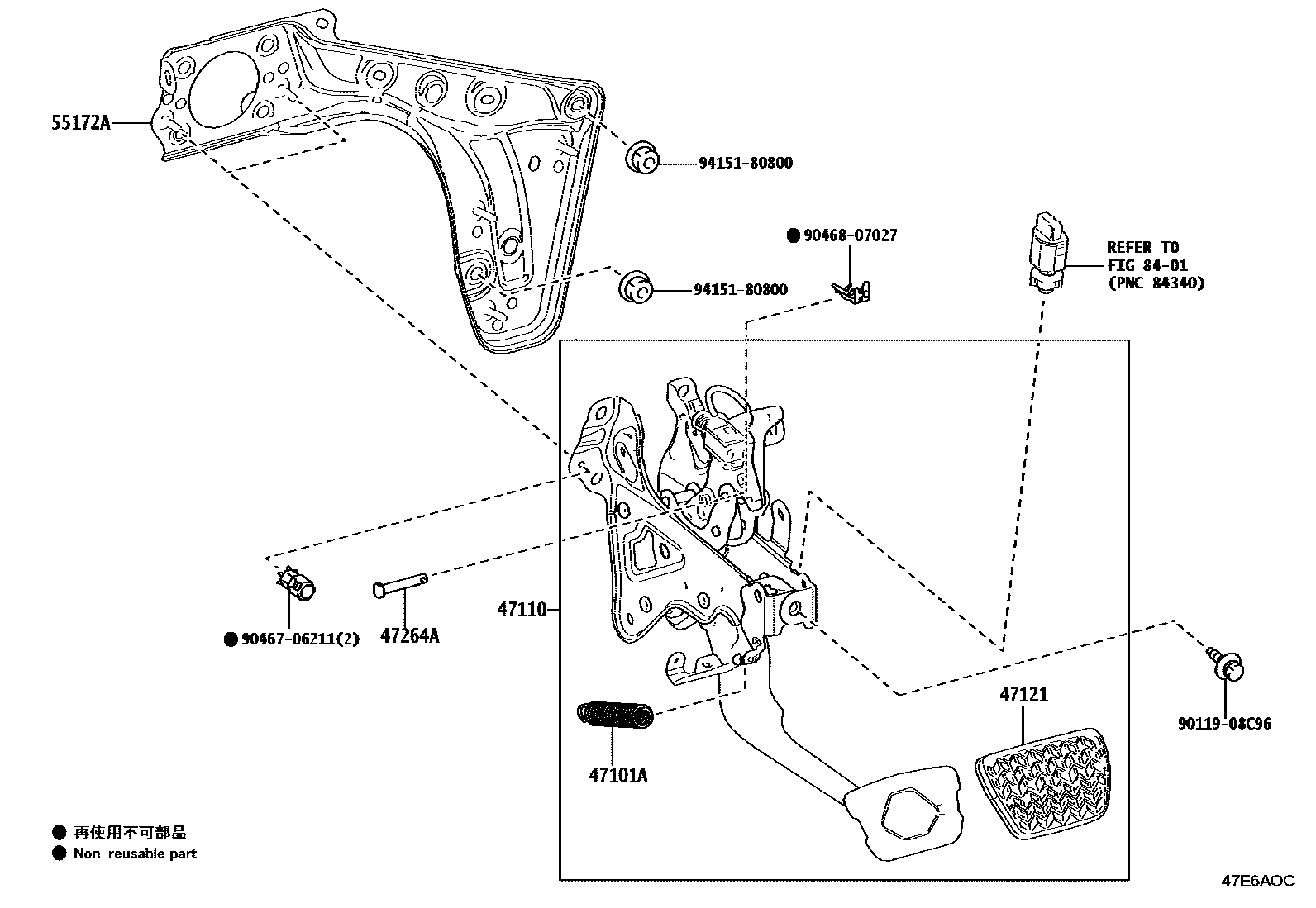

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-23029iGDJ250..RHD..EUR¥240202401-202509

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60671iGDJ250..RHD..EUR¥8,800202401-202509

main47110-60771iGDJ250,TJA250,TRJ250..LHD202401

47121PAD, BRAKE PEDAL

main47121-62010iGDJ250..RHD..EUR¥520202401-202509

47264APIN(FOR PUSH ROD)

main90240-06028iGDJ250..RHD..EUR¥90202401-202509

55172ABASE, BRAKE PEDAL SUPPORT

main55172-60061iGDJ250..RHD..EUR202401-202509

main55172-60070iGDJ250,TJA250,TRJ250..LHD202401

8401

9011908C96

main90119-08C96¥80

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

10 parts on this diagram · 2 diagrams in section
