STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,4#
DESTINATION PACKAGE(ERP)-GREENLAND SPEC&STEERING COLUMN-POWER TILT & TELESCOPIC, WITHOUT(LOCK),BLACK,TRIM2#,4#
DESTINATION PACKAGE(ERP)-MOROCCO SPEC&STEERING COLUMN-POWER TILT & TELESCOPIC, WITHOUT(LOCK),BLACK,TRIM2#,4#
DESTINATION PACKAGE(ERP)-ISRAEL SPEC&STEERING COLUMN-POWER TILT & TELESCOPIC, WITHOUT(LOCK),BLACK,TRIM2#,4#
DESTINATION PACKAGE(ERP)-REUNION SPEC&STEERING COLUMN-POWER TILT & TELESCOPIC, WITHOUT(LOCK),BLACK,TRIM2#,4#
DESTINATION PACKAGE(ERP)-SERBIA SPEC&STEERING COLUMN-POWER TILT & TELESCOPIC, WITHOUT(LOCK),BLACK,TRIM2#,4#
POWER DOOR LOCK-WITH(AUTO(SPEED,IGNITION)),DUBLE LOCK,BLACK,TRIM1#,2#,4#
POWER DOOR LOCK-WITH(AUTO(SPEED,IGNITION)),DUBLE LOCK,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
WIRELESS DOOR LOCK-SMART ENTRY,BLACK,TRIM2#
WIRELESS DOOR LOCK-SMART ENTRY(PANIC),BLACK,TRIM2#
BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
main45250-33D40iTRJ250..R..GEN;GDJ251,TJA250..A,R,U;GDJ250..LHD..(A,R)..GEN;GDJ250..RHD..(A,R,U)..(GEN,SA);GDJ250,TRJ250..LHD..(A,R,U)..(EUR,GCC,RUS)202401
WIRELESS DOOR LOCK-SMART ENTRY(PANIC)
WIRELESS DOOR LOCK-SMART ENTRY
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011910981
main90119-10981
9016450034
main90164-50034
9017810027
main90178-10027
91553A0616
main91553-A0616
9356855014
main93568-55014

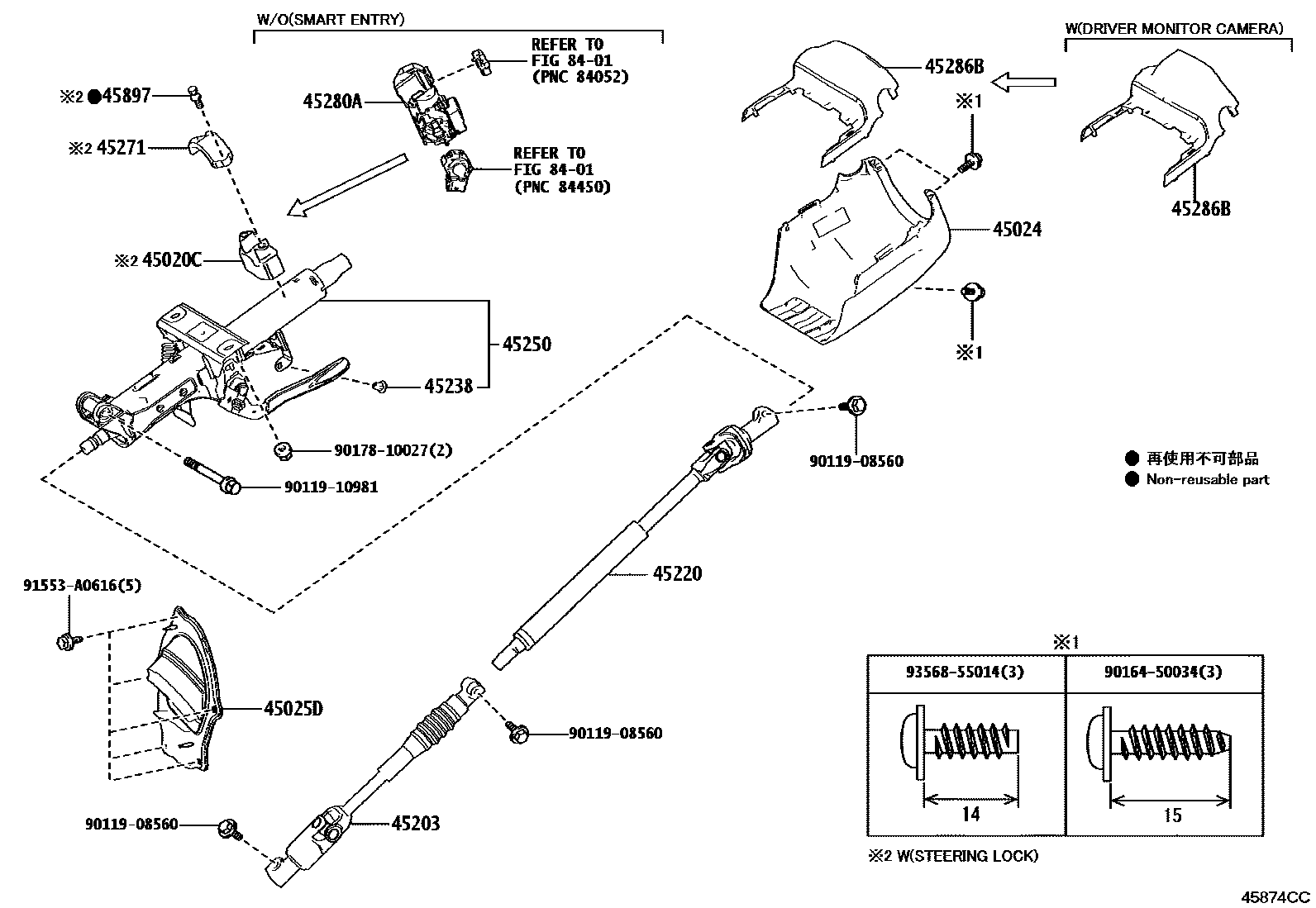

18 parts on this diagram · 4 diagrams in section
