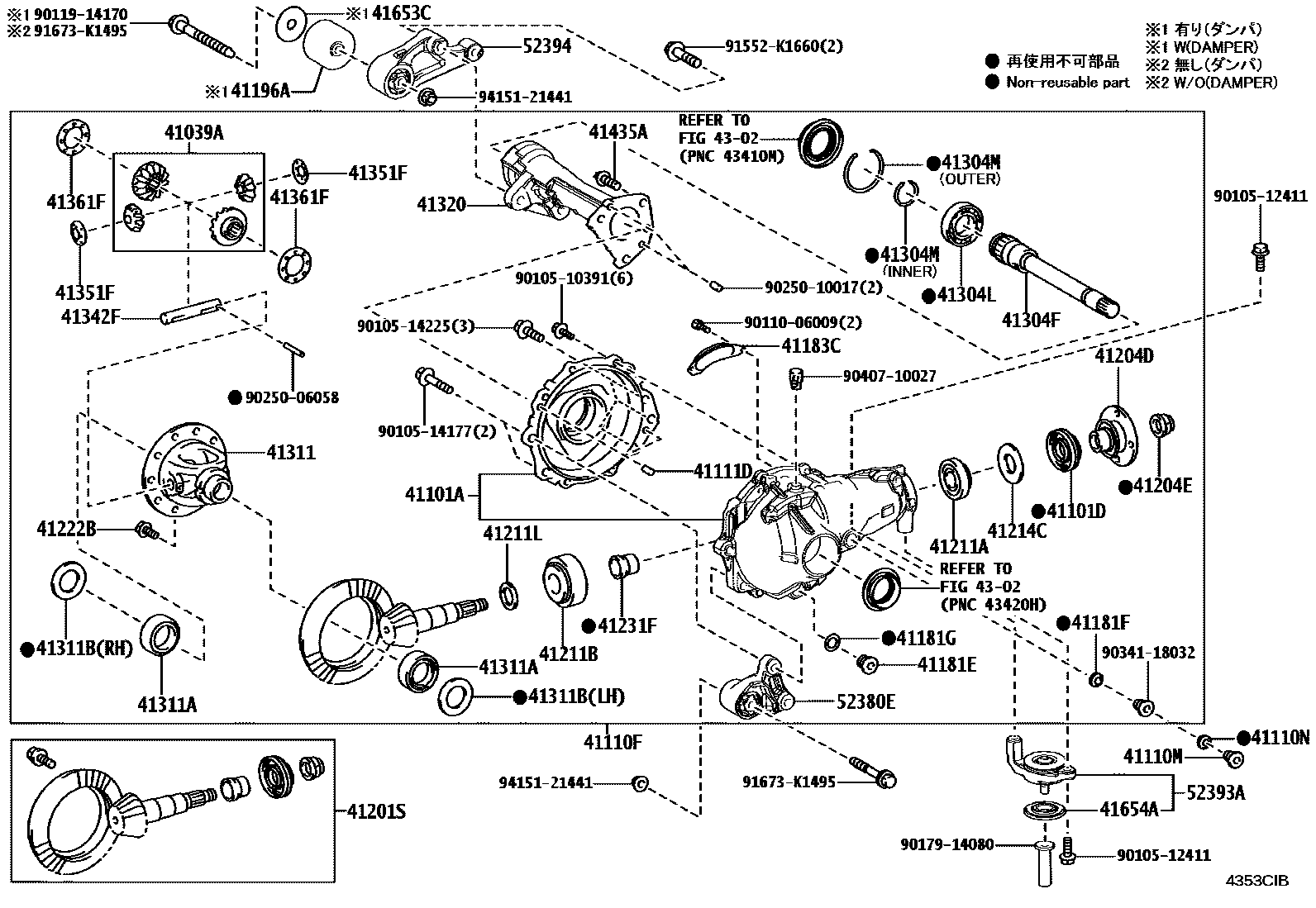

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039AGEAR KIT, DIFFERENTIAL

main41039-35010iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)¥8,100202401-202509

PNC.41311=MARK 3F

main41039-71040iGDJ250..RHD..EUR¥10,000202401-202509

PNC.41311=NO MARK

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35240iGDJ250..RHD..EUR202410-202509

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-41015iGDJ250..RHD..EUR¥610202401-202509

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-35E70iGDJ250..RHD..EUR¥123,000202401-202509

*FGR=43:12=3.583

main41110-60E30iGDJ250..6FC202405

*FGR=43:11=3.909

main41110-60E40iTRJ250¥117,000202401

*FGR=43:9=4.777

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iGDJ25#,TJA250,TRJ250¥210202401-202509

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iGDJ25#,TJA250,TRJ250¥100202401-202509

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iGDJ250..RHD..EUR¥130202401-202509

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-24014iGDJ250..RHD..EUR¥310202401-202509

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iGDJ250..RHD..EUR¥100202401-202509

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-24017iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥100202401-202509

41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL

main41183-35050iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)¥1,210202401-202509

main41183-35060iGDJ250,TRJ250..6FC¥250202401

41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC

main41196-60110iTRJ250;TJA250..A,L¥3,890202401

HIGH GRADE PACKAGE FOR AR

main41196-60110iTRJ250;TJA250..A,L¥3,890202401

MIDDLE GRADE PACKAGE FOR AR

41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-79505iGDJ250..RHD..EUR202401-202509

*FGR=43:12=3.583

main41201-80783iTRJ250¥43,300202401

*FGR=43:9=4.777

main41201-80785iGDJ250..6FC¥43,300202405

*FGR=43:11=3.909

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35140iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥4,240202401-202509

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90177-22003iGDJ250..RHD..EUR¥220202401-202509

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30129iGDJ250..RHD..EUR¥3,250202401-202509

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35087iGDJ250..RHD..EUR¥3,500202401-202509

41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)

main90201-35497iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=1.70

main90201-35498iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=1.73

main90201-35499iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=1.76

main90201-35500iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=1.79

main90201-35501iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=1.82

main90201-35502iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=1.85

main90201-35503iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=1.88

main90201-35504iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=1.91

main90201-35505iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=1.94

main90201-35506iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=1.97

main90201-35507iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=2.00

main90201-35508iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=2.03

main90201-35509iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=2.06

main90201-35510iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=2.09

main90201-35511iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=2.12

main90201-35512iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=2.15

main90201-35513iGDJ250..RHD..EUR¥180202401-202509

OD=47,T=2.18

main90201-35514iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥180202401-202509

OD=47,T=2.21

main90201-35515iGDJ250..RHD..EUR¥120202401-202509

OD=47,T=2.24,MARK 01

main90201-35516iGDJ250..RHD..EUR¥120202401-202509

OD=47,T=2.27,MARK 02

main90201-35517iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥120202401-202509

OD=47,T=2.30,MARK 03

main90201-35518iGDJ250..RHD..EUR¥120202401-202509

OD=47,T=2.33,MARK 04

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011iGDJ250..RHD..EUR¥280202401-202509

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90901-05002iGDJ250..RHD..EUR¥180202401-202509

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040iGDJ250..RHD..EUR¥590202401-202509

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-60050iGDJ250..RHD..EUR¥7,600202401-202509

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-49011iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥2,030202401-202509

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-46016iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥120202401-202509

INNER

main90521-77007iGDJ250..RHD..EUR¥120202401-202509

OUTER

41311CASE, FRONT DIFFERENTIAL

main41311-35090iGDJ250,TRJ250..6FC¥17,900202401

main41311-35100iGDJ250..RHD..EUR¥17,900202401-202509

MARK=3F

main41311-71030iGDJ250..RHD..EUR¥28,400202401-202509

NO MARK

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53001iTRJ250¥3,100202401-202404

PNC.41311=MARK 3F

main90366-53004iGDJ250..RHD..EUR¥3,100202401-202509

PNC.41311=NO MARK

main90366-53013iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)202404-202509

PNC.41311=MARK 3F

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.60,LH

main90564-50126iGDJ250..RHD..EUR¥240202401-202509

T=1.66,LH

main90564-50128iGDJ250..RHD..EUR¥240202401-202509

T=1.72,LH

main90564-50130iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.78,LH

main90564-50132iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.84,LH

main90564-50134iGDJ250..RHD..EUR¥310202401-202509

T=1.90,LH

main90564-50136iGDJ250..RHD..EUR¥310202401-202509

T=1.96,LH

main90564-50138iGDJ250..RHD..EUR¥310202401-202509

T=2.02,LH

main90564-50140iGDJ250..RHD..EUR¥310202401-202509

T=2.08,LH

main90564-50142iGDJ250..RHD..EUR¥310202401-202509

T=2.14,LH

main90564-50154iGDJ250..RHD..EUR¥240202401-202509

T=1.60,RH

main90564-50156iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.66,RH

main90564-50158iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.72,RH

main90564-50160iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.78,RH

main90564-50162iGDJ250..RHD..EUR¥240202401-202509

T=1.84,RH

main90564-50164iGDJ250..RHD..EUR¥240202401-202509

T=1.90,RH

main90564-50166iGDJ250..RHD..EUR¥240202401-202509

T=1.96,RH

main90564-50168iGDJ250..RHD..EUR¥240202401-202509

T=2.02,RH

main90564-50170iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.08,RH

main90564-50172iGDJ250..RHD..EUR¥310202401-202509

T=2.14,RH

main90564-50184iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.58,LH

main90564-50185iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.62,LH

main90564-50186iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.64,LH

main90564-50187iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.68,LH

main90564-50188iGDJ250..RHD..EUR¥240202401-202509

T=1.70,LH

main90564-50189iGDJ250..RHD..EUR¥240202401-202509

T=1.74,LH

main90564-50190iGDJ250..RHD..EUR¥310202401-202509

T=1.76,LH

main90564-50191iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.80,LH

main90564-50192iGDJ250..RHD..EUR¥310202401-202509

T=1.82,LH

main90564-50193iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.86,LH

main90564-50194iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.88,LH

main90564-50195iGDJ250..RHD..EUR¥310202401-202509

T=1.92,LH

main90564-50196iGDJ250..RHD..EUR¥310202401-202509

T=1.94,LH

main90564-50197iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.98,LH

main90564-50198iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.00,LH

main90564-50199iGDJ250..RHD..EUR¥310202401-202509

T=2.04,LH

main90564-50200iGDJ250..RHD..EUR¥310202401-202509

T=2.06,LH

main90564-50201iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.10,LH

main90564-50202iGDJ250..RHD..EUR¥310202401-202509

T=2.12,LH

main90564-50203iGDJ250..RHD..EUR¥310202401-202509

T=2.16,LH

main90564-50204iGDJ250..RHD..EUR¥240202401-202509

T=1.58,RH

main90564-50205iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.62,RH

main90564-50206iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.64,RH

main90564-50207iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.68,RH

main90564-50208iGDJ250..RHD..EUR¥240202401-202509

T=1.70,RH

main90564-50209iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.74,RH

main90564-50210iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.76,RH

main90564-50211iGDJ250..RHD..EUR¥310202401-202509

T=1.80,RH

main90564-50212iGDJ250..RHD..EUR¥240202401-202509

T=1.82,RH

main90564-50213iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.86,RH

main90564-50214iGDJ250..RHD..EUR¥310202401-202509

T=1.88,RH

main90564-50215iGDJ250..RHD..EUR¥310202401-202509

T=1.92,RH

main90564-50216iGDJ250..RHD..EUR¥310202401-202509

T=1.94,RH

main90564-50217iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=1.98,RH

main90564-50218iGDJ250..RHD..EUR¥310202401-202509

T=2.00,RH

main90564-50219iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.04,RH

main90564-50220iGDJ250..RHD..EUR¥310202401-202509

T=2.06,RH

main90564-50221iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.10,RH

main90564-50222iGDJ250..RHD..EUR¥310202401-202509

T=2.12,RH

main90564-50223iGDJ250..RHD..EUR¥310202401-202509

T=2.16,RH

main90564-50224iGDJ250..RHD..EUR¥240202401-202509

T=1.44,RH

main90564-50225iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.46,RH

main90564-50226iGDJ250..RHD..EUR¥240202401-202509

T=1.48,RH

main90564-50227iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.50,RH

main90564-50228iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥240202401-202509

T=1.52,RH

main90564-50229iGDJ250..RHD..EUR¥240202401-202509

T=1.54,RH

main90564-50230iGDJ250..RHD..EUR¥240202401-202509

T=1.56,RH

main90564-50231iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.18,LH

main90564-50232iGDJ250..RHD..EUR¥310202401-202509

T=2.20,LH

main90564-50233iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.22,LH

main90564-50234iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.24,LH

main90564-50235iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥310202401-202509

T=2.26,LH

main90564-50236iGDJ250..RHD..EUR¥310202401-202509

T=2.28,LH

main90564-50237iGDJ250..RHD..EUR¥310202401-202509

T=2.30,LH

41320TUBE ASSY, FRONT DIFFERENTIAL

main41321-60050iGDJ250..RHD..EUR¥8,700202401-202509

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-53020iGDJ250..RHD..EUR¥1,390202401-202509

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-35030iGDJ250..RHD..EUR¥120202401-202509

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-34010iGDJ250..RHD..EUR¥260202401-202509

T=1.50

main41361-34020iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥260202401-202509

T=1.55

main41361-34030iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥260202401-202509

T=1.60

main41361-34040iGDJ250..RHD..EUR¥260202401-202509

T=1.65

main41361-34050iGDJ250..RHD..EUR¥260202401-202509

T=1.70

main41361-34060iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥260202401-202509

T=1.75

main41361-34070iGDJ250..RHD..EUR¥260202401-202509

T=1.80

main41361-34080iGDJ250..RHD..EUR¥270202401-202509

T=1.85

main41361-34090iGDJ250..RHD..EUR¥280202401-202509

T=1.90

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12007iGDJ250..RHD..EUR¥120202401-202509

*12-1.25PX25-17.5

41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER

main41653-60130iTRJ250;TJA250..A,L¥470202401

HIGH GRADE PACKAGE FOR AR

main41653-60130iTRJ250;TJA250..A,L¥470202401

MIDDLE GRADE PACKAGE FOR AR

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60060iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥940202401-202509

4302

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-35060iGDJ250..LHD..EUR;GDJ25#,TJA250..ARL,GCC,GEN,RUS,SA¥5,800202401-202509

main52380-60280iTRJ250¥5,800202401

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-60230iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥5,800202401-202509

52394SUPPORT, FRONT DIFFERENTIAL, NO.3

main52380-60240iTRJ250¥5,800202401

main52380-60260iGDJ250..RHD..EUR¥9,500202401-202509

9010510391

main90105-10391¥170

9010512411

main90105-12411¥160

9010514177

main90105-14177¥310

9010514225

main90105-14225¥180

9011006009

main90110-06009¥70

9011914170

main90119-14170¥490

9017914080

main90179-14080¥400

9025006058

main90250-06058¥160

9025010017

main90250-10017¥130

9034118032

main90341-18032¥210

9040710027

main90407-10027¥160

91552K1660

main91552-K1660¥360

91673K1495

main91673-K1495¥360

9415121441

main94151-21441¥120

52 parts on this diagram · 2 diagrams in section
