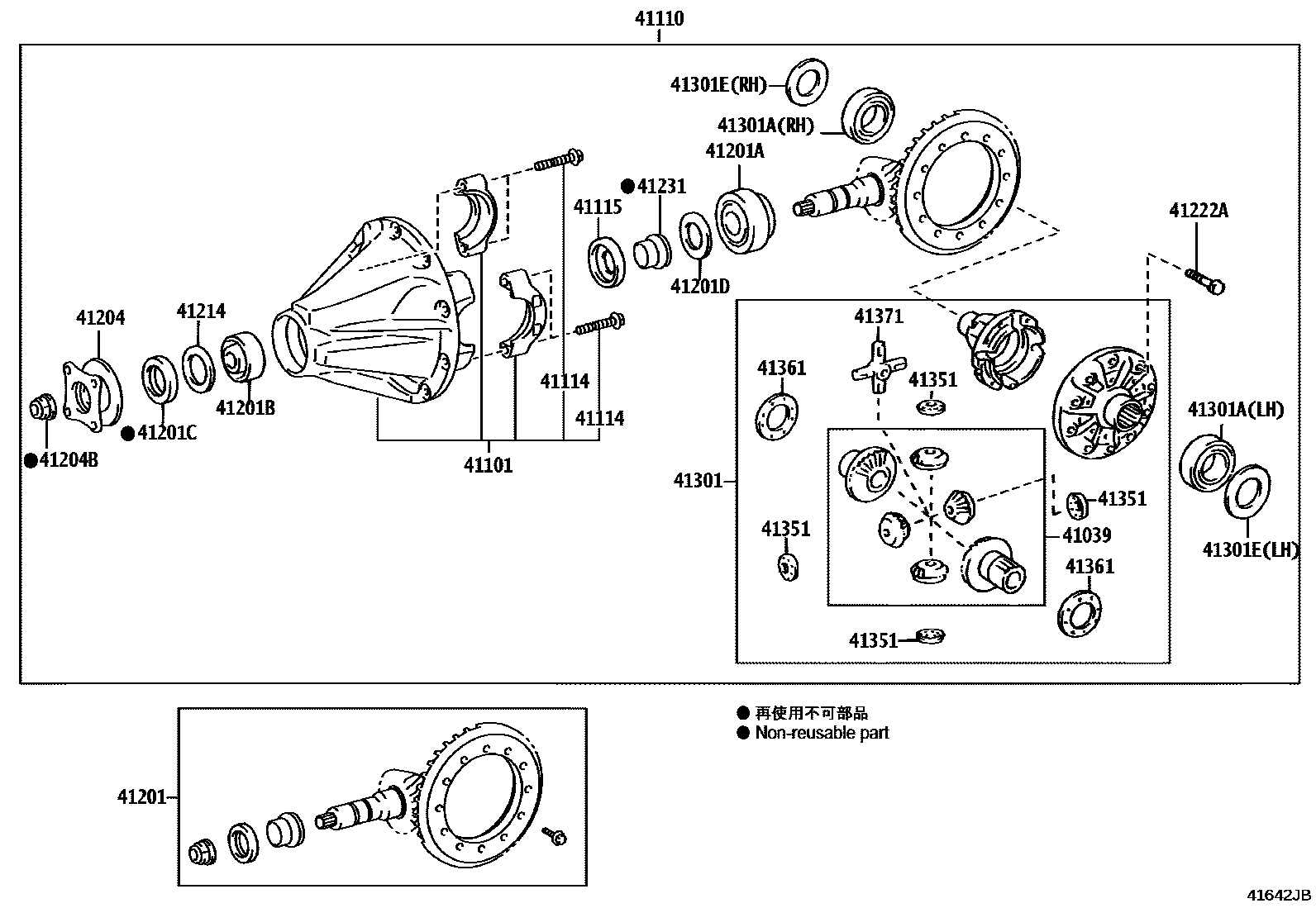

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1W(LSD) 0003 1W(ELECTRONIC DIFFERENTIAL LOC0004 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-35040iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-60240iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD)

main41101-60250iGDJ251,TJA250..U;GDJ250..LHD..8FC..U;GDJ250..RHD..8FC..U..GEN202401-202509

OPTION PACKAGE FOR UN&INTEGRATED SPORT DRIVING-3MODE

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60E50iGDJ250..RHD..(L,R,U)..EUR202401-202509

*FGR=43:12=3.583

main41110-60E60iGDJ250..RHD..A..EUR202401-202509

*FGR=43:12=3.583, OPTION PACKAGE FOR UN&INTEGRATED SPORT DRIVING-3MODE

main41110-60E60iGDJ250..RHD..A..EUR202401-202509

*FGR=43:12=3.583

main41110-60E80iTRJ250202401

*FGR=43:9=4.777

main41110-60E90iGDJ250..6FC202405

*FGR=43:11=3.909

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60010iGDJ250..RHD..EUR202401-202509

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35020iGDJ250..RHD..EUR202401-202509

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80908iGDJ250..6FC202405

*FGR=43:11=3.909

main41201-80909iTRJ250202401

*FGR=43:9=4.777

main41201-80910iGDJ250..RHD..EUR202401-202509

*FGR=43:12=3.583

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40132iGDJ250..RHD..EUR202401-202509

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35157iGDJ250..RHD..EUR202401-202509

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-44008iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-64062iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=1.85

main90564-64064iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=1.87

main90564-64066iGDJ250..RHD..EUR202401-202509

T=1.89

main90564-64068iGDJ250..RHD..EUR202401-202509

T=1.91

main90564-64070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=1.93

main90564-64072iGDJ250..RHD..EUR202401-202509

T=1.95

main90564-64074iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=1.97

main90564-64076iGDJ250..RHD..EUR202401-202509

T=1.99

main90564-64078iGDJ250..RHD..EUR202401-202509

T=2.01

main90564-64080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.03

main90564-64082iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.05

main90564-64084iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.07

main90564-64086iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.09

main90564-64088iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.11

main90564-64090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.13

main90564-64092iGDJ250..RHD..EUR202401-202509

T=2.15

main90564-64094iGDJ250..RHD..EUR202401-202509

T=2.17

main90564-64096iGDJ250..RHD..EUR202401-202509

T=2.19

main90564-64098iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.21

main90564-64100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.23

main90564-64102iGDJ250..RHD..EUR202401-202509

T=2.25

main90564-64104iGDJ250..RHD..EUR202401-202509

T=2.27

main90564-64106iGDJ250..RHD..EUR202401-202509

T=2.29

main90564-64108iGDJ250..RHD..EUR202401-202509

T=2.31

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-60130iGDJ250..RHD..EUR202401-202509

41204BNUT (FOR REAR DRIVE PINION)

main90179-22029iGDJ250..RHD..EUR202401-202509

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-35030iGDJ250..RHD..EUR202401-202509

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90105-11063iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-35050iGDJ250..RHD..EUR202401-202509

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60280iGDJ250..RHD..(L,R,U)..EUR202401-202509

main41301-60290iGDJ250,TRJ250..6FC202401

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50130iGDJ250..RHD..EUR202401-202509

LH

main90366-50166iGDJ250..RHD..EUR202401-202509

RH

41301ESHIM(FOR DIFFERENTIAL CASE)

main90564-59044iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.08,LH

main90564-59045iGDJ250..RHD..EUR202401-202509

T=2.10,LH

main90564-59046iGDJ250..RHD..EUR202401-202509

T=2.12,LH

main90564-59047iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.14,LH

main90564-59048iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.16,LH

main90564-59049iGDJ250..RHD..EUR202401-202509

T=2.18,LH

main90564-59050iGDJ250..RHD..EUR202401-202509

T=2.20,LH

main90564-59051iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.22,LH

main90564-59052iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.24,LH

main90564-59053iGDJ250..RHD..EUR202401-202509

T=2.26,LH

main90564-59054iGDJ250..RHD..EUR202401-202509

T=2.28,LH

main90564-59055iGDJ250..RHD..EUR202401-202509

T=2.30,LH

main90564-59056iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.32,LH

main90564-59057iGDJ250..RHD..EUR202401-202509

T=2.34,LH

main90564-59058iGDJ250..RHD..EUR202401-202509

T=2.36,LH

main90564-59059iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.38,LH

main90564-59060iGDJ250..RHD..EUR202401-202509

T=2.40,LH

main90564-59061iGDJ250..RHD..EUR202401-202509

T=2.42,LH

main90564-59062iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.44,LH

main90564-59063iGDJ250..RHD..EUR202401-202509

T=2.46,LH

main90564-59064iGDJ250..RHD..EUR202401-202509

T=2.48,LH

main90564-59065iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.50,LH

main90564-59066iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.52,LH

main90564-59067iTRJ250202401-202509

T=2.54,DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD)

main90564-59067iTRJ250202401-202509

T=2.54,LH

main90564-59067iTRJ250202401

T=2.54

main90564-59068iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.56,LH

main90564-59069iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.58,LH

main90564-59070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.60,LH

main90564-59071iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.62,LH

main90564-59072iGDJ250..RHD..EUR202401-202509

T=2.64,LH

main90564-59073iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.66,LH

main90564-59074iGDJ250..RHD..EUR202401-202509

T=2.68,LH

main90564-59151iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.06,RH

main90564-59152iGDJ250..RHD..EUR202401-202509

T=2.08,RH

main90564-59153iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.10,RH

main90564-59154iGDJ250..RHD..EUR202401-202509

T=2.12,RH

main90564-59155iGDJ250..RHD..EUR202401-202509

T=2.14,RH

main90564-59156iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.16,RH

main90564-59157iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.18,RH

main90564-59158iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.20,RH

main90564-59159iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.22,RH

main90564-59160iGDJ250..RHD..EUR202401-202509

T=2.24,RH

main90564-59161iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.26,RH

main90564-59162iGDJ250..RHD..EUR202401-202509

T=2.28,RH

main90564-59163iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.30,RH

main90564-59164iGDJ250..RHD..EUR202401-202509

T=2.32,RH

main90564-59165iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.34,RH

main90564-59166iGDJ250..RHD..EUR202401-202509

T=2.36,RH

main90564-59167iGDJ250..RHD..EUR202401-202509

T=2.38,RH

main90564-59168iGDJ250..RHD..EUR202401-202509

T=2.40,RH

main90564-59169iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.42,RH

main90564-59170iGDJ250..RHD..EUR202401-202509

T=2.44,RH

main90564-59171iGDJ250..RHD..EUR202401-202509

T=2.46,RH

main90564-59172iGDJ250..RHD..EUR202401-202509

T=2.48,RH

main90564-59173iGDJ250..RHD..EUR202401-202509

T=2.50,RH

main90564-59174iGDJ250..RHD..EUR202401-202509

T=2.52,RH

main90564-59175iGDJ250..RHD..EUR202401-202509

T=2.54,RH

main90564-59176iGDJ250..RHD..EUR202401-202509

T=2.56,RH

main90564-59177iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.58,RH

main90564-59178iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.60,RH

main90564-59179iGDJ250..RHD..EUR202401-202509

T=2.62,RH

main90564-59180iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

T=2.64,RH

main90564-59181iGDJ250..RHD..EUR202401-202509

T=2.66,RH

main90564-59182iGDJ250..RHD..EUR202401-202509

T=2.68,RH

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310iGDJ250..RHD..(L,R,U)..EUR202401-202509

T=0.9

main41361-35320iGDJ250..RHD..(L,R,U)..EUR202401-202509

T=1.0

main41361-35330iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401-202509

T=1.1

main41361-35340iGDJ250..RHD..(L,R,U)..EUR202401-202509

T=1.2

main41361-35350iGDJ250..RHD..(L,R,U)..EUR202401-202509

T=1.3

41371SPIDER, REAR DIFFERENTIAL

main41371-35040iGDJ250..RHD..(L,R,U)..EUR202401-202509

21 parts on this diagram · 4 diagrams in section
