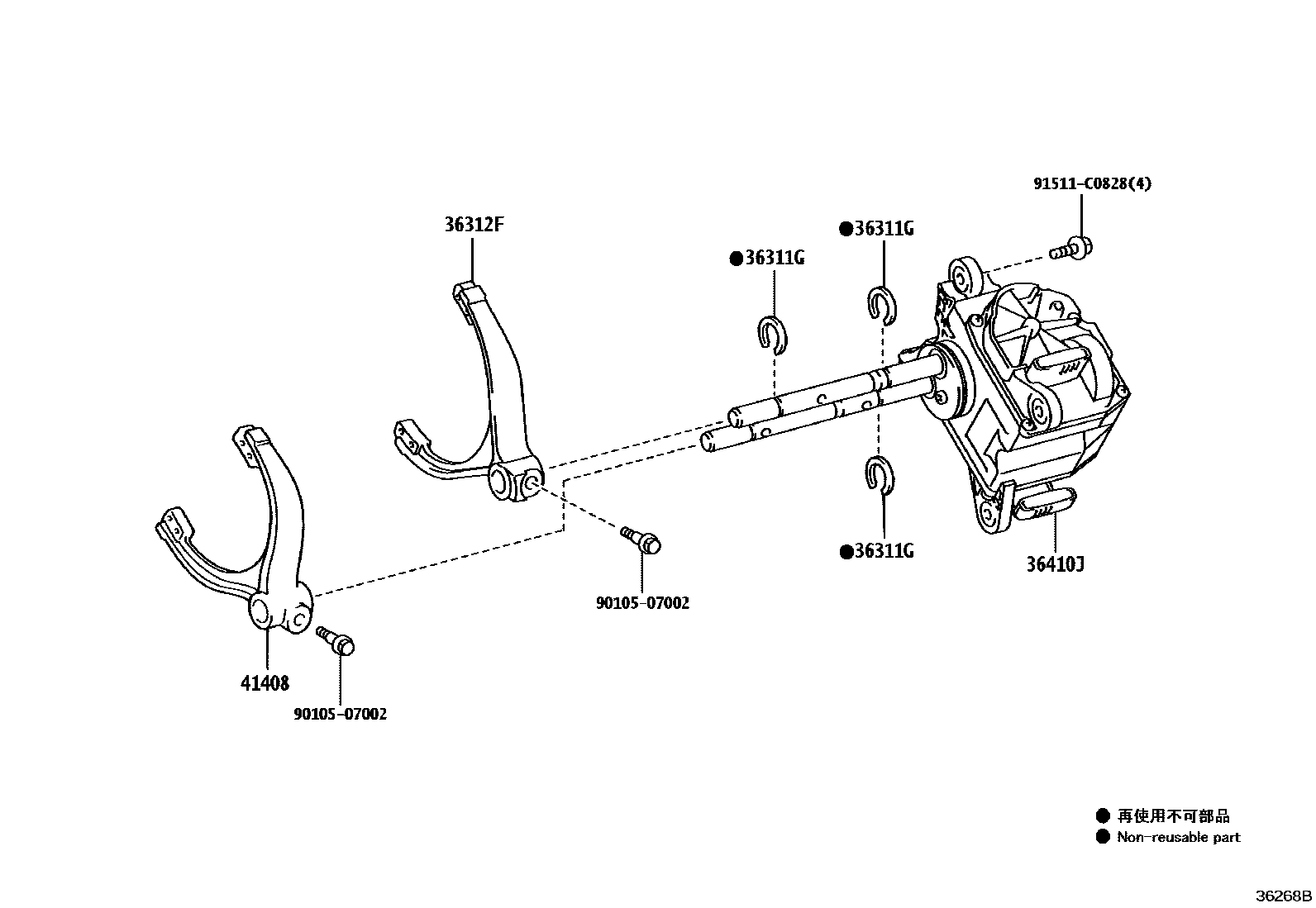

TRANSFER LEVER & SHIFT ROD

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGDJ250..RHD..EUR202401-202509

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-35020iGDJ250..RHD..EUR202401-202509

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-35110iGDJ250..RHD..EUR202401-202509

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60021iGDJ250..RHD..EUR202401-202509

9010507002

main90105-07002

91511C0828

main91511-C0828

6 parts on this diagram · 1 diagram in section
