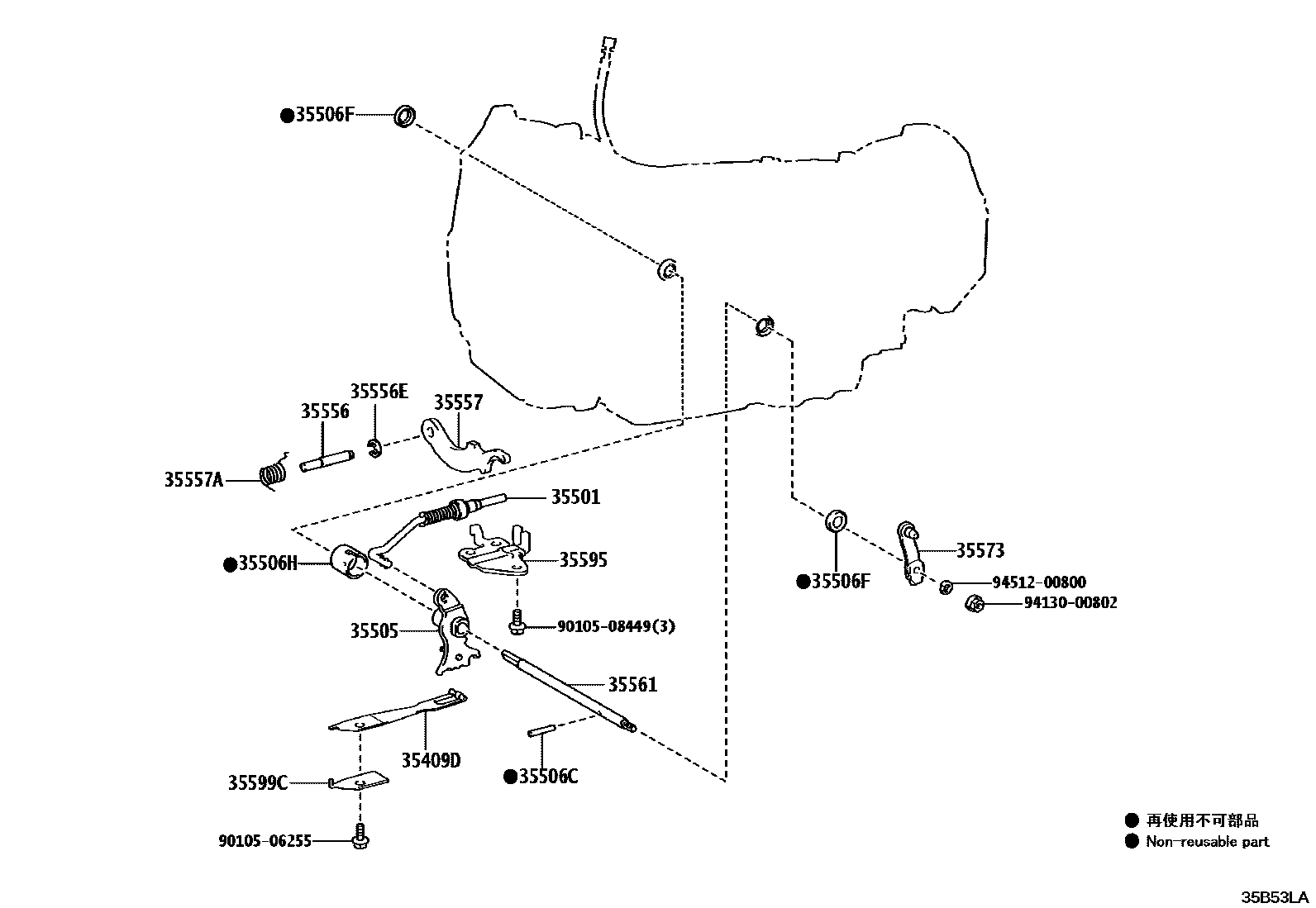

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AL80F 0002 1AC60F

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-22050iGDJ250..RHD..EUR¥580202401-202509

35501ROD SUB-ASSY, PARKING LOCK

main35501-60060iGDJ250..RHD..EUR¥2,140202401-202509

main35501-71020iGDJ250,TRJ250..6FC¥1,610202401

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26040iGDJ250,TRJ250..6FC¥1,430202401

main35505-60120iGDJ250..RHD..EUR¥1,420202401-202509

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGDJ250..RHD..EUR¥160202401-202509

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGDJ250..RHD..EUR¥270202401-202509

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGDJ250..RHD..EUR¥210202401-202509

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGDJ250..RHD..EUR¥380202401-202509

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGDJ250..RHD..EUR¥110202401-202509

35557PAWL, PARKING LOCK

main35557-60070iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)¥2,810202401-202509

main35557-71010iGDJ250,TRJ250..6FC¥2,810202401

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA¥120202401-202509

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGDJ250..RHD..EUR¥1,860202401-202509

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35100iGDJ250,TRJ250..6FC¥800202401

main35573-60050iGDJ250..RHD..EUR¥750202401-202509

35595BRACKET, PARKING LOCK PAWL

main35595-60060iGDJ250..RHD..EUR¥1,190202401-202509

main35595-71010iGDJ250,TRJ250..6FC¥800202401

35599CCOVER, MANUAL DETENT SPRING

main35599-22050iGDJ250..RHD..EUR¥190202401-202509

9010506255

main90105-06255¥60

9010508449

main90105-08449¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

18 parts on this diagram · 2 diagrams in section
