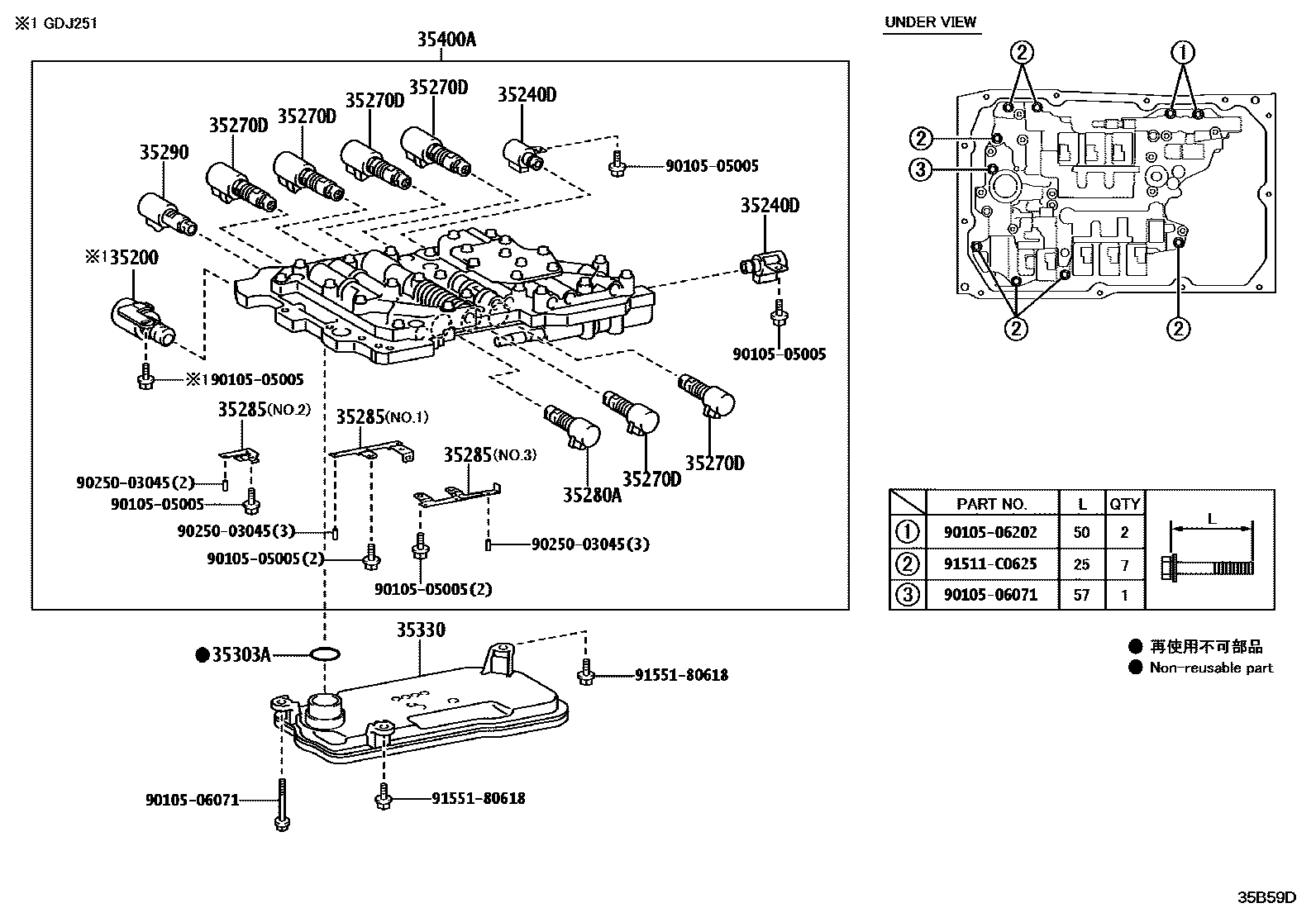

VALVE BODY & OIL STRAINER (ATM)
35200PUMP ASSY, OIL, W/SOLENOID
35240DVALVE, SOLENOID(SL)
35270DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35303ARING, O (FOR OIL STRAINER)
35330STRAINER ASSY, VALVE BODY OIL
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
9010505005
main90105-05005
9010506071
main90105-06071
9010506202
main90105-06202
9025003045
main90250-03045
91511C0625
main91511-C0625
9155180618
main91551-80618
15 parts on this diagram · 4 diagrams in section
