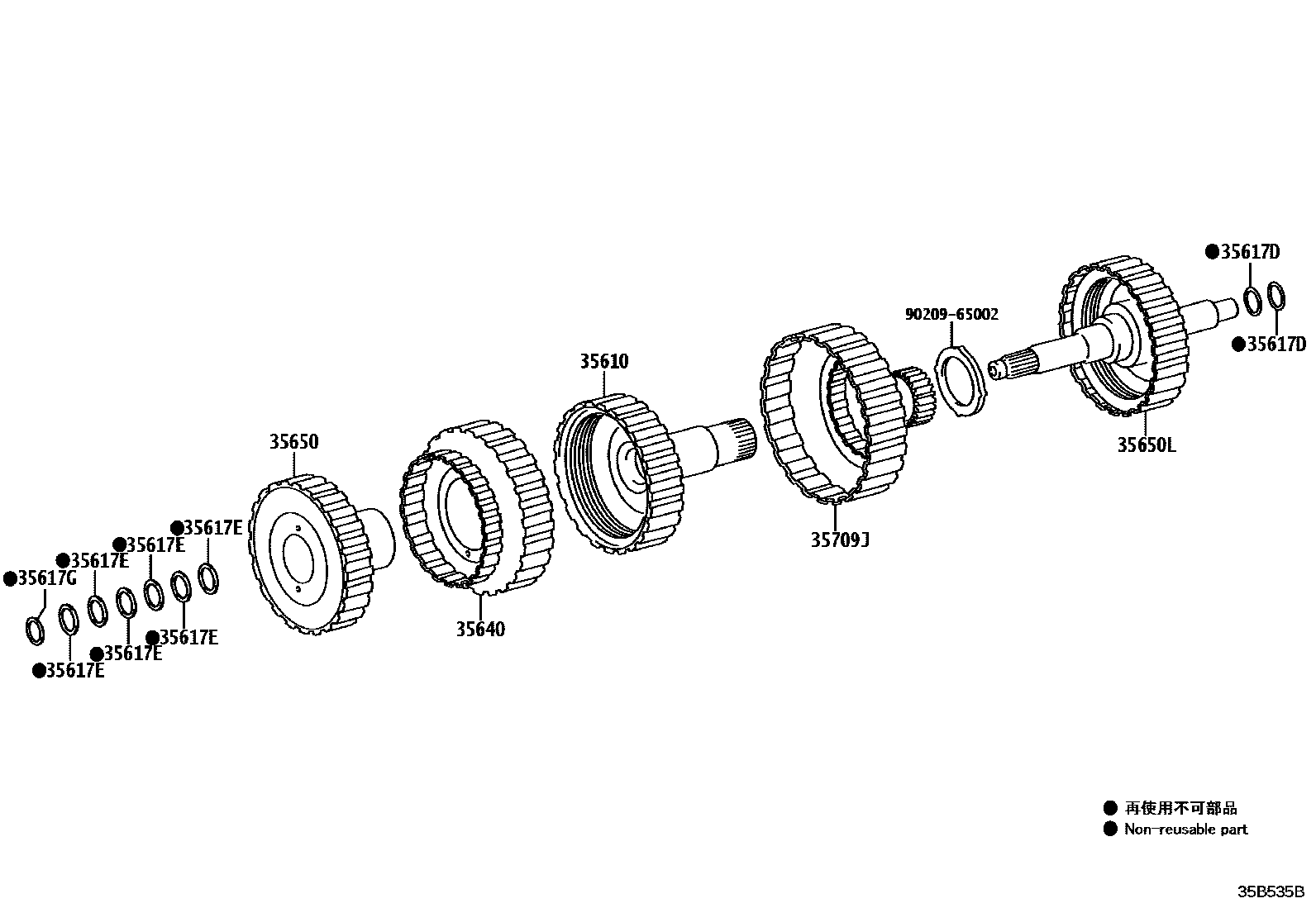

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1AL80F 0002 1AC60F

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-60200iGDJ250..RHD..EUR¥40,300202401-202509

35617DRING, CLUTCH DRUM OIL SEAL

main35617-60100iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)¥100202401-202509

35617ERING, CLUTCH DRUM OIL SEAL, NO.2

main35617-60140iGDJ250..RHD..EUR¥160202401-202509

35617GRING, CLUTCH DRUM OIL SEAL

main35617-60030iGDJ250..RHD..EUR¥100202401-202509

main35617-71010iGDJ250,TRJ250..6FC¥200202401

35640CLUTCH ASSY, C-3

main35640-60030iGDJ250..RHD..EUR202401-202509

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-60220iGDJ250..RHD..EUR¥43,600202401-202509

35650LCLUTCH ASSY, C-2

main35650-60210iGDJ250..LHD..EUR;GDJ25#,TJA250..8FC..(ARL,GCC,GEN,RUS,SA)¥43,900202401-202509

35709JDRUM SUB-ASSY, SUN GEAR INPUT

main35709-60100iGDJ250..RHD..EUR¥9,300202401-202509

main35709-71010iGDJ250,TRJ250..6FC¥11,800202401

9020965002

main90209-65002¥240

9 parts on this diagram · 2 diagrams in section
