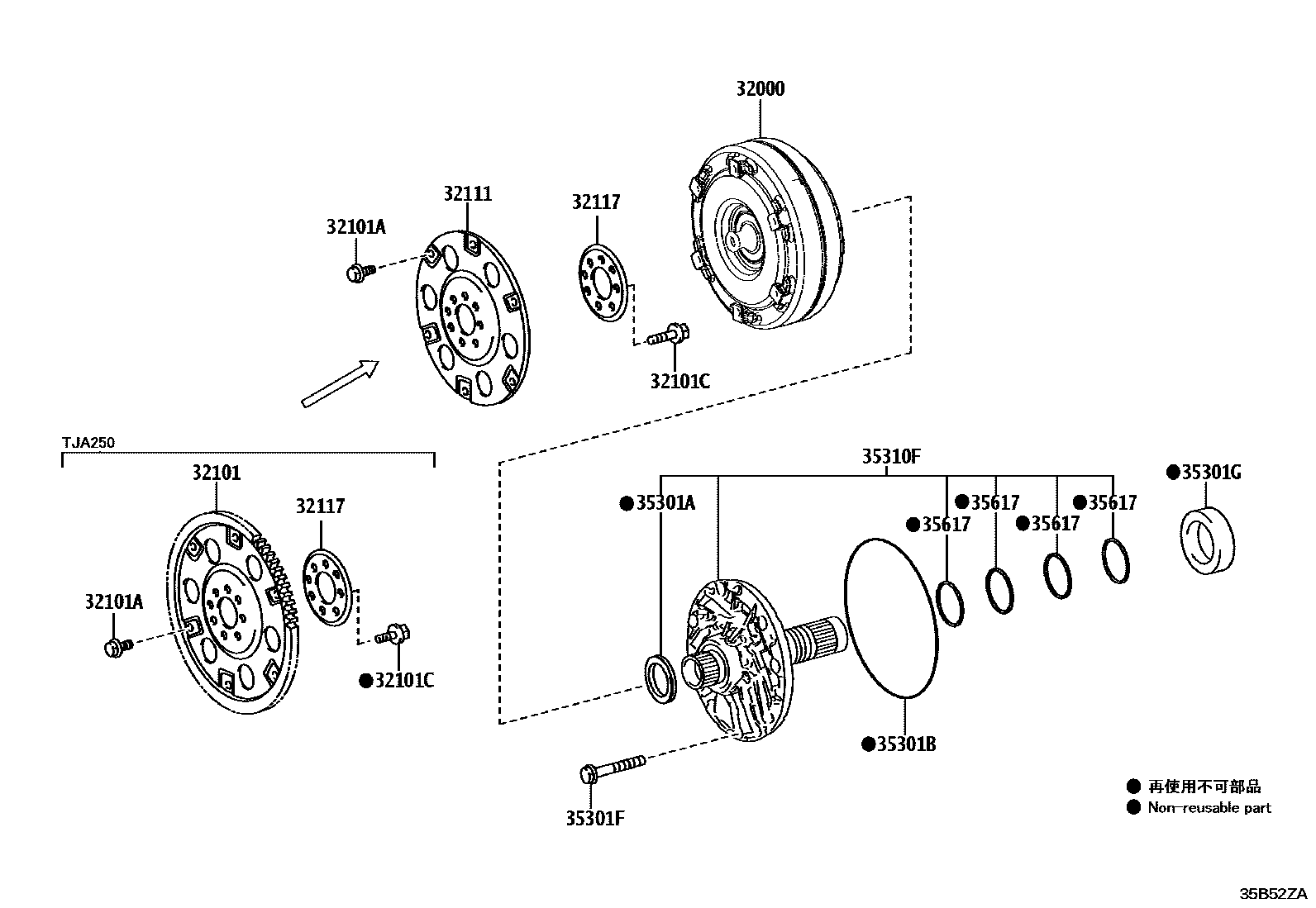

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AL80F 0002 1AC60F

32000CONVERTER ASSY, TORQUE

main32000-60410iGDJ250..RHD..EUR202401-202509

main32000-60420iTJA250202401

main32000-71050iTRJ250202401

main32000-71100iGDJ250..6FC202405

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTRJ250202401

main32101-60120iTJA250202401

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGDJ250..RHD..EUR202401-202509

*10-1.5PX11-8,SILVER WHITE

main90105-10546iGDJ250..LHD..EUR;GDJ25#..ARL,GCC,GEN,RUS,SA202401-202509

*10-1.5PX11-8,BLACK

main90119-09026iTJA250,TRJ250202401

*9-1.25PX12.8-9,BLACK

main90119-09027iTJA250,TRJ250202401

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTRJ250202401

*10-1.25PX30-17.5

main90105-12404iTJA250202401

*12-1.25PX20.3-14.3

main90105-13015iGDJ250..RHD..EUR202401-202509

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-71010iGDJ250..RHD..EUR202401-202509

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTRJ250202401

main32117-33010iTJA250202401

main32117-60050iGDJ250..LHD..EUR;GDJ25#..ARL,GCC,GEN,RUS,SA202401-202509

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGDJ250,TRJ250..6FC202401

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGDJ250,TRJ250..6FC202401

main90311-43014iGDJ250..RHD..EUR202401-202509

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGDJ250..RHD..EUR202401-202509

*8-1.25PX35-35

35301GBEARING,NEEDLE ROLLER

main90364-49008iGDJ250..RHD..EUR202401-202509

35310FPUMP ASSY, FRONT OIL

main35310-60140iGDJ250..RHD..EUR202401-202509

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGDJ250,TRJ250..6FC202401

main35617-60130iGDJ250..RHD..EUR202401-202509

13 parts on this diagram · 2 diagrams in section
