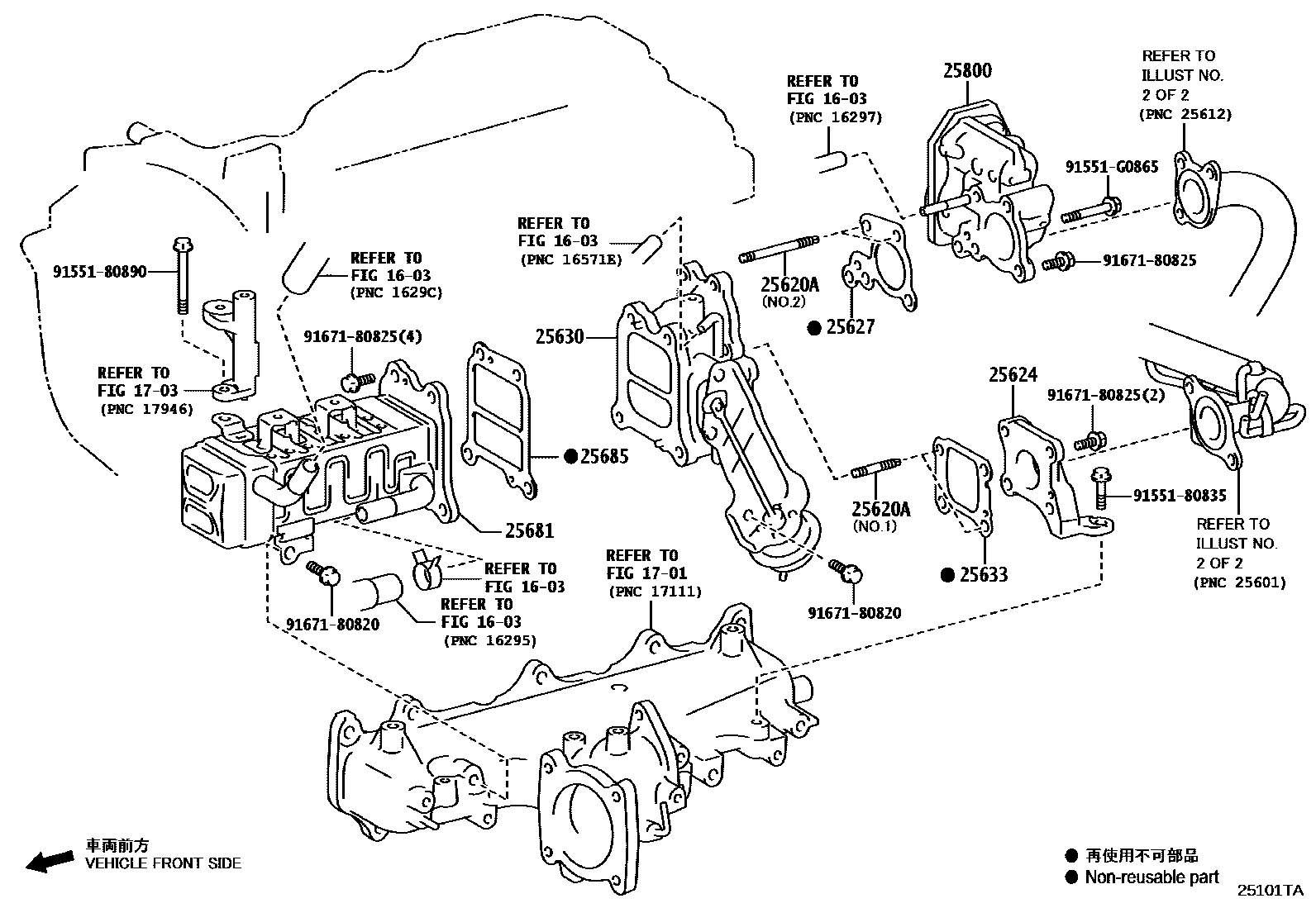

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
1703
25620ABOLT, STUD(FOR EGR VALVE)
NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.1
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.1
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.1
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS),NO.1
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE,NO.1
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS),NO.1
EXHAUST EMISSION CONTROL-EURO6-RDE,NO.1
NO.1
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),NO.1
COLD AREA SPEC,NO.1
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),NO.1
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),NO.1
NO.2
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.2
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.2
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.2
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),NO.2
COLD AREA SPEC,NO.2
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),NO.2
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS),NO.2
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE,NO.2
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS),NO.2
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS),NO.2
EXHAUST EMISSION CONTROL-EURO6-RDE,NO.2
25624ADAPTER, EGR VALVE
main25607-35010i1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..(A,L,R)..GEN;1GDFTV..GDJ250..LHD..8FC..U..GEN202401
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25627GASKET, EGR VALVE
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25630VALVE ASSY, EGR, NO.2
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25633GASKET, EGR VALVE
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25681COOLER, EGR, NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25685GASKET, EGR COOLER, NO.1
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
25800VALVE ASSY, ELECTRIC EGR CONTROL
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
9155180835
main91551-80835
9155180890
main91551-80890
91551G0865
main91551-G0865
9167180820
main91671-80820
9167180825
main91671-80825
16 parts on this diagram · 3 diagrams in section
