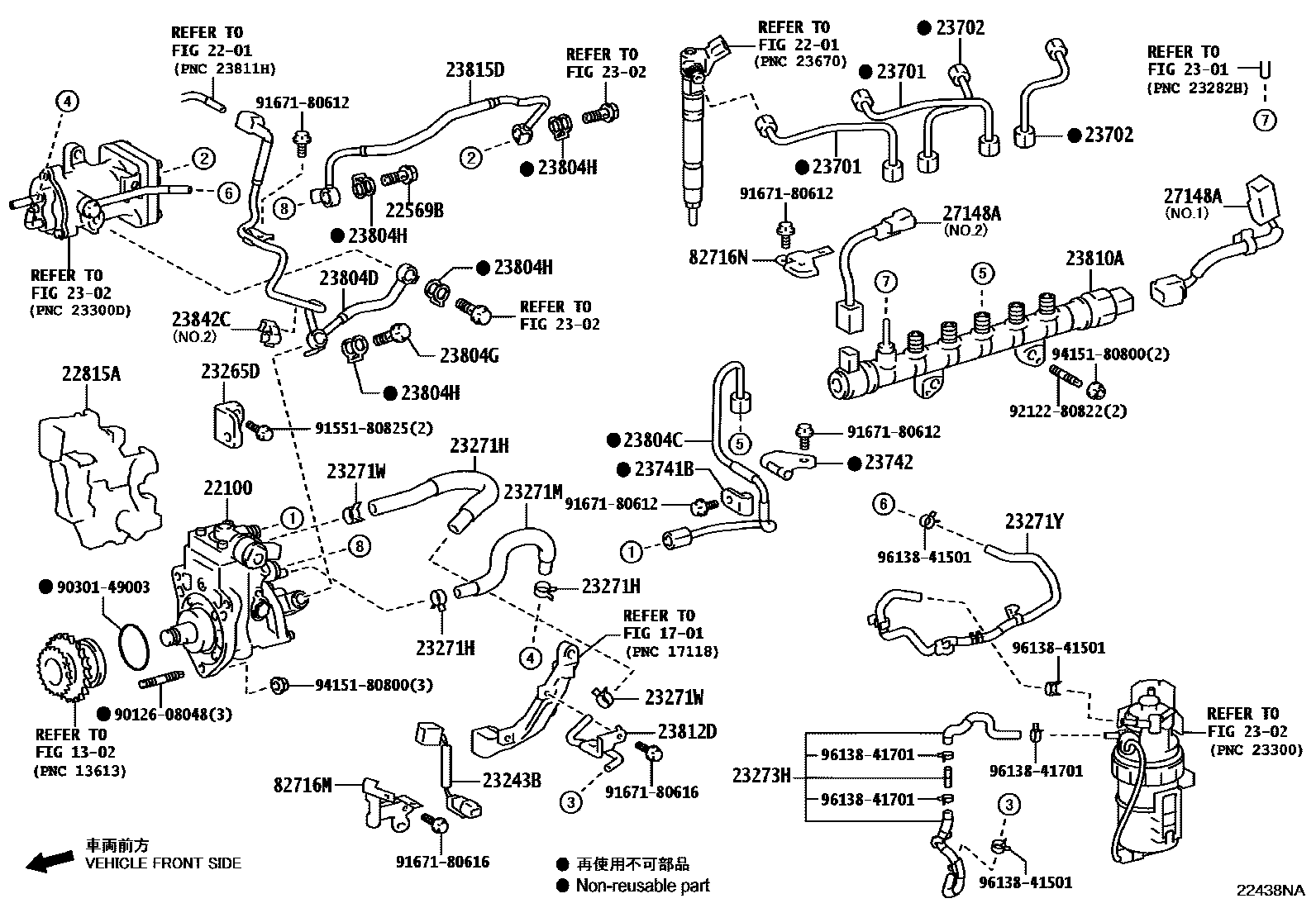

INJECTION PUMP ASSEMBLY
1302
1701
2201
22100PUMP ASSY, INJECTION OR SUPPLY
22569BSCREW, SUPPLY PUMP HOLLOW
22815AINSULATOR, INJECTION PUMP
2301
2302
23243BWIRE, FUEL PUMP MOTOR
23265DBRACKET, FUEL PUMP, NO.1
23271HHOSE, FUEL, NO.1
23271MHOSE, FUEL
23271WCLIP(FOR FUEL HOSE NO.1)
23271YHOSE, FUEL
23273HHOSE, FUEL, NO.2
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23741BCLAMP, INJECTION PIPE
23742CLAMP, INJECTION PIPE, NO.2
23804CPIPE SUB-ASSY, FUEL INLET
23804DPIPE SUB-ASSY, FUEL, NO.4
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
23804GBOLT, UNION(FOR FUEL PIPE NO.4)
23804HGASKET(FOR FUEL PIPE)
23810ARAIL ASSY, COMMON
23812DPIPE, FUEL, NO.2
23815DPIPE, FUEL, NO.3
23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
27148AWIRE, CONNECTING
82716MBRACKET, WIRING HARNESS CLAMP, NO.1
82716NBRACKET, WIRING HARNESS CLAMP, NO.2
9012608048
main90126-08048
9030149003
main90301-49003
9155180825
main91551-80825
9167180612
main91671-80612
9167180616
main91671-80616
9212280822
main92122-80822
9415180800
main94151-80800
9613841501
main96138-41501
9613841701
main96138-41701
39 parts on this diagram · 1 diagram in section
