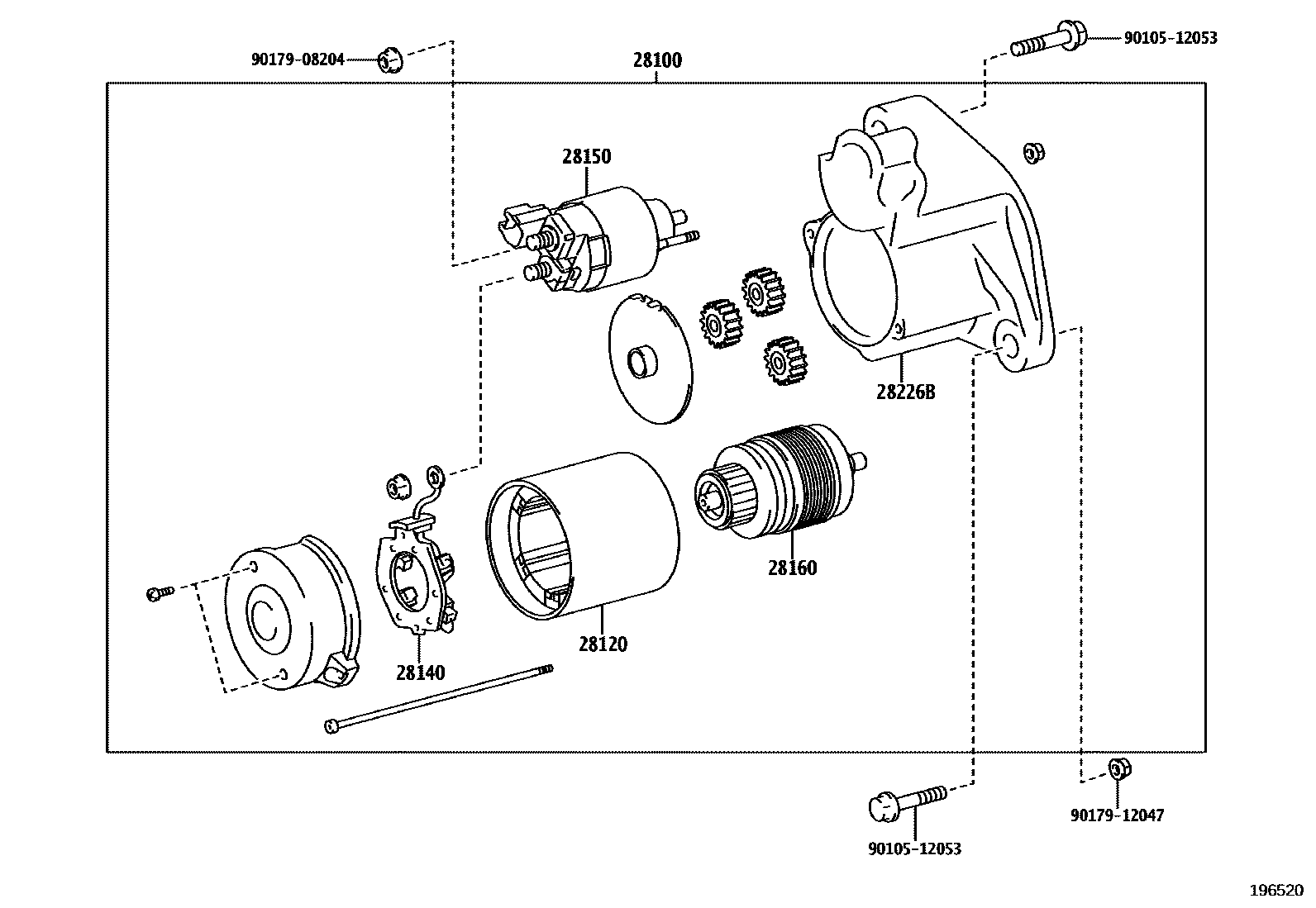

STARTER

0001 112V 2.0KW 0002 112V 2.7KW 0003 112V 2.0KW 0004 112V 1.4KW 0005 112V 1.7KW 0006 148V

28100STARTER ASSY

main28100-11190i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401-202509

12V 2.0KW

main28100-11220i1GDFTV..GDJ250..LHD..(EUR,GEN)202401

12V 2.7KW

main28100-11220i1GDFTV..GDJ250..RUS202401

12V 2.7KW,COLD AREA SPEC

main28100-75091i2TRFE..TRJ250..GCC,GEN202401

12V 1.4KW

main28100-75120i2TRFE..TRJ250..LHD..GEN202401-202412

12V 2.0KW,COLD AREA SPEC

main28100-75120i2TRFE..TRJ250..LHD..GEN202401-202412

12V 2.0KW

main28100-75240i2TRFE..TRJ250..LHD..GEN202501

12V 2.0KW,COLD AREA SPEC

main28100-75240i2TRFE..TRJ250..RUS202501

12V 2.0KW

main28100-F0100iT24..TJA250202401

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDJ250..RHD..EUR202401-202509

main28120-54380i2TRFE..TRJ250..RUS202401

COLD AREA SPEC

main28120-66040i2TRFE..TRJ250..GCC,GEN202401

main28120-67020i1GDFTV..GDJ250..RUS202401

COLD AREA SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDJ250..RHD..EUR202401-202509

main28140-54380i2TRFE..TRJ250..RUS202401-202501

COLD AREA SPEC

main28140-62030i2TRFE..TRJ250..RUS202501

COLD AREA SPEC

main28140-76070i2TRFE..TRJ250..GCC,GEN202401

main28140-77090i1GDFTV..GDJ250..RUS202401

COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1GDFTV..GDJ250..RUS202401

COLD AREA SPEC

main28150-40090i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401-202509

main28150-75120i2TRFE..TRJ250..RUS202401

COLD AREA SPEC

main28150-75130i2TRFE..TRJ250..GCC,GEN202401

28160ARMATURE ASSY, STARTER

main28160-37100i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,SA202401-202509

main28160-54140i1GDFTV..GDJ250..RUS202401

COLD AREA SPEC

main28160-74070i2TRFE..TRJ250..GCC,GEN202401

main28160-75120i2TRFE..TRJ250..RUS202401

COLD AREA SPEC

28226BSTARTER KIT, REPAIR SERVICE

main28226-0L180i1GDFTV..GDJ250..RHD..EUR202401-202509

9010512053

main90105-12053

9017908204

main90179-08204

9017912047

main90179-12047

9 parts on this diagram · 6 diagrams in section
