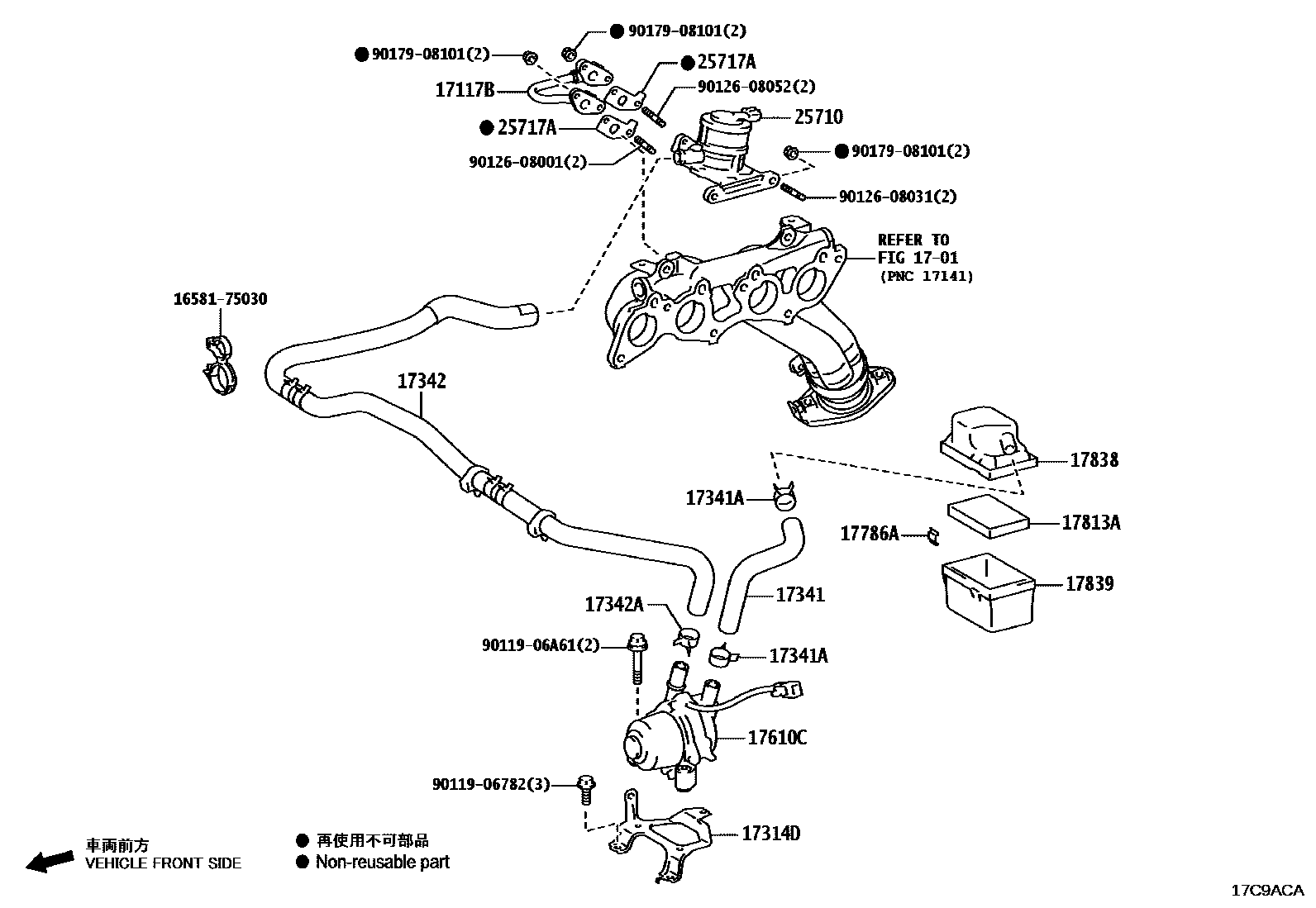

MANIFOLD AIR INJECTION SYSTEM

1701

17117BPIPE, INTAKE, NO.4

main17117-75020i2TRFE..TRJ250202401

17314DBRACKET, AIR PUMP, NO.1

main17314-75010i2TRFE..TRJ250202401

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-75210i2TRFE..TRJ250202401

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96138-42701i2TRFE..TRJ250202401

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-75050i2TRFE..TRJ250202401

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main96138-42701i2TRFE..TRJ250202401

17610CPUMP ASSY, AIR

main17610-0W030i2TRFE..TRJ250..RUS202401

ENGINE-2TR-FE WITH(HEATER)

main17610-0W040i2TRFE..TRJ250..GCC,GEN202401

17786ACLAMP, AIR CLEANER

main17786-31010i2TRFE..TRJ250202401

17813APREFILTER

main17813-31010i2TRFE..TRJ250202401

17838CASE, FILTER ELEMENT, UPPER

main17838-31010i2TRFE..TRJ250202401

17839CASE, FILTER ELEMENT, LOWER

main17839-31010i2TRFE..TRJ250202401

25710VALVE ASSY, AIR SWITCHING

main25710-75015i2TRFE..TRJ250202401

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i2TRFE..TRJ250202401

1658175030CLAMP, HOSE(FOR WATER HOSE)

main16581-75030

9011906782

main90119-06782

9011906A61

main90119-06A61

9012608001

main90126-08001

9012608031

main90126-08031

9012608052

main90126-08052

9017908101

main90179-08101

21 parts on this diagram · 1 diagram in section
