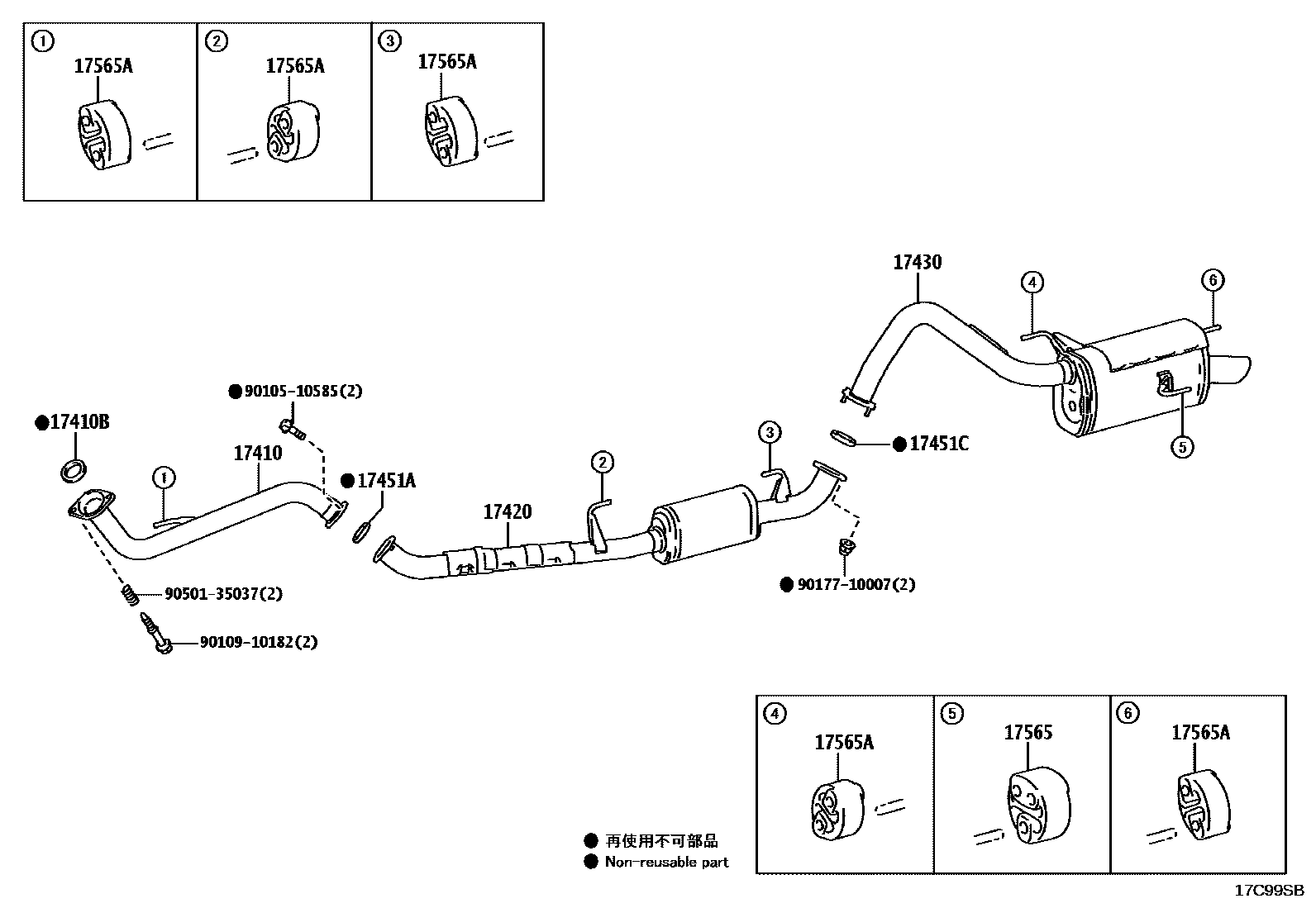

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
sub17410-11C41
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
sub17410-11C41
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
*114=TOYOTA/H56/Y
*114=TOYOTA/H56/Y,DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV
17410BGASKET, EXHAUST PIPE
main17451-22070i1GDFTV..GDJ250..LHD..EUR;1GDFTV,2TRFE..GDJ25#,TRJ250..ARL,GCC,GEN,RUS,SA202401-202509
17420PIPE ASSY, EXHAUST, CENTER
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ONBOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
DESTINATION PACKAGE(OTHER
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST EMISSION CONTROL-EURO6-RDE
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&FUEL TANK-110L
DESTINATION PACKAGE(OTHER&FUEL TANK-110L
DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FUEL TANK-110L
FUEL TANK-110L
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
FUEL TANK-110L
DESTINATION PACKAGE(ERP)-TAJIKISTAN SPEC&ENGINE-T24A-FTS&FUEL TANK-110L
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC&ENGINE-T24A-FTS&FUEL TANK-110L
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
9010510585
main90105-10585
9010910182
main90109-10182
9017710007
main90177-10007
9050135037
main90501-35037
13 parts on this diagram · 6 diagrams in section
