ENGINE OIL PUMP

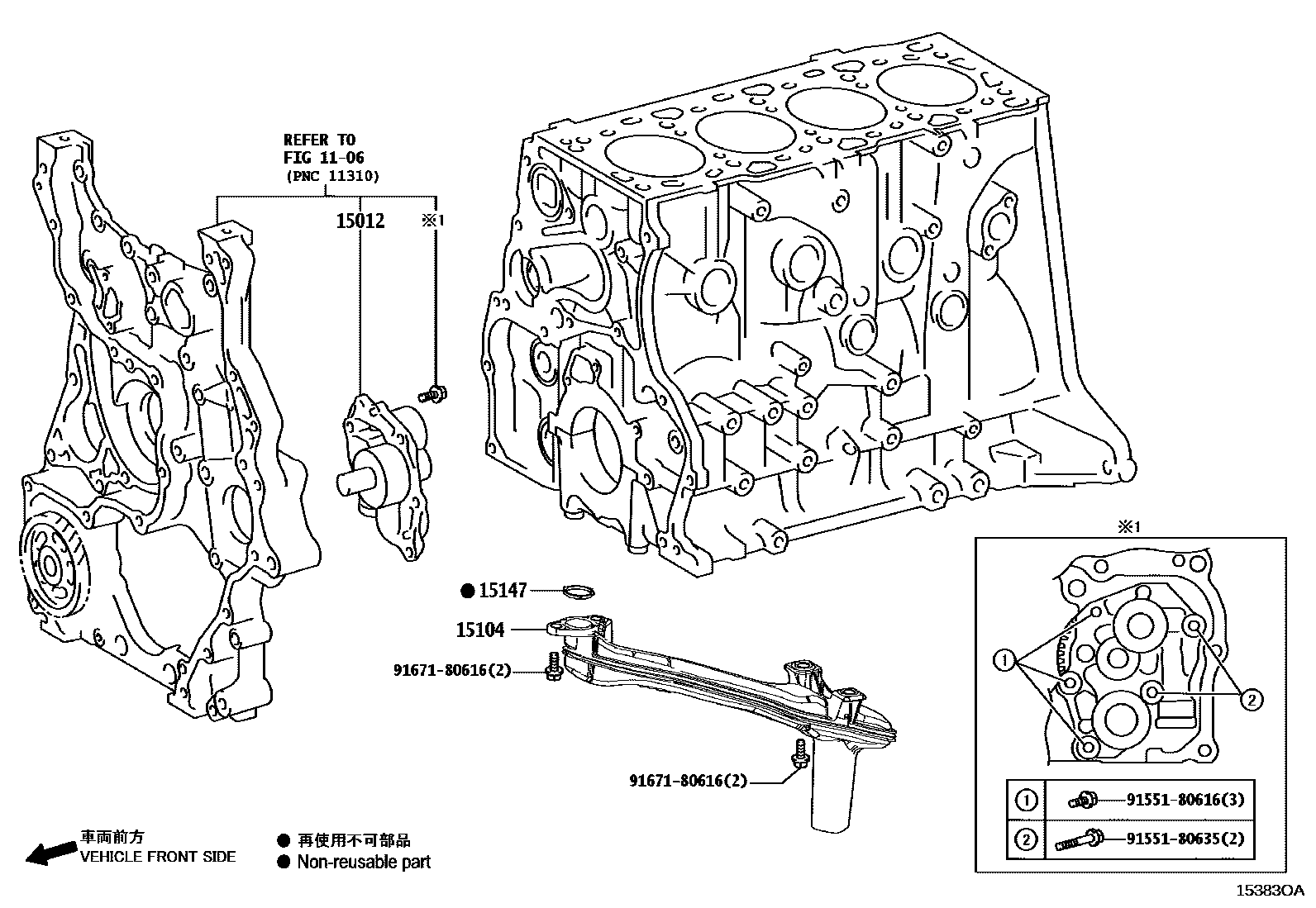

Parts diagram

1106

15012COVER SUB-ASSY, OIL PUMP

main15012-11030i202401

DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)

15104STRAINER SUB-ASSY, OIL

main15104-25050i202401

main15104-35030i202401-202509

main15104-75211i202401

15147GASKET, OIL STRAINER

main15147-25030i202401

NO.1

main15147-25040i202401

NO.2

main15147-31070i202401-202509

main15147-75042i202401

9155180616

main91551-80616

9155180635

main91551-80635

9167180616

main91671-80616

7 parts on this diagram · 3 diagrams in section
