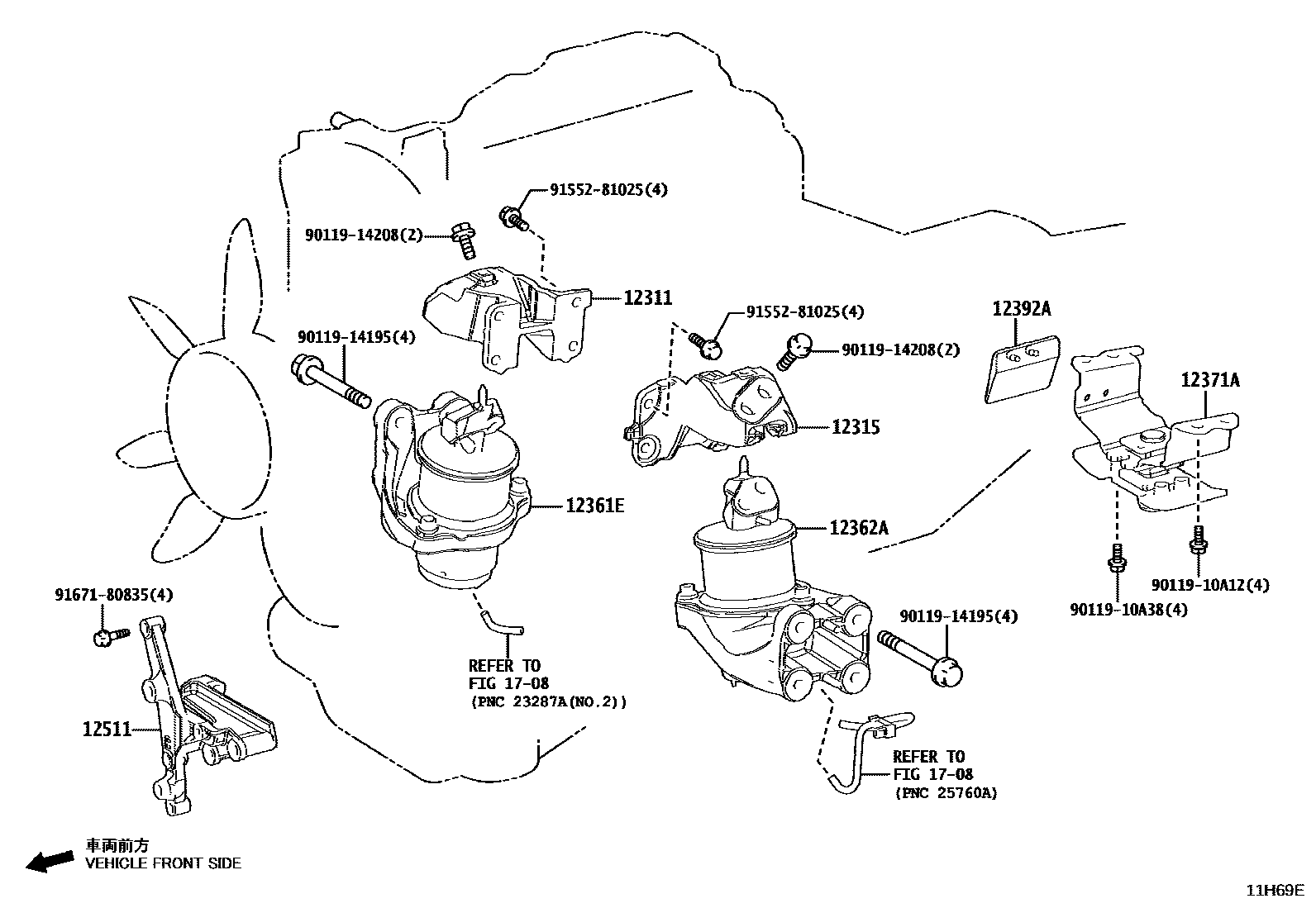

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25150iT24..TJA250202401

main12311-35060i1GDFTV..GDJ250..RHD..EUR202401-202509

main12311-75120i2TRFE..TRJ250202401

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-25060iT24..TJA250202401

main12315-35050i1GDFTV..GDJ250..RHD..EUR202401-202509

main12315-75150i2TRFE..TRJ250202401

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-11240i1GDFTV..GDJ250..RHD..EUR202401-202509

main12361-25150iT24..TJA250202401

main12361-75140i2TRFE..TRJ250202401

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-11330i1GDFTV..GDJ250..RHD..EUR202401-202509

main12362-25020iT24..TJA250202401

main12362-75010i2TRFE..TRJ250202401

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11650i1GDFTV..GDJ250..RHD..EUR202401-202509

main12371-11660i1GDFTV..GDJ250..6FC202405

main12371-25190iT24..TJA250202401

main12371-75210i2TRFE..TRJ250202401

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12391-25030i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA202401-202509

main12391-75010i2TRFE..TRJ250202401

12511BRACKET, ALTERNATOR, NO.1

main12511-35040i1GDFTV..GDJ250..RHD..EUR202401-202509

1708

9011910A12

main90119-10A12

9011910A38

main90119-10A38

9011914195

main90119-14195

9011914208

main90119-14208

9155281025

main91552-81025

9167180835

main91671-80835

14 parts on this diagram · 3 diagrams in section
