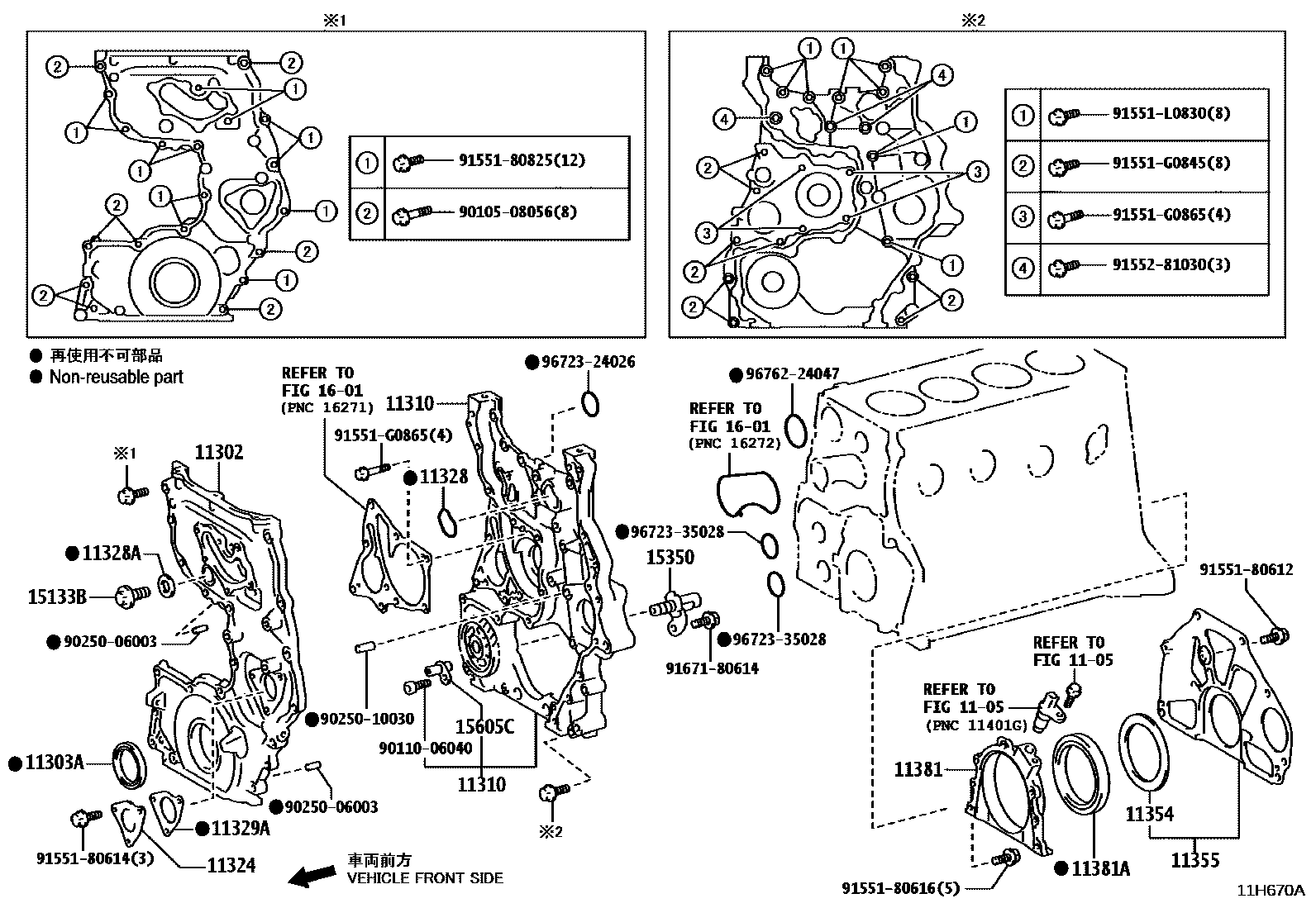

TIMING GEAR COVER & REAR END PLATE
1105
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
11310COVER ASSY, TIMING CHAIN
main11310-11041i1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..LHD..8FC..U..GEN;1GDFTV..GDJ250..(A,L,R)..(GEN,SA)202401-202406
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
sub11310-35120
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
sub11310-35120
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
main11310-35120i1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..LHD..8FC..U..GEN;1GDFTV..GDJ250..(A,L,R)..(GEN,SA)202407
DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
main11310-35120i1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..LHD..8FC..U..GEN;1GDFTV..GDJ250..(A,L,R)..(GEN,SA)202407
EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS)
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11328AGASKET, TIMING BELT COVER, NO.1
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11354SEAL, FLYWHEEL HOUSING DUST
11381RETAINER, ENGINE REAR OIL SEAL
15133BPLUG, OIL PUMP RELIEF VALVE
15350VALVE ASSY, OIL PRESSURE SWITCHING
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
15605CVALVE SUB-ASSY, OIL CHECK
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE
EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO6-RDE
1601
9010508056
main90105-08056
9011006040
main90110-06040
9025006003
main90250-06003
9025010030
main90250-10030
9155180612
main91551-80612
9155180614
main91551-80614
9155180616
main91551-80616
9155180825
main91551-80825
91551G0845
main91551-G0845
91551G0865
main91551-G0865
91551L0830
main91551-L0830
9155281030
main91552-81030
9167180614
main91671-80614
9672324026
main96723-24026
9672335028
main96723-35028
9676224047
main96762-24047
32 parts on this diagram · 4 diagrams in section
