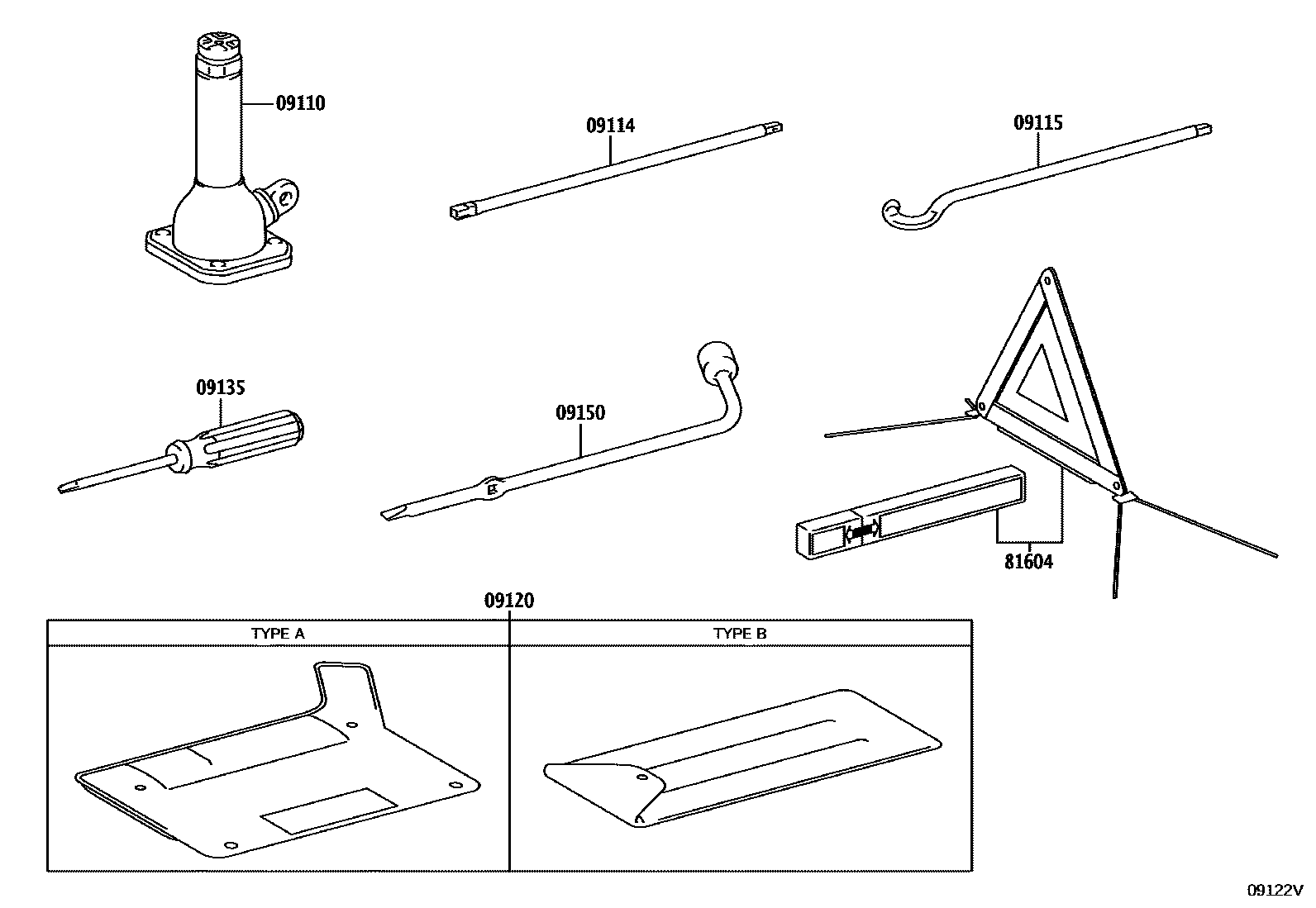

STANDARD TOOL

09110JACK ASSY

main09111-60150i202401-202509

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60100i202401-202509

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030i202401-202509

09120BAG, TOOL

main09120-35220i202409-202509

TYPE B:REFER ILLUST.

FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION&REAR SEAT-6:4 TUMBLE SEAT,TYPE B:REFER ILLUST.

REAR SEAT-6:4 TUMBLE SEAT,TYPE B:REFER ILLUST.

REAR SEAT-6:4 TUMBLE & 5:5,TYPE A:REFER ILLUST.

TYPE A:REFER ILLUST.

main09120-60310i202401-202409

TYPE B:REFER ILLUST.

09135DRIVER, SCREW

main99915-10700i202401-202509

09150WRENCH, HUB NUT BOX

main09150-26040i202401-202509

81604REFLECTOR SET, TRIANGLE

7 parts on this diagram · 1 diagram in section
