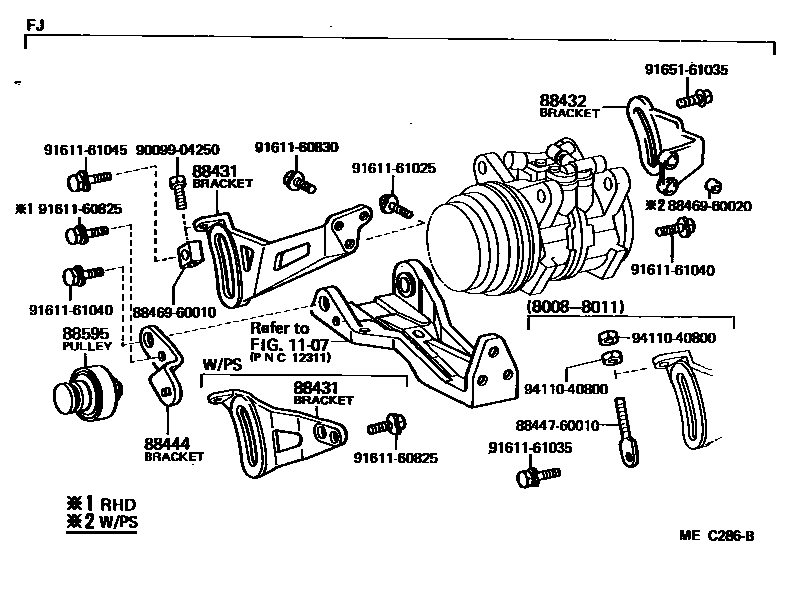

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1107

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60011iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

main88431-60030iHJ47..RHD198008-198506

main88437-60100iFJ40,45..WORB..ARL198008-198011

NEW SOUTH WALES SPEC

main88437-60110iFJ40,45..WORB..ARL198008-198011

main88437-60120iFJ4#..(3F,4F)..(ARL,GEN)198008-198011

W/POWER STEERING

main88437-60150iFJ4#..GEN198011-198604

W/POWER STEERING

main88437-60160iFJ4#..GEN198011-198604

main88437-60170iFJ40,45..WORB..ARL198011-198309

NEW SOUTH WALES SPEC

main88437-60170iFJ40..WORB..ARL198401-198410

VICTORIA SPEC

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88431-60021iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

main88437-60130iHJ47..RHD198008-198506

main88437-60180iFJ40..RHD..TPC..4F..WORB198209-198604

88444BRACKET, IDLE PULLEY

main88444-60011iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

main88444-60020iFJ4#..ARL,GEN198008-198604

main88444-60030iHJ47..RHD198008-198506

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16010iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

sub88440-22050

main88440-20060iFJ40,45..(PIC,V)..(ARL,GEN)198008-198604

main88440-60010iHJ47..RHD198008-198506

main88440-60020iBJ42..LHD..GEN198110-198410

W/POWER STEERING

8844760010PLATE, COMPRESSOR BELT ADJUSTING

main88447-60010

8846960010SWITCH, PRESSURE CONTROL

main88469-60010

8846960020SWITCH, PRESSURE CONTROL

main88469-60020

9009904250

main90099-04250

9161160825

main91611-60825

9161160830

main91611-60830

9161161025

main91611-61025

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9165161035

main91651-61035

9411040800

main94110-40800

17 parts on this diagram · 4 diagrams in section
