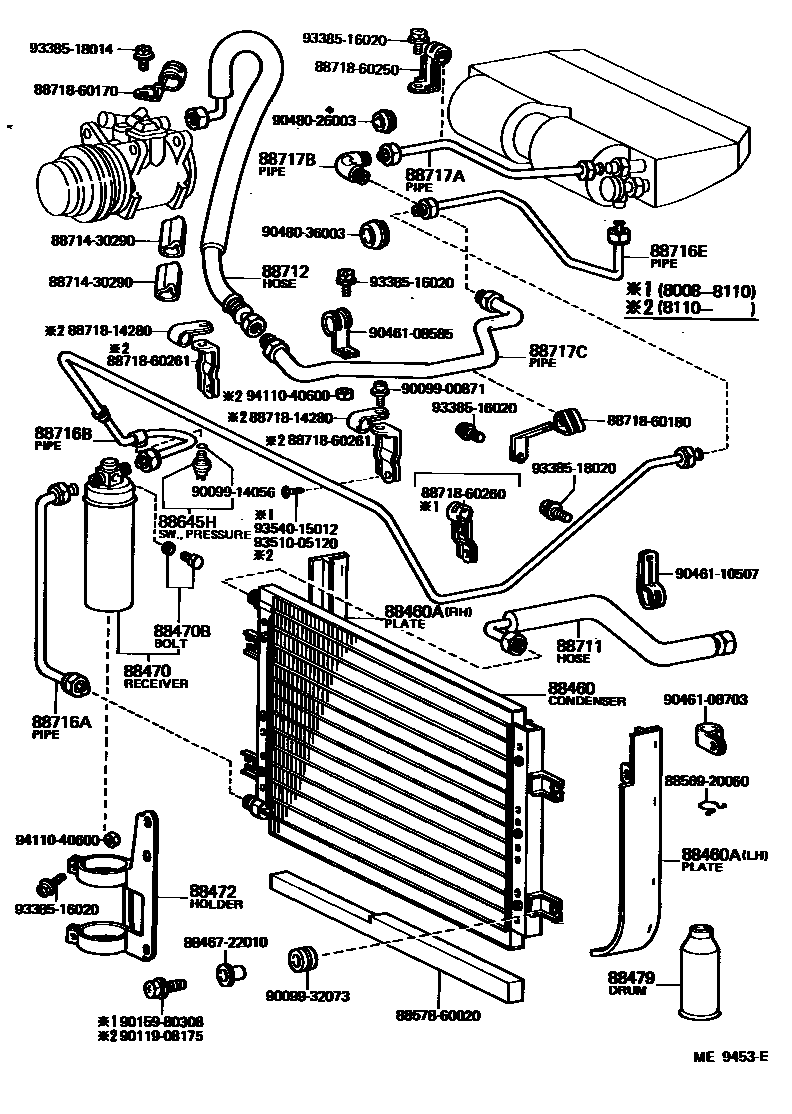

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88460CONDENSER ASSY, COOLER

main88460-60040iBJ40,42,45,FJ4#..GEN198008-198604

main88460-60050iFJ40,45..WORB..ARL198008-198506

88460ACOVER, COOLER CONDENSER

main88896-60030iFJ4#,HJ47..ARL,GEN198008-198604

RH

main88896-60040iFJ4#,HJ47..ARL,GEN198008-198604

LH

main88896-60050iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

RH

88470RECEIVER & DRYER ASSY, COOLER

main88470-20070iBJ40,42,45,FJ4#,HJ47..ARL,GEN198008-198604

88470BBOLT, FUSE

main90099-04579iBJ40,42,45,FJ4#,HJ47..ARL,GEN198008-198604

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-60030iFJ4#..ARL,GEN198008-198604

main88472-60040iBJ40,42,45,HJ47..(PIC,V)..(ARL,GEN)198008-198410

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iBJ40,42,45,FJ4#,HJ47..ARL,GEN198008-198604

400G

sub90986-02004

sub90986-02005

88645HSWITCH, PRESSURE NO.1

main88645-22020iFJ40,45,HJ47..RHD..(PIC,V)198008-198604

sub88645-30250

main88645-30250iFJ40..RHD..TPC..4F..WORB198209-198506

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-60060iFJ4#..(3F,4F)..(ARL,GEN)198008-198011

sub88711-60090

main88711-60070iBJ40,42,45..(PIC,V)..(ARL,GEN)198008-198410

main88711-60080iHJ47..RHD198008-198506

main88711-60090iFJ4#..ARL,GEN198011-198604

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-60060iBJ40,42,45..RHD..(PIC,V)198008-198110

main88712-60061iBJ40,42,45..RHD..(PIC,V)198110-198410

main88712-60080iFJ4#..LHD..GEN198008-198604

main88712-60100iFJ40,45..RHD..(PIC,V)198008-198209

main88712-60101iFJ40..RHD..TPC..4F..WORB198209-198506

main88712-60110iBJ40,42,45..LHD..(PIC,V)..GEN198008-198410

main88712-60120iHJ47..RHD198008-198506

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-60110iBJ40,42,45,HJ47..(PIC,V)..(ARL,GEN)198008-198506

main88716-60150iFJ4#..ARL,GEN198008-198604

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-60050iFJ40,45..RHD..(PIC,V)198008-198110

main88710-60090iHJ47..RHD198008-198110

main88716-60121iBJ40,42,45..RHD..(PIC,V)198008-198110

main88716-60122iBJ40,42,45..RHD..(PIC,V)198110-198410

main88716-60201iFJ40,45..RHD..(PIC,V)198110-198506

main88716-60240iFJ4#..LHD..GEN198008-198604

main88716-60250iBJ40,42,45..LHD..(PIC,V)..GEN198008-198410

main88716-60271iHJ47..RHD198110-198506

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-60210iBJ40,42,45..LHD..(PIC,V)..GEN198008-198110

main88716-60230iBJ40,42,45,FJ40,45..RHD..(PIC,V)198008-198506

main88716-60260iFJ4#..LHD..GEN198008-198604

main88716-60280iHJ47..RHD198110-198506

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-60060iBJ40,42,45,FJ40,45..RHD..(PIC,V)198008-198506

main88717-60070iFJ4#..LHD..GEN198008-198604

main88717-60080iHJ47..RHD198008-198506

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88899-60030iFJ40..RHD..TPC..4F..WORB198008-198506

sub90099-80002

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-60050iFJ40,45..RHD..(PIC,V)198008-198506

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8856920060CLAMP (FOR COOLER RELAY)

main88569-20060

8857860020PAKING, COOLER AIR DUCT

main88578-60020

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871814280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14280

8871860170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60170

8871860180PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60180

8871860250PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60250

8871860260PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60260

8871860261PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60261

9009900871

main90099-00871

9009914056

main90099-14056

9009932073

main90099-32073

9011908175

main90119-08175

9015980308

main90159-80308

9046108585

main90461-08585

9046108703

main90461-08703

9046110507

main90461-10507

9048026003

main90480-26003

9048036003

main90480-36003

9338516020

main93385-16020

9338518014

main93385-18014

9338518020

main93385-18020

9351005120

main93510-05120

9354015012

main93540-15012

9411040600

main94110-40600

41 parts on this diagram · 5 diagrams in section
