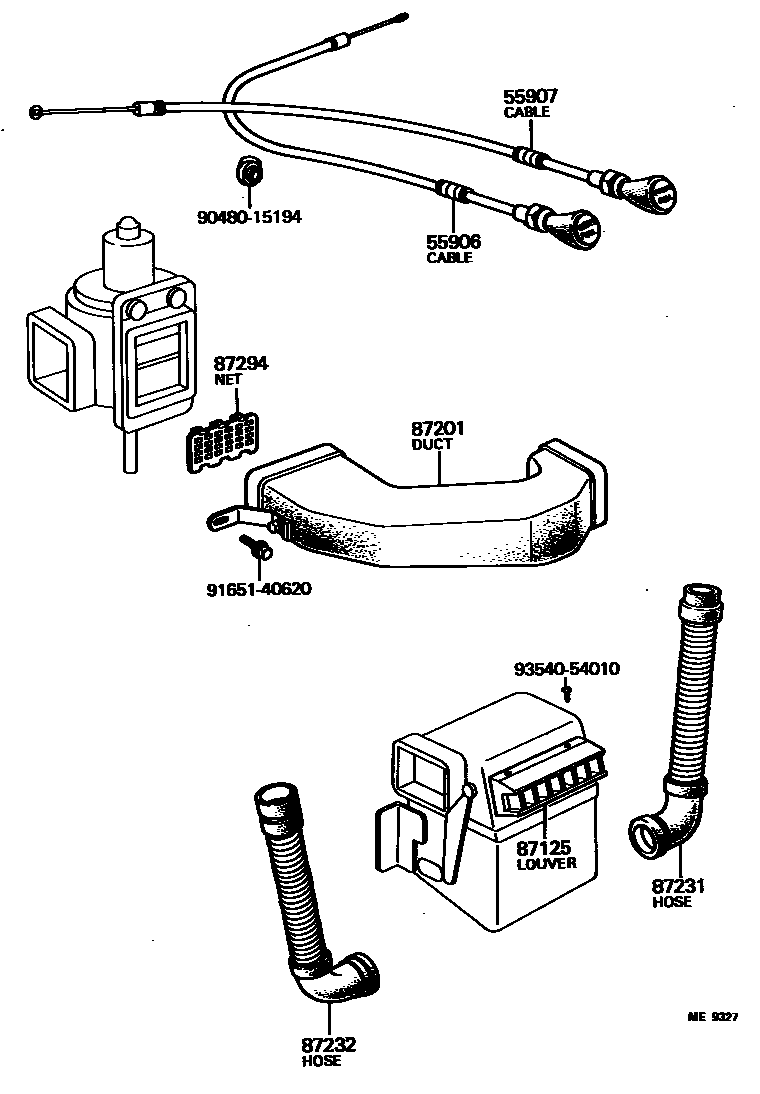

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55906CABLE SUB-ASSY, HEATER CONTROL

main87286-60101iFJ4#198008-198510

main87286-60141iBJ4#,HJ47..RHD198008-198110

main87286-60142iBJ4#,HJ47..RHD198110-198506

main87286-60151iBJ4#,HJ47..LHD198008-198210

main87286-60152iBJ4#,HJ47..LHD198210-198410

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main87296-60033iBJ4#,FJ4#,HJ47198008-198510

87125LOUVER, VENTILATION

main88960-60051iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

main88960-60060iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ40,43,FJ43,45,HJ47..LHD198008-198604

87201DUCT SUB-ASSY, AIR, NO.1

main87211-60031iBJ4#,FJ40,45,HJ47..LHD..(3F,4F)198008-198604

main87211-60062iBJ4#,FJ4#,HJ47..RHD198008-198010

W/O COOLER

main87211-60062iBJ4#,FJ4#,HJ47..RHD198010-198110

main87211-60063iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198110-198506

main87211-60150iBJ40,42,45,FJ40,45,HJ47..RHD..(PIC,V)198008-198010

W/COOLER

main87211-60151iFJ40,45..RHD..(PIC,V)198110-198506

W/COOLER

main87211-60160iBJ40,42,45..LHD..(PIC,V)..GEN198008-198604

W/COOLER

87231HOSE, HEATER DEFROSTER, RH

main87231-60032iBJ4#,FJ4#,HJ47..LHD198008-198210

main87231-60034iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198604

main87231-60110iBJ42,45,FJ40,45..(PIC,V)..EUR198008-198210

COLD SPEC

main87231-60112iBJ42,45,FJ40,45..(PIC,V)..EUR198210-198410

COLD SPEC

main87231-60150iBJ4#,FJ4#,HJ47..RHD198008-198110

main87231-60151iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198110-198506

87232HOSE, HEATER DEFROSTER, LH

main87231-60102iBJ4#,FJ4#,HJ47..LHD198008-198210

main87231-60103iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198604

main87231-60120iBJ42,45,FJ40,45..(PIC,V)..EUR198008-198210

COLD SPEC

sub87231-60102

main87231-60121iBJ42,45,FJ40,45..(PIC,V)..EUR198210-198410

COLD SPEC

main87231-60131iBJ4#,FJ4#,HJ47..RHD198008-198010

W/O COOLER

main87231-60140iBJ4#,FJ4#,HJ47..RHD198010-198110

main87231-60140iBJ40,42,45,FJ40,45,HJ47..RHD..(PIC,V)198008-198010

W/COOLER

main87231-60141iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198110-198506

87294NET, AIR DUCT

main87294-60031iBJ4#,FJ4#,HJ47198008-198604

9048015194

main90480-15194

9165140620

main91651-40620

9354054010

main93540-54010

10 parts on this diagram · 2 diagrams in section
