SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28621RESISTOR, GLOW PLUG

main28621-57010i3B..BJ42,45,46..EUR198110-198201

sub28621-57011

sub19877-66010

sub90179-05015

main28621-57011i3B..BJ42,45,46..EUR198201-198410

main28621-57021i3B..BJ42..ARL198210-198410

main28621-64011i2H..HJ47..ARL198210-198410

28624PLATE, CURRENT SENSOR

main28624-57010i3B..BJ42,45,46..ARL,EUR198110-198410

main28624-68011i2H..HJ47..ARL198210-198410

28631SENSOR, GLOW PLUG CURRENT

main28631-57010i3B..BJ42,45,46..EUR198110-198410

main28631-57020i3B..BJ42..ARL198210-198410

main28631-68020i2H..HJ47..ARL198210-198410

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ4#,FJ4#,HJ47198008-198604

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-55011iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198301

12V

main83520-55020iBJ40,42..EUR,GEN198008-198301

24V

main83520-60010iFJ40,45;BJ40,42,43,45,FJ43,HJ47..ARL,GEN198301-198604

12V

sub83520-60011

main83520-60020iBJ40..V;BJ40..LHD..TPC;BJ42,43,45,46..EUR,GEN198301-198410

24V

84210SWITCH ASSY, BACK-UP LAMP

main84210-55050iFJ4#..3F198008-198210

main84210-60010iBJ4#,FJ4#,HJ47..4F198008-198210

main84210-60021iBJ4#,FJ4#,HJ47198210-198604

84210TSENSOR ASSY, SHIFT POINT

main84220-12010iFJ40..ARL198008-198210

HONG KONG SPEC

main84220-60010iFJ40..ARL198210-198410

main84220-60030iFJ45..EUR198210-198410

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60020iBJ4#,FJ4#,HJ47198210-198604

main84222-60021iBJ4#,FJ4#,HJ47198301-198510

89427SWITCH, TEMPERATURE DETECT

main83430-96440iBJ40,42,45,HJ47..(PIC,V)..(ARL,GEN)198008-198506

W/COOLER(THERMO SWITCH)

sub89428-60040

89429SENSOR, OIL TEMPERATURE

main89422-30020iBJ42,45,46,HJ47..ARL,EUR198110-198410

sub89422-12010

1987766010

main19877-66010

2860268010

main28602-68010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8889960040COVER, EVAPORATOR

main88899-60040

9011606275

main90116-06275

9017905015

main90179-05015

9017906070

main90179-06070

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9040454025

main90404-54025

9043012221

main90430-12221

9043018007

main90430-18007

9046108348

main90461-08348

9211260625

main92112-60625

9461310601

main94613-10601

9463110601

main94631-10601

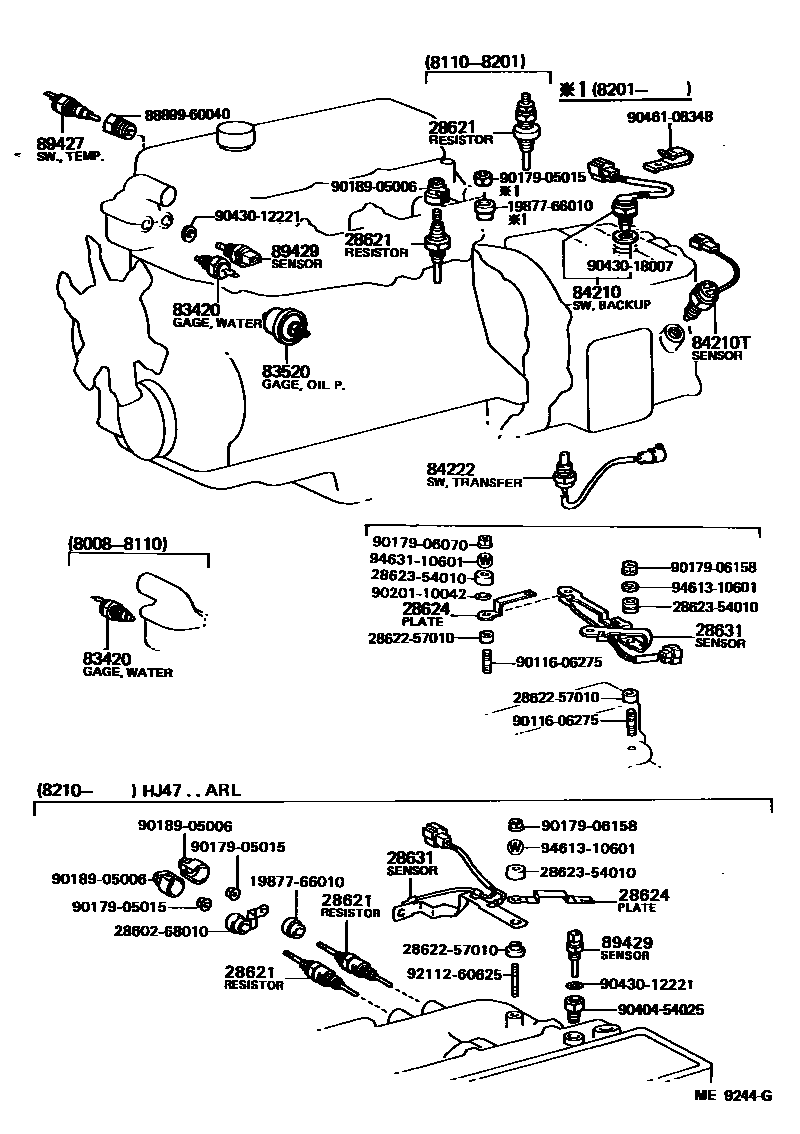

28 parts on this diagram · 4 diagrams in section
