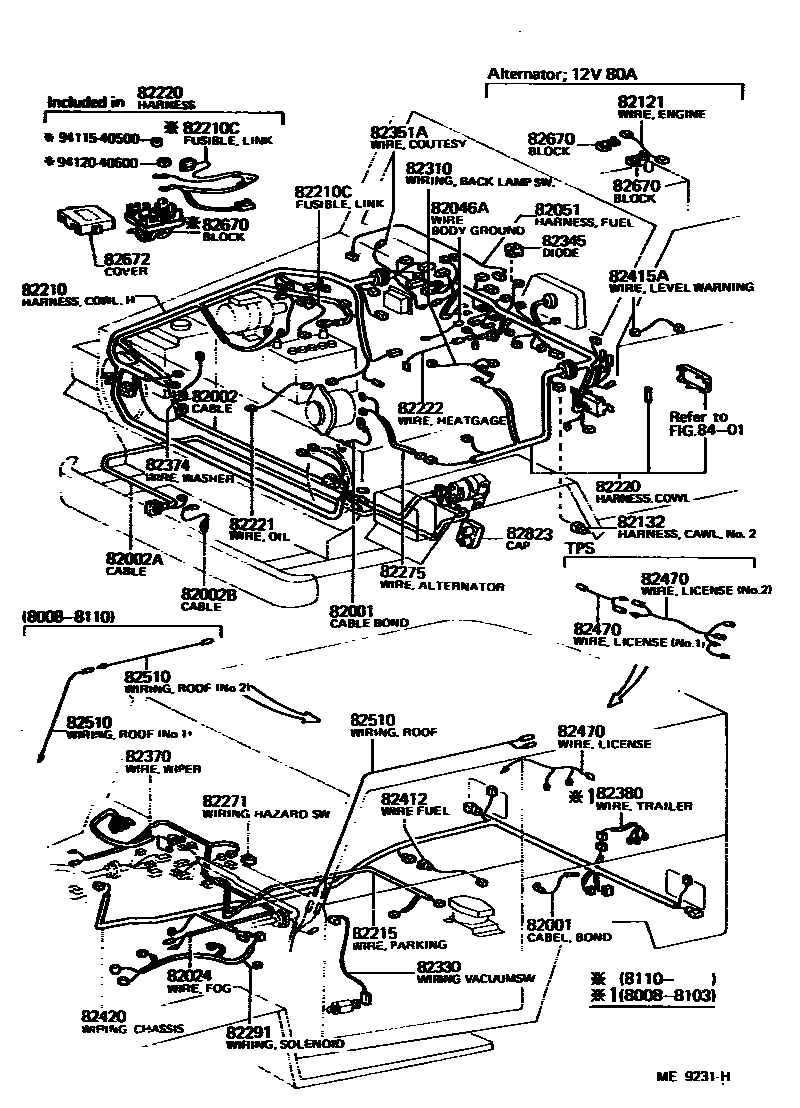

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main82046-14072iBJ4#,FJ4#,HJ47198008-198604

L=480,ALTERNATOR

main82381-60010iFJ40..3F,4F;BJ4#,FJ43,45,HJ47..(TP,V)..(EUR,GEN)198008-198103

TRAILER SOCKET

main90980-07003iFJ4#,HJ47198008-198604

main90980-07056iBJ4#198008-198410

82002CABLE, BATTERY TO MAGNET SWITCH

main38915-90300iBJ4#,HJ47198008-198506

W/ELECTRICAL WINCH

main38915-90302iFJ4#198008-198604

W/ELECTRICAL WINCH

82002ACABLE, MAGNET SWITCH TO WINCH

main38916-90301iBJ4#198008-198410

W/ELECTRICAL WINCH

main38916-90302iHJ47198008-198506

W/ELECTRICAL WINCH

main38916-90303iFJ4#198008-198604

W/ELECTRICAL WINCH

82002BCABLE, WINCH TO GROUND

main90980-07175iBJ4#,FJ4#,HJ47198008-198604

W/ELECTRICAL WINCH

82024WIRE SUB-ASSY, FOG LAMP FEED

main82024-90307iBJ4#,FJ4#,HJ47..ARL,GEN198008-198604

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-90804iHJ47..ARL198210-198410

82051HARNESS ASSY, FUEL CONTROL

main82051-90800iBJ4#..EUR,GEN198008-198410

W/EDIC

main82051-90801iBJ4#,HJ47..ARL,GEN198008-198506

12V,W/EDIC

82121WIRE, ENGINE

main82121-90800iFJ40..LHD..VKC..4F198404-198410

ALTERNATOR=12V 80A

82132WIRE, COWL, NO.2

main82132-90800iBJ40,42,43,45..GEN198303-198410

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-90800iFJ40..RHD..V..GEN198008-198110

HONG KONG SPEC

main82210-90801iFJ40,45..ARL198008-198110

main82210-90802iFJ4#..RHD..GEN198008-198110

main82210-90806iFJ40,45..EUR198008-198110

main82210-90807iFJ4#..LHD..(3F,4F)..GEN198008-198110

main82210-90808iBJ4#..RHD198008-198110

W/EDIC

main82210-90809iBJ4#..RHD198008-198110

main82210-90810iBJ4#..LHD..GEN198008-198110

main82210-90812iBJ42,45,46..EUR198008-198110

main82210-90813iHJ47..RHD198008-198110

main82210-90815iHJ47..LHD198008-198110

W/EDIC

main82210-90816iHJ47..LHD198008-198110

main82210-90817iFJ40..ARL198008-198110

NEW SOUTH WALES SPEC

main82210-90818iFJ40,45..ARL198110-198410

main82210-90819iFJ40..ARL198110-198309

NEW SOUTH WALES SPEC

main82210-90819iFJ40..ARL198401-198410

VICTORIA SPEC

main82210-90820iFJ40..RHD..V..GEN198110-198210

HONG KONG SPEC

main82210-90821iFJ4#..RHD..GEN198110-198506

sub82210-90818

main82210-90825iFJ40,45..EUR198110-198210

main82210-90826iFJ4#..LHD..GEN198110-198210

main82210-90827iBJ4#..RHD198110-198210

W/EDIC

main82210-90828iBJ4#..RHD198110-198210

main82210-90829iBJ4#..LHD..GEN198110-198210

main82210-90832iHJ47..RHD..GEN198110-198506

main82210-90833iHJ47..LHD198110-198210

W/EDIC

main82210-90834iHJ47..LHD198110-198210

main82210-90837iBJ42,45,46..EUR198110-198210

main82210-90841iFJ40,45..EUR198210-198410

main82210-90842iFJ4#..LHD..GEN198210-198604

main82210-90843iBJ40,42,43,45..RHD..GEN198210-198303

W/EDIC

sub82210-90854

main82210-90844iBJ40,42,43,45..RHD..GEN198210-198303

sub82210-90855

main82210-90847iHJ47..LHD198210-198410

W/EDIC

main82210-90847iHJ47..LHD..VKC198309-198410

OMAN SPEC,W/EDIC

main82210-90848iHJ47..LHD..VKC198309-198410

OMAN SPEC

main82210-90848iHJ47..LHD198210-198410

main82210-90849iBJ42..ARL198210-198410

main82210-90850iHJ47..ARL198210-198410

main82210-90852iBJ42,45,46..EUR198210-198303

main82210-90853iBJ40,42,43,45..LHD..GEN198210-198303

sub82210-90857

main82210-90862iBJ40,42,43,45..RHD..GEN198303-198306

W/EDIC

main82210-90863iBJ40,42,43,45..RHD..GEN198303-198306

main82210-90865iBJ40,42,43,45..LHD..GEN198303-198410

main82210-90865iBJ45..LHD..GEN..CBU198309-198410

OMAN SPEC

main82210-90867iBJ42,45,46..EUR198303-198410

main82210-90868iBJ40,42,43,45..RHD..GEN198306-198410

W/EDIC

main82210-90869iBJ40,42,43,45..RHD..GEN198306-198410

main82210-90870iFJ43,45..LHD..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198309-198410

SAUDI ARABIA SPEC

main82210-90870iFJ43,45..LHD..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198309-198410

OMAN SPEC

main82210-90873iFJ40..LHD..VKC..4F198404-198410

ALTERNATOR=12V 80A

main82210-90874iFJ45..RHD..GEN..IV198404-198506

SOUTH AFRICA SPEC

main82210-90875iHJ47..RHD..GEN..IV198404-198506

SOUTH AFRICA SPEC

82210CFUSIBLE LINK

main90982-08071iFJ4#198008-198604

main90982-08151iBJ4#,HJ47198008-198506

main90982-08191iBJ42,45,46..EUR198110-198210

main90982-08213iBJ42,45,46..ARL,EUR198210-198410

82215WIRE, PARKING BRAKE LAMP SWITCH

main82215-90800iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)198008-198410

main82215-90801iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD..(TP,V)198008-198604

main82215-90803iFJ40..LHD..VKC..GEN198309-198410

OMAN SPEC W/RR HEATER

main82215-90803iFJ40..LHD..VKC..4F198309-198410

SAUDI ARABIA SPEC,W/RR HEATER

main82215-90804iHJ47..RHD..VKC198008-198410

W/RR HEATER

main82215-90805iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD..(TP,V)198008-198604

W/RR HEATER

main82215-90806iBJ45,FJ45,HJ47..RHD..PIC198008-198506

main82215-90807iBJ45,FJ45,HJ47..LHD..PIC198008-198604

main82215-90811iFJ43,45..LHD..TP198309-198410

SAUDI ARABIA OR OMAN SPEC

main82215-90812iFJ45..LHD..PIC..GEN;BJ45..LHD..PIC..GEN..CBU198309-198410

SAUDI ARABIA OR OMAN SPEC

82220HARNESS ASSY, WIRING COWL

main82220-90470iBJ40,42,43,45..RHD..GEN198306-198410

W/EDIC

main82220-90471iBJ40,42,43,45..RHD..GEN198306-198410

main82220-90473iFJ40..LHD..VKC..GEN198309-198410

OMAN SPEC

main82220-90473iFJ43,45..LHD..TPC;FJ45..LHD..(PIC,V)..GEN..CBU198309-198410

SAUDI ARABIA SPEC

main82220-90475iHJ47..LHD..VKC198309-198410

OMAN SPEC,W/EDIC

main82220-90476iHJ47..LHD..VKC198309-198410

OMAN SPEC

main82220-90477iBJ45..LHD..GEN..CBU198309-198410

OMAN SPEC,W/EDIC

main82220-90478iBJ45..LHD..GEN..CBU198309-198410

OMAN SPEC

main82220-90481iFJ40..LHD..VKC..4F198404-198410

ALTERNATOR=12V 80A

main82220-90800iFJ40..ARL198008-198105

NEW SOUTH WALES SPEC

main82220-90801iFJ40,45..ARL198008-198105

main82220-90802iFJ40..RHD..V..GEN198008-198110

HONG KONG SPEC

main82220-90803iFJ4#..RHD..GEN198008-198110

main82220-90806iFJ40,45..EUR198008-198110

main82220-90807iFJ4#..LHD..(3F,4F)..GEN198008-198110

main82220-90808iBJ4#..RHD..GEN198008-198110

W/EDIC

main82220-90809iBJ4#..RHD..GEN198008-198110

main82220-90810iBJ42..ARL198008-198105

main82220-90812iBJ40,43,45,46..LHD..GEN198008-198110

W/EDIC

main82220-90813iBJ4#..LHD..GEN198008-198110

main82220-90815iBJ42,45,46..EUR198008-198110

main82220-90816iHJ47..RHD..GEN198008-198110

W/EDIC

main82220-90817iHJ47..RHD..GEN198008-198110

main82220-90818iHJ47..ARL198008-198105

main82220-90819iHJ47..LHD198008-198110

W/EDIC

main82220-90820iHJ47..LHD198008-198110

main82220-90821iBJ42,45,46..EUR198008-198110

W/HEAD LAMP CLEANER

main82220-90822iFJ40,45..ARL198105-198110

main82220-90823iFJ40..ARL198105-198110

NEW SOUTH WALES SPEC

main82220-90824iBJ42..ARL198105-198110

main82220-90825iHJ47..ARL198105-198110

main82220-90826iFJ40,45..ARL198110-198210

main82220-90827iFJ40..ARL198110-198210

NEW SOUTH WALES SPEC

main82220-90828iFJ40..RHD..V..GEN198110-198210

HONG KONG SPEC

main82220-90829iFJ4#..RHD..GEN198110-198210

main82220-90832iFJ40,45..EUR198110-198210

main82220-90833iFJ4#..LHD..GEN198110-198210

main82220-90834iBJ4#..RHD..GEN198110-198210

W/EDIC

main82220-90835iBJ4#..RHD..GEN198110-198210

main82220-90836iBJ42..ARL198110-198210

main82220-90838iBJ40,43,45,46..LHD..GEN198110-198210

W/EDIC

main82220-90839iBJ4#..LHD..GEN198110-198210

sub82220-90838

main82220-90843iHJ47..RHD..GEN198110-198210

W/EDIC

main82220-90844iHJ47..RHD..GEN198110-198210

main82220-90845iHJ47..ARL198110-198210

main82220-90846iHJ47..LHD198110-198210

W/EDIC

main82220-90847iHJ47..LHD198110-198210

main82220-90850iBJ42,45,46..EUR198110-198210

main82220-90851iBJ42,45,46..EUR198110-198210

W/HEAD LAMP CLEANER

main82220-90853iFJ40,45..ARL198210-198410

main82220-90854iFJ40..ARL198401-198410

VICTORIA SPEC

main82220-90854iFJ40..ARL198210-198309

NEW SOUTH WALES SPEC

main82220-90856iFJ4#..RHD..GEN198210-198506

main82220-90858iFJ40,45..EUR198210-198410

main82220-90859iFJ4#..LHD..GEN198210-198604

main82220-90860iBJ40,42,43,45..RHD..GEN198210-198303

W/EDIC

main82220-90861iBJ40,42,43,45..RHD..GEN198210-198303

main82220-90864iBJ40,42,43,45..LHD..GEN198210-198303

W/EDIC

main82220-90865iBJ40,42,43,45..LHD..GEN198210-198303

main82220-90867iBJ42,45,46..EUR198210-198303

main82220-90868iBJ42,45,46..EUR198210-198303

W/HEADLAMP CLEANER

main82220-90869iHJ47..RHD..GEN198210-198506

W/EDIC

main82220-90870iHJ47..RHD..GEN198210-198506

main82220-90872iHJ47..LHD198210-198410

W/EDIC

main82220-90873iHJ47..LHD198210-198410

main82220-90874iBJ42..ARL198210-198410

main82220-90875iHJ47..ARL198210-198410

main82220-90888iBJ40,42,43,45..RHD..GEN198303-198306

W/EDIC

main82220-90889iBJ40,42,43,45..RHD..GEN198303-198306

main82220-90891iBJ40,42,43,45..LHD..GEN198303-198410

W/EDIC

main82220-90892iBJ40,42,43,45..LHD..GEN198303-198410

main82220-90894iBJ42,45,46..EUR198303-198410

main82220-90895iBJ42,45,46..EUR198303-198410

W/HEADLAMP CLEANER

82221WIRE, OIL PRESSURE SWITCH

main82221-90800iHJ47198008-198506

W/EDIC

main82221-90801iFJ4#198212-198604

82222WIRE, HEAT GAGE

main82222-90303iFJ40..ARL198008-198110

NEW SOUTH WALES SPEC

main82222-90800iFJ40..ARL198110-198309

NEW SOUTH WALES SPEC

main82222-90800iFJ40..ARL198401-198410

VICTORIA SPEC

82271WIRING, HAZARD WARNING SWITCH

main82271-90302iBJ4#,FJ4#,HJ47..GEN198008-198604

82275WIRE, ALTERNATOR

main82422-90801iFJ4#198008-198604

main82422-90802iHJ47..LHD198008-198410

82291WIRING, TO SOLENOID

main82291-90800iBJ40,42,43,46..RHD198008-198110

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-90800iHJ47..GEN198008-198210

main82310-90801iFJ40,45..EUR198008-198210

main82310-90801iFJ40,45..3F,4F198008-198210

NEW SOUTH WALES SPEC

main82310-90801iFJ40..RHD..V..GEN198110-198210

HONG KONG SPEC

main82310-90803iBJ4#..LHD198008-198210

main82310-90805iBJ4#..RHD198110-198210

main82310-90806iHJ47..ARL198110-198210

main82310-90807iFJ4#,HJ47..4F..(ARL,GEN)198210-198301

main82310-90808iFJ45..EUR198210-198301

main82310-90809iFJ40..5F..(ARL,GEN)198210-198301

main82310-90810iFJ40..EUR198210-198301

NEW SOUTH WALES SPEC

main82310-90811iBJ46;BJ40,42,43,45..4F198210-198301

main82310-90812iBJ42,46..5F198210-198301

main82310-90815iFJ4#,HJ47..4F..(ARL,GEN)198301-198604

main82310-90816iFJ40..LHD..VKC..4F198309-198410

SAUDI ARABIA OR OMAN SPEC

main82310-90816iFJ45..EUR198301-198410

main82310-90817iFJ40..5F..(ARL,GEN)198301-198410

main82310-90818iFJ40..ARL198401-198410

VICTORIA SPEC

main82310-90818iFJ40..EUR198301-198410

main82310-90818iFJ40..ARL198301-198309

NEW SOUTH WALES SPEC

main82310-90818iFJ40..5F..GEN198309-198410

OMAN SPEC

main82310-90819iBJ46;BJ40,42,43,45..4F198301-198410

main82310-90820iBJ42,46..5F198301-198410

82330WIRING ASSY, TO VACUUM WARNING SWITCH

main82416-90301iHJ47..VKC198008-198410

82345DIODE

main82345-12010iBJ4#,HJ47198008-198506

sub82345-12020

82351AWIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR)

main82351-90800iBJ42,45,46,FJ40,45,HJ47..ARL,EUR198110-198111

82370WIRE ASSY, WIPER SWITCH TO WIPER

main82370-90312iBJ4#,FJ4#,HJ47..3F,4F198008-198110

main82370-90800iBJ42,FJ40,45,HJ47..ARL198105-198210

main82370-90802iBJ4#,FJ4#,HJ47198210-198604

82374WIRE, WASHER

main82374-60010iBJ4#198008-198410

82380WIRING ASSY, TRAILER SOCKET

main82380-90300iFJ40..3F,4F;BJ4#,FJ43,45,HJ47..(TP,V)..(EUR,GEN)198008-198103

main82380-90302iFJ40..ARL198008-198103

NEW SOUTH WALES SPEC

82412WIRE, FUEL GAGE

main82412-90800iFJ4#,HJ47..TP,V198008-198604

main82412-90801iBJ4#..TP,V198008-198410

82415AWIRE, LEVEL WARNING

main82415-90300iBJ4#198008-198101

W/FUEL SEDIMENTER

main82415-90301iHJ47198008-198506

W/FUEL SEDIMENTER

82420WIRING ASSY, CHASSIS

main82420-90800iFJ40198008-198604

main82420-90801iFJ43198008-198410

main82420-90802iFJ45..PIC198008-198205

main82420-90803iBJ40,42198008-198410

main82420-90804iBJ43,46198008-198410

main82420-90807iFJ45..TP,V198008-198604

main82420-90808iFJ40..ARL198008-198309

NEW SOUTH WALES SPEC

main82420-90808iFJ40..ARL198401-198410

VICTORIA SPEC

main82420-90811iHJ47..PIC198008-198205

main82420-90812iHJ47..VKC198008-198410

main82420-90813iBJ45..PIC198008-198205

main82420-90814iBJ45..VKC198008-198410

main82420-90815iFJ45..PIC198205-198604

main82420-90816iHJ47..PIC198205-198506

main82420-90817iBJ45..PIC198205-198410

82470WIRE ASSY, LICENSE LAMP FEED

main82470-90310iBJ46,FJ40,45..TPS198008-198604

NO.2

main82470-90800iBJ4#,FJ4#,HJ47..TPC,VKC,VLS198008-198604

main82470-90801iBJ46,FJ40,45..TPS198008-198510

NO.1

82510WIRING ASSY, ROOF

main82520-90800iBJ4#,FJ4#,HJ47..(TP,V)..GEN198110-198211

sub82520-90804

main82520-90801iBJ45,FJ45,HJ47..PIC..GEN198110-198211

sub82520-90805

main82520-90802iBJ42,45,46,FJ40,45,HJ47..(TP,V)..(ARL,EUR)198110-198410

main82520-90803iBJ45,FJ45,HJ47..PIC..(ARL,EUR)198110-198410

main82520-90804iBJ40,42,43,45,FJ4#,HJ47..(TP,V)..GEN198211-198604

main82520-90805iBJ45,FJ45,HJ47..PIC..GEN198211-198604

main82521-90300iBJ4#,FJ4#,HJ47..3F,4F198008-198110

NO.1

sub82521-90303

main82521-90302iBJ45,FJ45,HJ47..PIC198008-198110

NO.2

main82521-90303iBJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)198008-198110

NO.2

82670BLOCK ASSY, JUNCTION, NO.1

main82670-90800iFJ40..LHD..VKC..4F198404-198410

main82671-30030iBJ42,45,46..EUR198110-198410

82672COVER, JUNKTION BLOCK

main82672-90800iBJ42,45,46..EUR198210-198410

82823CAP, TERMINAL, NO.1

main82823-90300iBJ4#,FJ4#,HJ47198008-198604

8401

9411540500

main94115-40500

9412040600

main94120-40600

36 parts on this diagram · 4 diagrams in section
