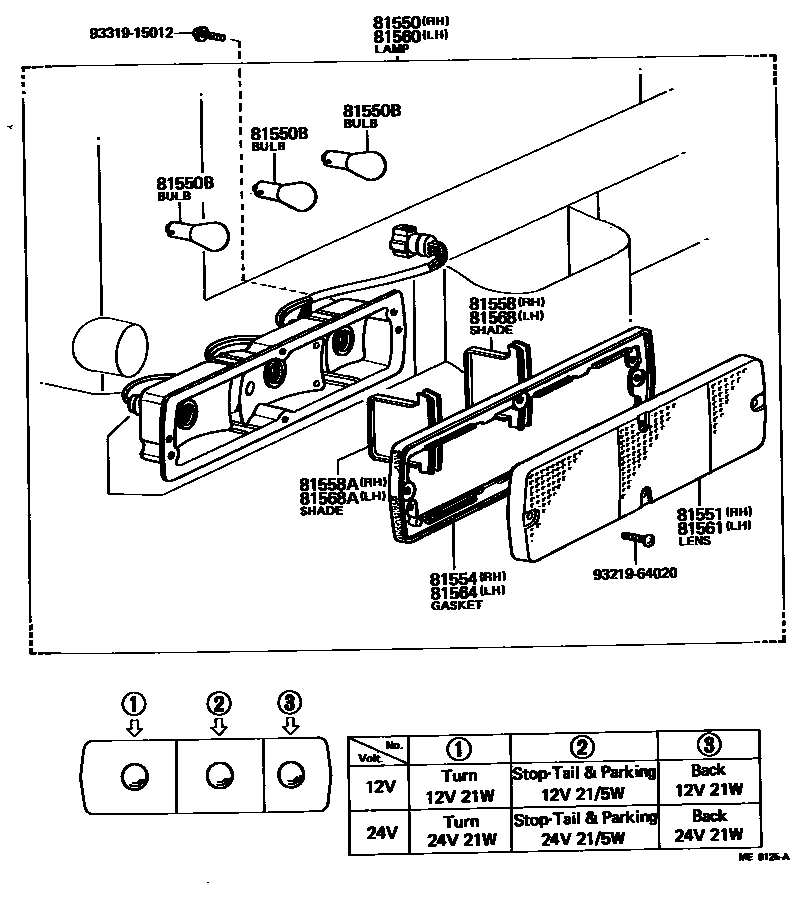

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60232iBJ4#,HJ47..GEN198008-198604

12V,AMBER-RED-CLEAR

main81550-60252iBJ4#..EUR,GEN198008-198410

24V,AMBER-RED-CLEAR

main81550-60272iBJ42,FJ40,45,HJ47..ARL198008-198410

12V,AMBER-RED-CLEAR

sub81550-60232

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iBJ4#..EUR,GEN198008-198410

24V 21W,24V 21W

main90981-16015iBJ4#..EUR,GEN198008-198410

24V 21/5W,24V 21/5W

main99132-11210iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V 21W,12V 21W

main99132-21210iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-26040iBJ4#,FJ4#,HJ47198008-198604

AMBER-RED-CLEAR

sub81551-60180

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26040iBJ4#,FJ4#,HJ47198008-198604

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iBJ4#,FJ4#,HJ47198008-198604

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-26040iBJ4#,FJ4#,HJ47198008-198604

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60152iFJ4#..EUR,GEN198008-198604

12V,AMBER-RED-CLEAR

main81560-60172iBJ4#..EUR,GEN198008-198410

24V,AMBER-RED-CLEAR

main81560-60192iBJ42,FJ40,45,HJ47..ARL198008-198410

12V,AMBER-RED-CLEAR

sub81560-60152

81561LENS, REAR COMBINATION LAMP, LH

main81561-26040iBJ4#,FJ4#,HJ47198008-198604

AMBER-RED-CLEAR

sub81561-60080

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-26040iBJ4#,FJ4#,HJ47198008-198604

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iBJ4#,FJ4#,HJ47198008-198604

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-26040iBJ4#,FJ4#,HJ47198008-198604

9321964020

main93219-64020

9331915012

main93319-15012

13 parts on this diagram · 1 diagram in section
