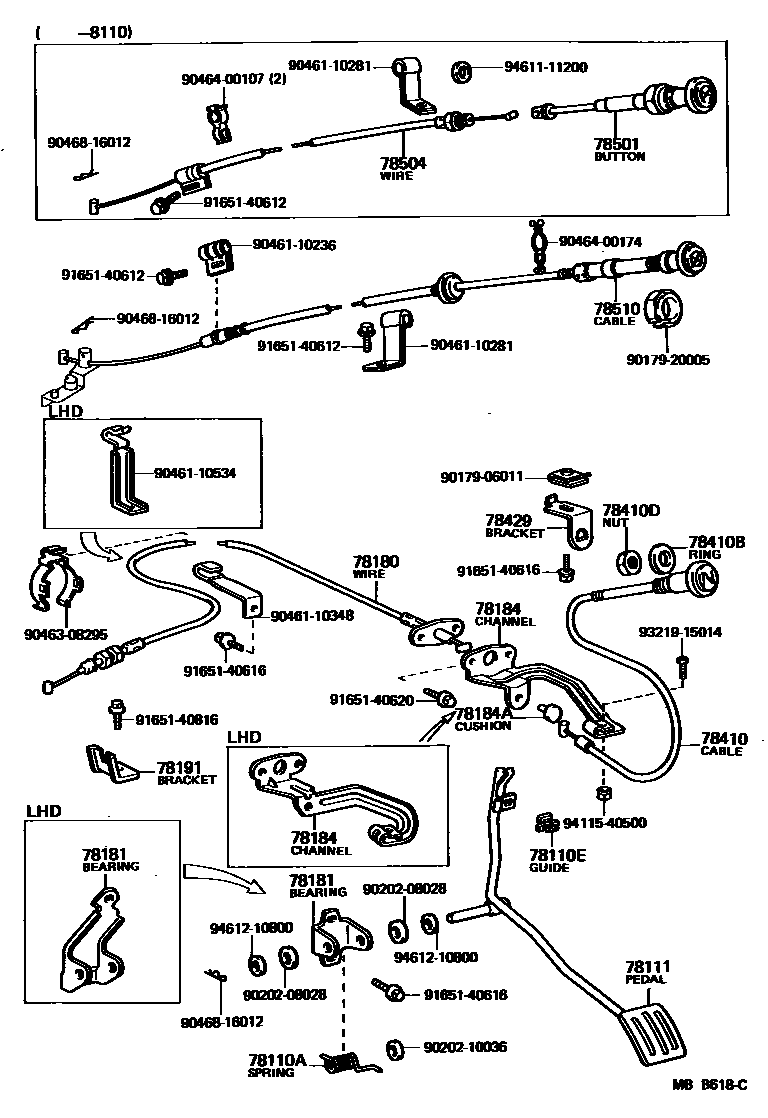

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26125iBJ4#;FJ40..TPC..5F;FJ4#,HJ47..RHD198008-198506

main90508-26392iFJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198604

78110EGUIDE, THROTTLE WIRE

main78449-90300iBJ4#,FJ4#,HJ47198008-198604

78111PEDAL, ACCELERATOR

main78101-60030iFJ4#..RHD;FJ40..TPC..5F198008-198506

sub78101-90300

main78101-90300iFJ4#..RHD;FJ40..TPC..5F198008-198506

W/THEROTTLE ROD

main78101-90309iBJ4#,HJ47..LHD198008-198410

main78101-90310iFJ4#..LHD..(3F,4F)198008-198101

main78101-90311iFJ4#..LHD..(3F,4F)198008-198101

W/THEROTTLE ROD

main78102-90800iFJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198101-198604

main78102-90801iFJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198101-198604

W/THEROTTLE ROD

78180WIRE ASSY, ACCELERATOR

main78180-90800iFJ4#..RHD;FJ40..TPC..5F198008-198506

main78180-90801iHJ47..RHD198008-198205

main78180-90802iHJ47..LHD198008-198205

main78180-90803iBJ4#..RHD198008-198205

main78180-90804iBJ4#..LHD198008-198205

main78180-90805iHJ47..RHD198205-198506

main78180-90806iHJ47..LHD198205-198410

main78180-90807iBJ4#..RHD198205-198410

main78180-90808iBJ4#..LHD198205-198410

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78104-90302iBJ4#,HJ47..LHD198008-198410

main78181-60030iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

main78181-90304iFJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198604

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78184-60010iFJ4#..RHD;FJ40..TPC..5F198008-198506

main78441-90300iFJ4#..RHD;FJ40..TPC..5F198008-198506

W/THROTTLE ROD

main78441-90303iBJ4#,HJ47..LHD198008-198410

main78441-90351iFJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F198008-198604

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iBJ4#,FJ4#,HJ47198008-198604

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78183-90A00iBJ4#198008-198410

78410CABLE ASSY, THROTTLE CONTROL

main78410-90302iBJ42,FJ40,45,HJ47..ARL198008-198410

sub78410-90800

main78410-90800iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

78410BRING, THROTTLE

main78311-90351iBJ4#,FJ4#,HJ47198008-198604

78410DNUT, THROTTLE

main90170-11002iBJ4#,FJ4#,HJ47198008-198604

78429BRACKET, THROTTLE ROD

main78442-90301iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198604

main78442-90302iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

78501BUTTON SUB-ASSY, STOP

main78501-90800iBJ4#,HJ47..GEN198008-198110

sub78501-36030

78504WIRE SUB-ASSY, STOP FLEXIBLE

main78504-90304iBJ4#..GEN198008-198110

main78504-90305iHJ47..GEN198008-198110

78510CABLE ASSY, STOP

main78510-90800iHJ47..GEN198110-198506

main78510-90801iBJ4#..GEN198110-198410

9017906011

main90179-06011

9017920005

main90179-20005

9020208028

main90202-08028

9020210036

main90202-10036

9046110236

main90461-10236

9046110281

main90461-10281

9046110348

main90461-10348

9046110534

main90461-10534

9046308295

main90463-08295

9046400107

main90464-00107

9046400174

main90464-00174

9046816012

main90468-16012

9165140612

main91651-40612

9165140616

main91651-40616

9165140620

main91651-40620

9165140816

main91651-40816

9321915014

main93219-15014

9411540500

main94115-40500

9461111200

main94611-11200

9461210800

main94612-10800

35 parts on this diagram · 4 diagrams in section
