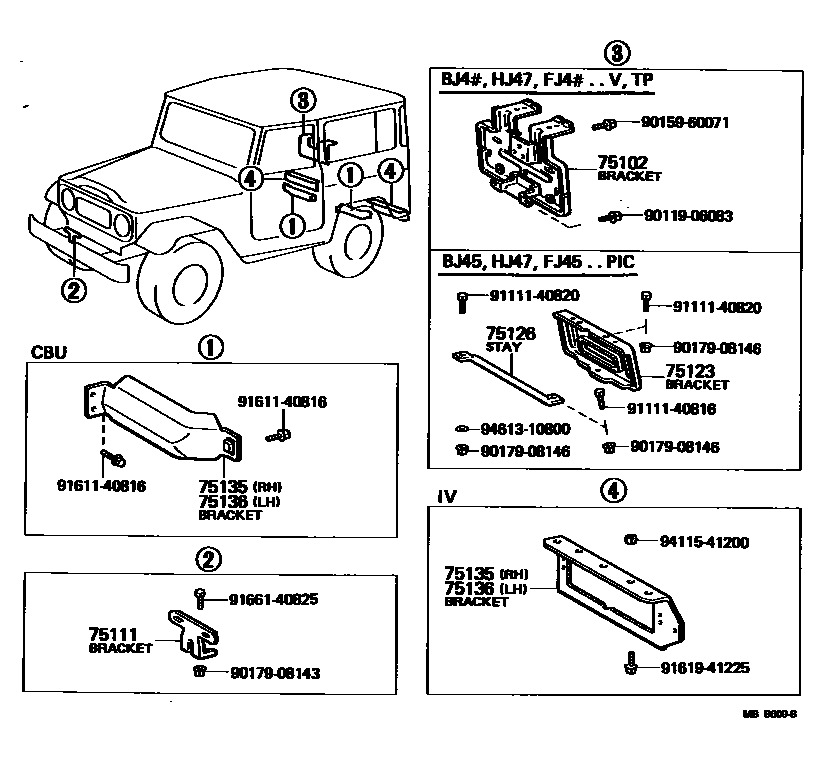

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-90302iBJ42,46,FJ40..TPC..EUR198008-198410

LARGE LICENSE PLATE

main75102-90303iBJ4#,FJ4#,HJ47..TP,V198008-198510

main75102-90304iBJ46..TPS198008-198410

LARGE LICENSE PLATE

75111BRACKET, FRONT LICENSE PLATE

main75101-60011iBJ4#,FJ4#,HJ47198008-198604

main75101-60020iBJ4#,FJ4#,HJ47..ARL,GEN198110-198604

W/MECHANICAL WINCH,FOG LAMP

main75101-60020iBJ4#,FJ4#,HJ47..4F198008-198110

W/MECHANICAL WINCH

75123BRACKET, LICENSE PLATE

main75121-60010iBJ45,FJ45,HJ47..PIC198008-198604

main75121-60030iBJ45,FJ45,HJ47..LHD..PIC..GEN..CBU198210-198410

W/STEP BUMPER

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main75126-60023iBJ45,FJ45,HJ47..PIC..(ARL,GEN)198008-198604

main75126-60030iBJ45,FJ45,HJ47..LHD..PIC..GEN..CBU198210-198410

W/STEP BUMPER

main75126-60030iBJ45,FJ45,HJ47..LHD..PIC198008-198604

POSITION OF LICENSE PLATE LH

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-60011iBJ45,FJ45,HJ47..IV198008-198604

main75136-60020iBJ43,45,46,FJ43,45..TP,V198008-198510

main75136-60040iBJ40,42,FJ40198008-198510

75136BRACKET, COMBINATION REAR LAMP, LH

main75136-60020iBJ43,45,46,FJ43,45..TP,V198008-198510

main75136-60030iBJ45,FJ45,HJ47..IV198008-198604

main75138-60020iBJ40,42,FJ40198008-198510

9011906083

main90119-06083

9015960071

main90159-60071

9017908143

main90179-08143

9017908146

main90179-08146

9111140816

main91111-40816

9111140820

main91111-40820

9161140816

main91611-40816

9161941225

main91619-41225

9166140825

main91661-40825

9411541200

main94115-41200

9461310800

main94613-10800

17 parts on this diagram · 2 diagrams in section
