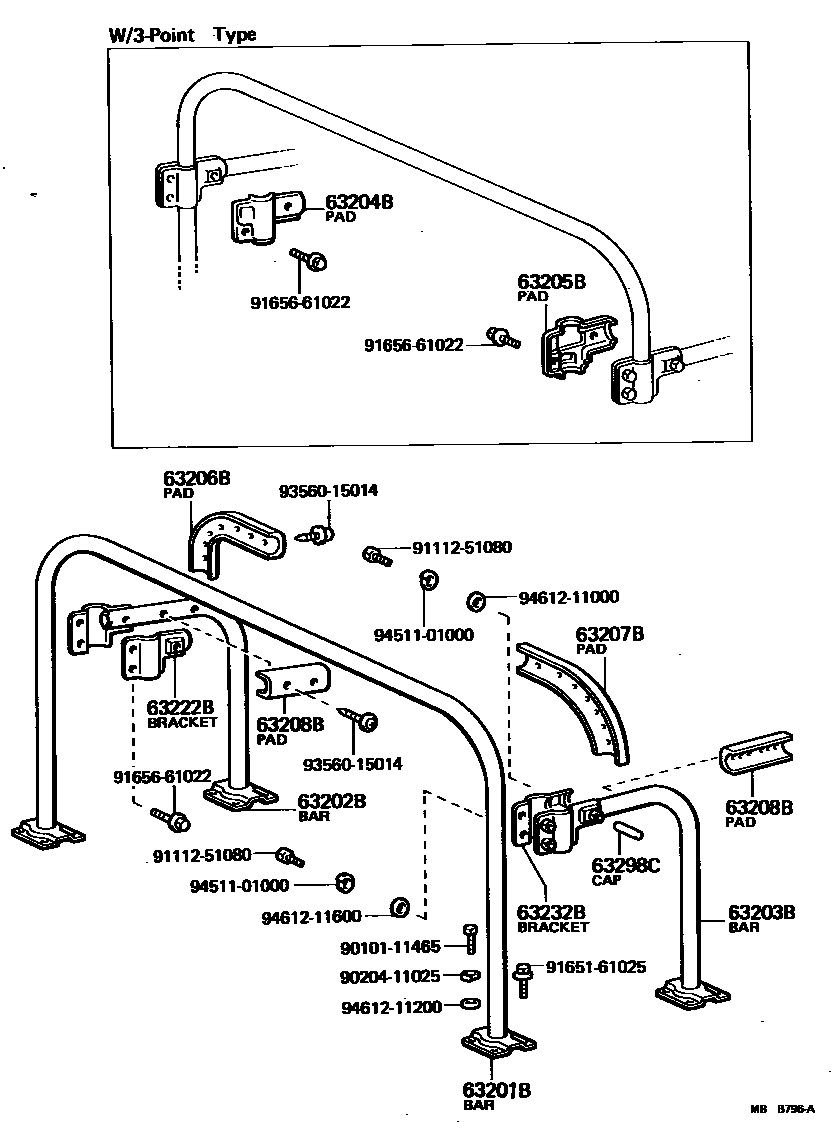

PROTECTOR PIPE, ROLL BAR & HANDRAIL

63201BBAR, ROLL, FRONT

main63201-90303iBJ40,42,43,46,FJ40,43..RB..GEN198008-198210

sub63201-90304

main63201-90304iBJ40,42,43,46,FJ4#..RB198008-198410

W/*ELR

main63201-90304iBJ40,42,FJ40..V..GEN198403-198510

63202BBAR, ROLL SIDE, RH

main63202-90305iBJ40,42,FJ40..RB..GEN198008-198210

sub63202-90307

main63202-90306iBJ43,46,FJ43..RB..GEN198008-198210

main63202-90307iBJ40,42,FJ40..V..GEN198403-198510

main63202-90307iBJ40,42,FJ40,45..RB198008-198410

W/*ELR

main63202-90308iBJ43,46,FJ43..RB198008-198410

W/*ELR

63203BBAR, ROLL SIDE, LH

main63203-90305iBJ40,42,FJ40..RB..GEN198008-198210

sub63203-90307

main63203-90306iBJ43,46,FJ43..RB..GEN198008-198210

main63203-90307iBJ40,42,FJ40..V..GEN198403-198510

main63203-90307iBJ40,42,FJ40,45..RB198008-198410

W/*ELR

main63203-90308iBJ43,46,FJ43..RB198008-198410

W/*ELR

63204BPAD, ROLL BAR BRACKET, RH

main63204-90300iBJ40,42,43,46,FJ40,43..RB198008-198410

W/*ELR

main63204-90300iBJ40,42,FJ40..V..GEN198403-198510

63205BPAD, ROLL BAR BRACKET, LH

main63205-90300iBJ40,42,FJ40..V..GEN198403-198510

main63205-90300iBJ40,42,43,46,FJ40,43..RB198008-198410

W/*ELR

63206BPAD, ROLL BAR, FRONT RH

main63206-90300iBJ40,42,43,46,FJ4#..RB198008-198510

63207BPAD, ROLL BAR, FRONT LH

main63207-90300iBJ40,42,43,46,FJ4#..RB198008-198510

63208BPAD, ROLL BAR, SIDE

main63208-90300iBJ40,42,43,46,FJ4#..RB198008-198510

63222BBRACKET, ROLL BAR, INNER RH

main63222-90302iBJ40,42,43,46,FJ40,43..RB..GEN198008-198210

sub63222-90303

main63222-90303iBJ40,42,43,46,FJ4#..RB198008-198410

W/*ELR

main63222-90303iBJ40,42,FJ40..V..GEN198403-198510

63232BBRACKET, ROLL BAR, INNER LH

main63232-90302iBJ40,42,43,46,FJ40,43..RB..GEN198008-198210

sub63232-90303

main63232-90303iBJ40,42,43,46,FJ4#..RB198008-198410

W/*ELR

main63232-90303iBJ40,42,FJ40..V..GEN198403-198510

63298CCAP(FOR ROLL BAR)

main55298-30010iBJ40,42,43,46,FJ40,43..RB..GEN198008-198510

main55298-30010iBJ40,42,43,46,FJ4#..RB198008-198410

W/*ELR

9010111465

main90101-11465

9020411025

main90204-11025

9111251080

main91112-51080

9165161025

main91651-61025

9165661022

main91656-61022

9356015014

main93560-15014

9451101000

main94511-01000

9461211000

main94612-11000

9461211200

main94612-11200

9461211600

main94612-11600

21 parts on this diagram · 1 diagram in section
